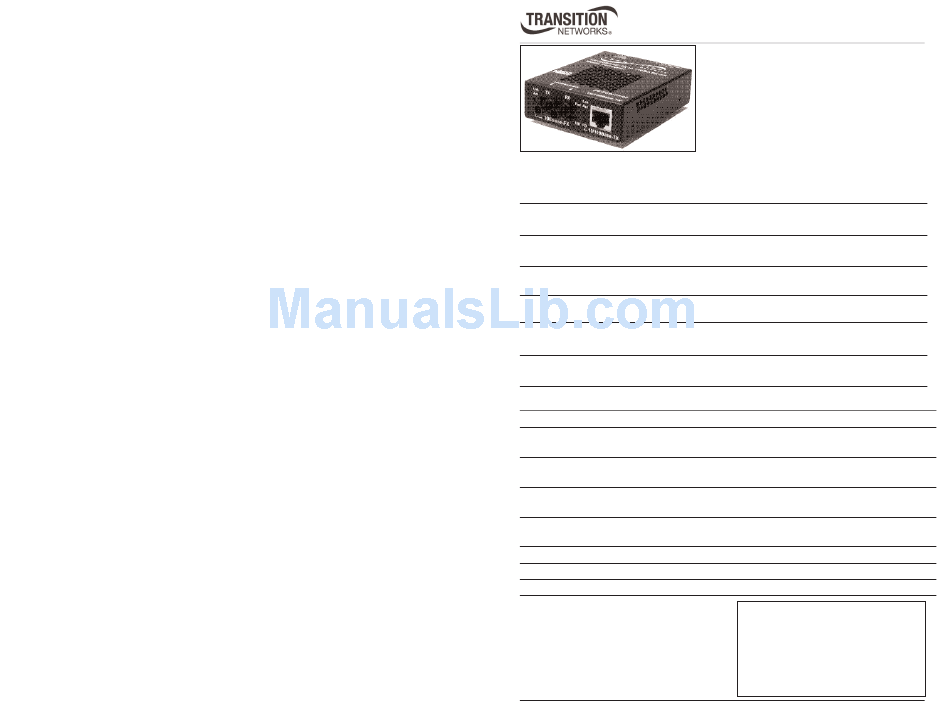

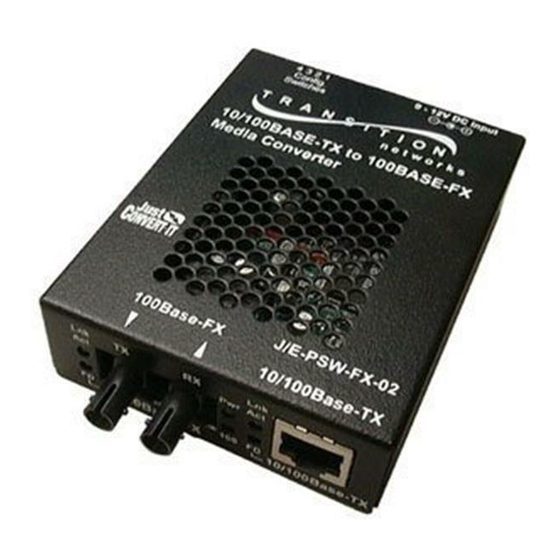

The J/E-PSW-FX-02 Ethernet/Fast Ethernet 2-port bridging media converter
connects 10Base-T Ethernet or 100Base-TX Fast Ethernet twisted-pair copper
network devices to network devices on a 100Base-FX Fast Ethernet fiber network.
Part Number
Port One - Copper
10Base-T/100Base-TX
J/E-PSW-FX-02
RJ-45
100 m (328 ft)*
J/E-PSW-FX-02(SC)
RJ-45
100 m (328 ft)*
J/E-PSW-FX-02(SM)
RJ-45
100 m (328 ft)*
J/E-PSW-FX-02-100
RJ-45
100 m (328 ft)*
J/E-PSW-FX-02-101
RJ-45
100 m (328 ft)*
Optional Accessories (sold separately)
Part Number Description
SPS-1872-SA Optional External Power Supply; 18-72VDC Stand-Alone;
Output: 12.6VDC, 1.0 A
SPS-1872-CC Optional External Power Supply; 18-72VDC Piggy-back;
Output: 12.6VDC, 1.0 A
E-MCR-04
12-Slot Media Converter Rack (includes universal internal power
supply) 17 x 15 x 5 in. (432 x 381 x 127 mm)
WMBS
Optional Wall Mount Brackets
Length: 3.2 in. (81 mm), Fits converter length: 3.9 in. (99 mm)
WMBV
Optional Vertical Mount Bracket; Length: 5.0 in. (127 mm)
WMBD
Optional DIN Rail Mount Bracket; Length: 5.0 in. (127 mm)
WMBD-FS
Optional DIN Rail Mount Bracket (flat, small); Length: 3.1in. (79 mm)
* Typical maximum cable distance. Actual
distance is dependent upon the physical
characteristics of the network.
** Single Fiber, install in pairs.
User's Guide
J/E-PSW-FX-02
Stand-Alone Media Converter
• Just Convert-IT
• 10/100 Bridging (2-Port)
• 10Base-T/100Base-TX to 100Base-FX
Port Two - Duplex Fiber-Optic
100Base-FX
ST, 1300 nm multimode
2 km (1.2 miles)
SC, 1300 nm multimode
2 km (1.2 miles)
SC, 1310 nm single mode
20 km (12.4 miles)
SC, 1310 nm TX/1550 nm RX
SM, 20 km(12.4 miles)**
SC, 1550 nm TX/1310 nm RX
SM, 20 km (12.4 miles)**
Installation . . . . . . . . . . . . . . . . . .2
Operation . . . . . . . . . . . . . . . . . . .5
Cable Specifications . . . . . . . . . . .8
Technical Specifications . . . . . . . .9
Troubleshooting . . . . . . . . . . . . .10
Contact Us . . . . . . . . . . . . . . . . .11
Compliance Information . . . . . . .12
