Transition Networks

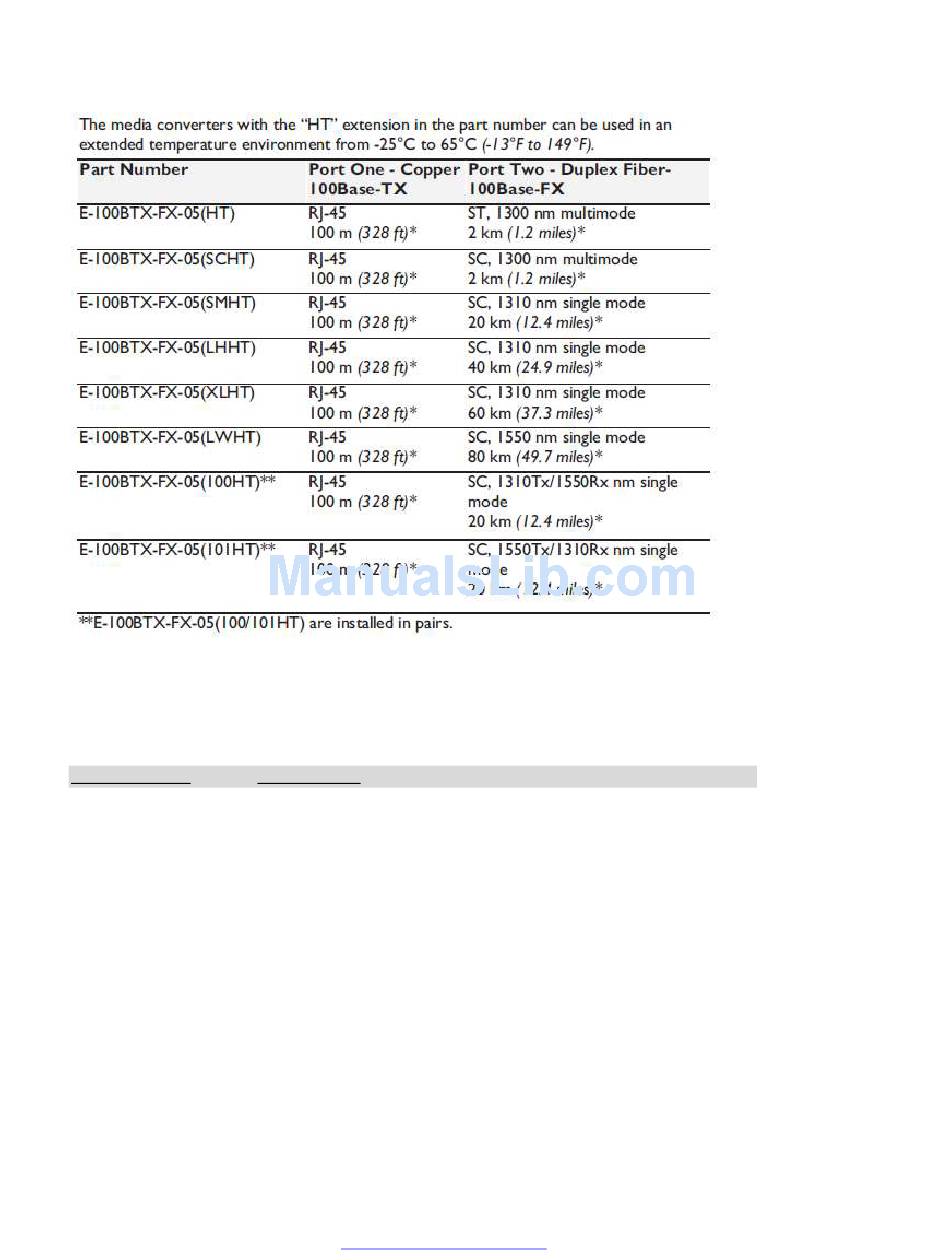

Extended Temperature Models
Accessories
Accessories are sold separately.
Part Number
SPS-2460-SA
SPS-2460-CC
E-MCR-05
WMBL
WMBV
WMBD
WMBD-FS
33210 Rev. R
Description
Optional External Power Supply; 24-60 VDC and 24-42 VRMS
Stand-Alone Wide-Input; Output: 12.25 VDC, 1.0 A
Optional External Power Supply; 24-60 VDC and 24-42 VRMS Piggy-Back
Wide-Input; Output: 12.25 VDC, 1.0 A
12-Slot Media Converter Rack (includes universal internal power supply)
17 x 15 x 5 in. (432 x 381 x 127 mm)
Optional Wall Mount Brackets; 4.0 in. (102 mm)
Optional Vertical Mount Bracket; 5.0 in. (127 mm)
Optional DIN Rail Mount Bracket; 5.0 in. (127 mm)
Optional DIN Rail Mount Bracket (flat, small); 3.1in. (79 mm)
http://www.transition.com/
E-100BTX-FX-05 User Guide
Page 3 of 17
