Transition Networks
E-100BTX-FX-05 User Guide
AutoCross Jumpers
The AutoCross feature allows either straight-through (MDI) or crossover (MDI-X) cables to be used when
connecting to devices such as hubs, transceivers, or network interface cards (NICs). AutoCross
determines the characteristics of the cable connection and automatically configures the unit to link up,
regardless of the cable configuration.

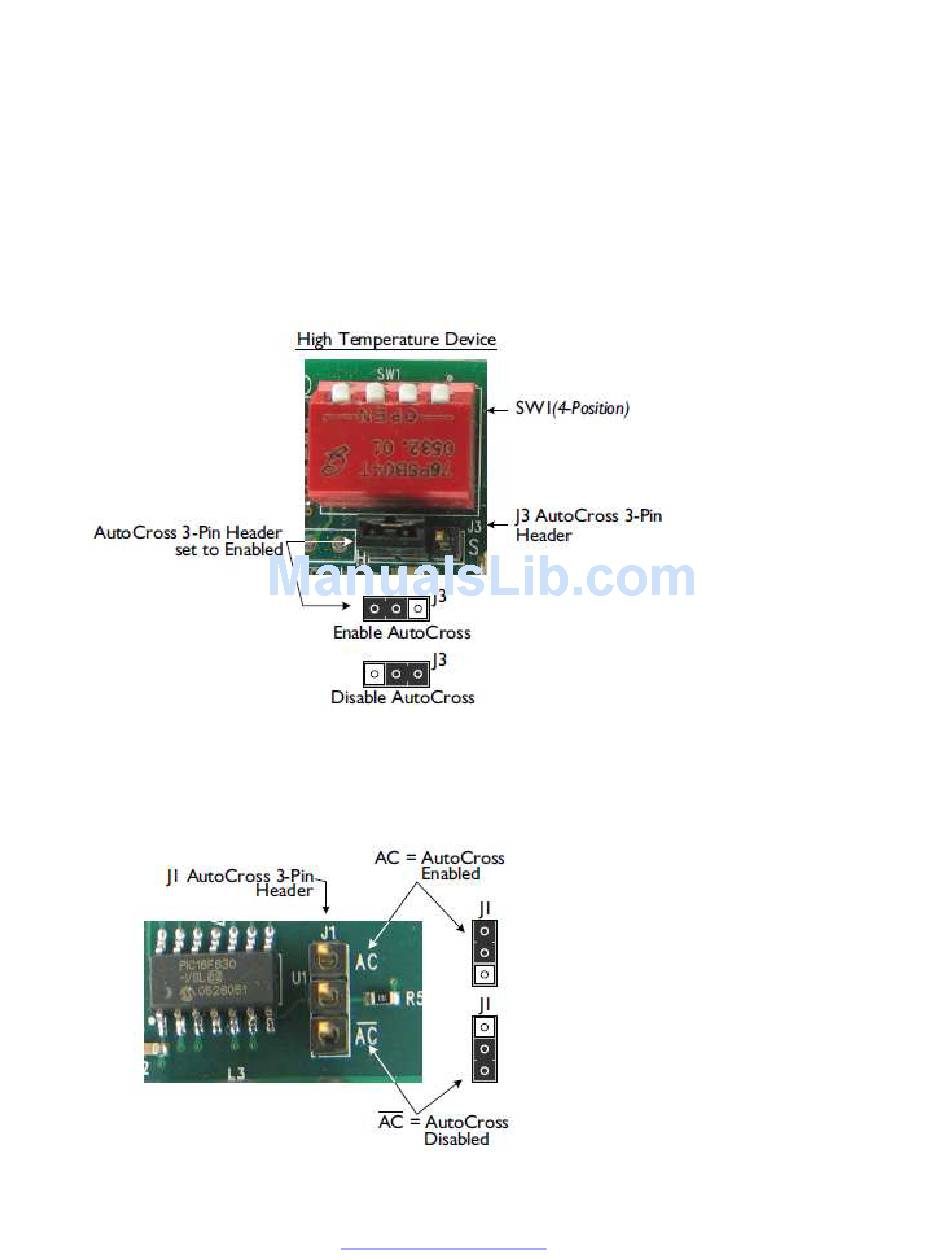

High Temperature Board, J3, 3-Pin Header Settings
1. Orient the board as shown below.
2. Position the jumper as shown below.
Standard Temperature Board, J1, 3-Pin Header Settings
1. Orient the board as shown below.
2. Position the jumper as shown below.
