Transition Networks MEDIA CONVERTERS E-100BTX-FRL-01 User Manual

MEDIA CONVERTER TECHNICAL SPECIFICATIONS
Standards
IEEE 802.3
Case dimensions
3.9" x 3.0" x 1.0"
Environment
Temperature:
Humidity
Altitude
Warranty
Five years
Power Supply Requirements
Replace power supply with only the equivalent input
rating (see below) and output rating (regulated 9VDC at 0.5 A).
TN PN Requirement
3517 240 volts, 50 hertz
3516 230 volts, 50 hertz
3518 120 volts, 60 hertz
3514 100 volts, 50-60 hertz
3515 240 volts, 50 hertz
CAUTION: RJ connectors are NOT INTENDED FOR CONNECTION TO THE
PUBLIC TELEPHONE NETWORK. Failure to observe this caution could result in
damage to the public telephone network.
Der Anschluss dieses Gerätes an ein öffentlickes Telekommunikationsnetz in den EG-Mitgliedstaaten
verstösst gegen die jeweligen einzelstaatlichen Gesetze zur Anwendung der Richtlinie 91/263/EWG zur
Angleichung der Rechtsvorschriften der Mitgliedstaaten über Telekommunikationsendeinrichtungen
einschliesslich der gegenseitigen Anerkennung ihrer Konformität.
Compliance Information
UL Listed
C-UL Listed (Canada)
CISPR/EN55022 Class A
FCC Regulations
This equipment has been tested and found to comply with the limits for a class A digital device, pursuant
to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio communications. Operation of this
equipment in a residential area is likely to cause harmful interference, in which case the user will be
required to correct the interference at the user's own expense.
Canadian Regulations
This digital apparatus does not exceed the Class A limits for radio noise for digital apparatus set out on
the radio interference regulations of the Canadian Department of Communications.
European Regulations
Warning
This is a Class A product. In a domestic environment this product may cause radio interference in which
case the user may be required to take adequate measures.
Copyright Restrictions
© 1996, 1997 TRANSITION Networks.
All rights reserved. No part of this work may be reproduced or used in any form or by any means –
graphic, electronic, or mechanical – without written permission from TRANSITION Networks.
Trademark Notice
All registered trademarks and trademarks are the property of their respective owners.
(99mm x 76mm x 25mm)
0-40°C (32° to 104° F )
10-90%, non condensing
0-10,000 feet
Location
United Kingdom
Europe
USA/Canada/Mexico
Japan
Australia
33009.C
100BASE-TX/100BASE-FX
E-100BTX-FRL-01, E-100BTX-FRL-01(SC), E-100BTX-FRL-01(SM)
USER'S GUIDE

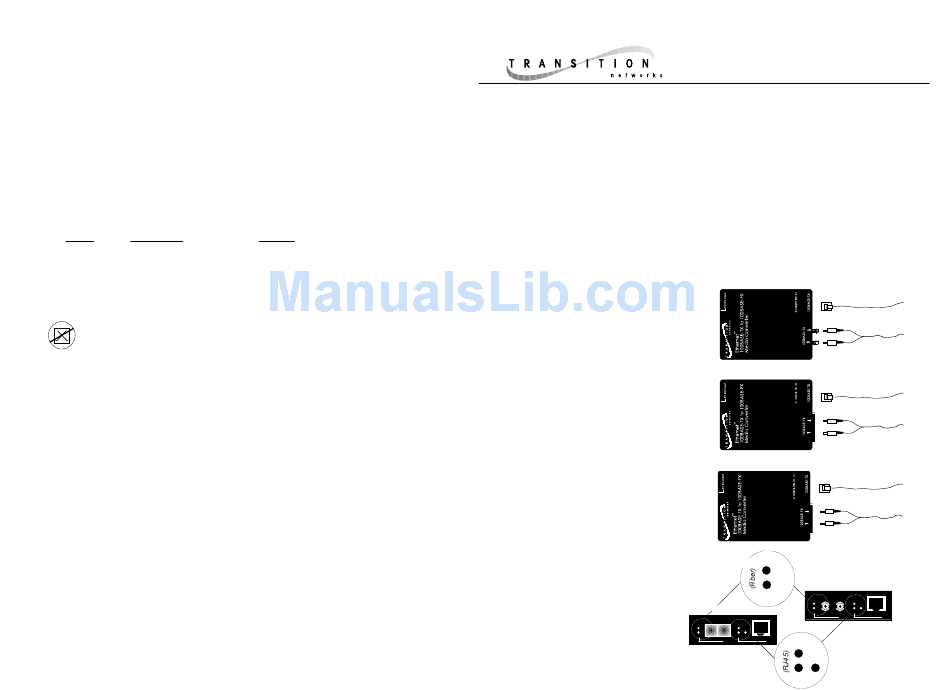

The TRANSITION Networks Ethernet™ 100BASE-TX to 100BASE-FX media
converters connect 100BASE-TX unshielded twisted pair cable to 100BASE-FX
multimode or singlemode fiber-optic cable. Media converter models are selected
according to the fiber mode and fiber connector required at the site. Multimode
fiber-optic cable can use either an ST connector (E-100BTX-FRL-01) or an SC
connector (E-100BTX-FRL-01(SC)). Singlemode fiber (E-100BTX-FRL-01(SM)) uses
only an SC connector. All media converters function in half-duplex mode or, when
connected to devices capable of full-duplex connectivity, in full-duplex mode.
E-100BTX-FRL-01
Provides an RJ-45 unshielded twisted
pair 100BASE-TX connector and a set
of RX (receive) and TX (transmit) ST
100BASE-FX connectors to multimode
fiber-optic cable.
E-100BTX-FRL-01(SC)
Provides an RJ-45 unshielded twisted
pair 100BASE-TX connector and an
RX (receive) and TX (transmit) SC
100BASE-FX connector to multimode
fiber-optic cable.
E-100BTX-FRL-01(SM)
Provides an RJ-45 unshielded twisted
pair 100BASE-TX connector and an
RX (receive) and TX (transmit) SC
100BASE-FX connector to singlemode
fiber-optic cable.
Status LEDs on the connector side of the media
converters provide the following information:
Pwr (Power) Illuminated green LED
indicates connection to external
AC power.
RX (Receive) Flashing green LED
indicates port is receiving
data.
Link Steady green LED indicates port is
receiving link signal.
Minneapolis, MN 55344 USA
Media Converters
UTP
Multimode Fiber
E-100BTX-FRL-01
UTP
Multimode Fiber
E-100BTX-FRL-01(SC)
UTP
Singlemode Fiber
E-100BTX-FRL-01(SM)
Link
ST Connectors
RX
TX RX
Link Link
Pwr
RJ-45 Connector
RX RX
10BASE-FL 10BASE-T
TX RX
Link Link RJ-45 Connector
Pwr
RX
RX
10BASE-FL 10BASE-T 10BASE-T
Link
SC Connectors
Pwr
RX
