The E-100BTX-FX-05 series of Media Converters include both standard
temperature and extended temperature models. (Part numbers for the extended
temperature models are listed on page 2.)
Standard Temperature Models:
Part Number
Port One - Copper
100Base-TX
E-100BTX-FX-05
RJ-45
100 m (328 ft)*
E-100BTX-FX-05(SC)
RJ-45
100 m (328 ft)*
E-100BTX-FX-05(MT)
RJ-45
100 m (328 ft)*
E-100BTX-FX-05(SM)
RJ-45
100 m (328 ft)*
E-100BTX-FX-05(SMLC)
RJ-45
100 m (328 ft)*
E-100BTX-FX-05(LH)
RJ-45
100 m (328 ft)*
E-100BTX-FX-05(XL)
RJ-45
100 m (328 ft)*
E-100BTX-FX-05(LW)
RJ-45
100 m (328 ft)*
* Typical maximum cable distance. (Actual distance is dependent upon the physical
characteristics of the network installation.)
USER'S GUIDE
E-100BTX-FX-05
Stand-Alone Media Converter
• Fast Ethernet™
• Copper to Fiber
• 100Base-TX to 100Base-FX
• Extended Temperature

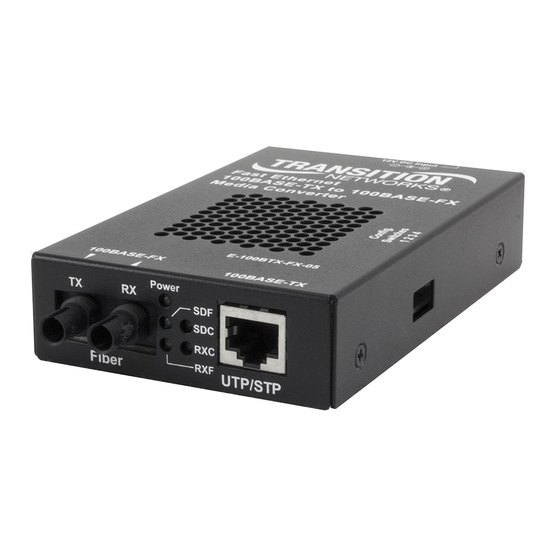

Transition Networks E-100BTX-FX-05
Fast Ethernet™ Media Converter
connects 100Base-TX shielded or
unshielded twisted-pair copper cable to
100Base-FX fiber-optic cable.
Port Two - Duplex Fiber-Optic
100Base-FX
ST, 1300 nm multimode
2 km (1.2 miles)*
SC, 1300 nm multimode
2 km (1.2 miles)*
MT-RJ, 1300 nm multimode
2 km (1.2 miles)*
SC, 1310 nm singlemode
20 km (12.4 miles)*
LC, 1310 nm singlemode
20 km (12.4 miles)*
SC, 1310 nm singlemode
40 km (24.9 miles)*
SC, 1310 nm singlemode
60 km (37.3 miles)*
SC, 1550 nm singlemode
80 km (49.7 miles)*
Installation . . . . . . . . . . . . . . . . . .3
Operation . . . . . . . . . . . . . . . . . . .5
Cable Specifications . . . . . . . . . . .7
Technical Specifications . . . . . . . .9
Fault Isolation and Correction . .10
Contact Us . . . . . . . . . . . . . . . . .11
Compliance Information . . . . . . .12

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the E-100BTX-FX-05 and is the answer not in the manual?

Questions and answers

Related Manuals for Transition Networks E-100BTX-FX-05

Summary of Contents for Transition Networks E-100BTX-FX-05

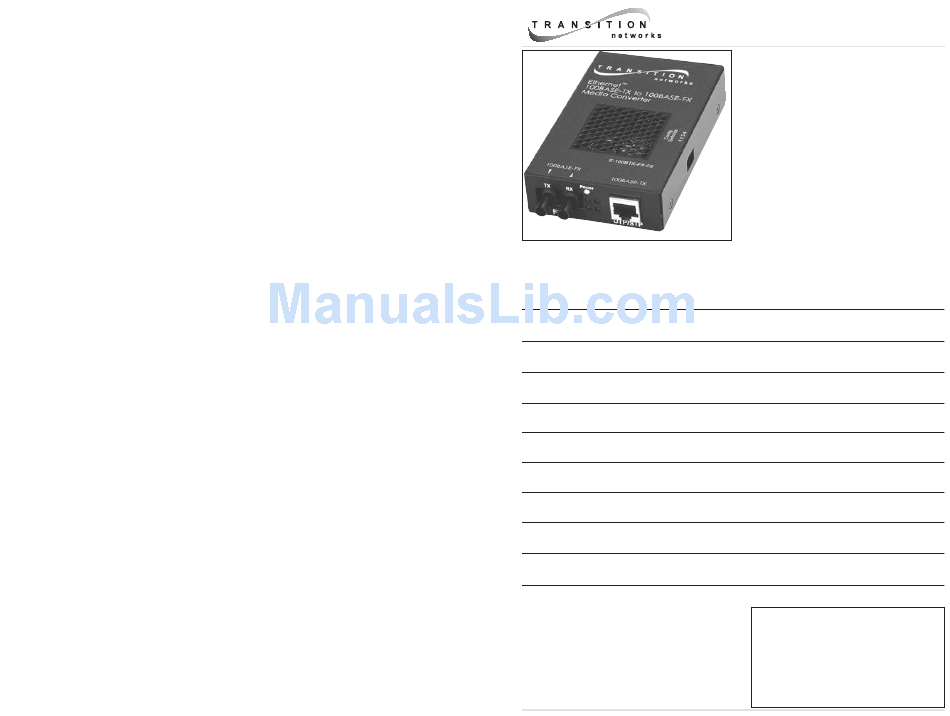

  • Page 1 100Base-TX shielded or unshielded twisted-pair copper cable to 100Base-FX fiber-optic cable. The E-100BTX-FX-05 series of Media Converters include both standard temperature and extended temperature models. (Part numbers for the extended temperature models are listed on page 2.) Standard Temperature Models:...

  • Page 2: Installation

    E-100BTX-FX-05 The Media Converters with the “HT” extension in the part number can be put into INSTALLATION service in an extended termperature environment from -25°C to 65°C (-13°F to 149°F). CAUTION: Wear a grounding device and observe electrostatic discharge Standard Temperature Models: precautions when setting the 4-position switch and jumper.

  • Page 3: Operation

    • Connect the male RX cable connector to the female RX port. Consult the User’s Guide for the Transition Networks SPS1872-xx DC External Power Suppy for powering the Media Converter. Connect the fiber cables to the other device (another Media Converter, hub, etc.) as described:...

  • Page 4: Cable Specifications

    E-100BTX-FX-05 OPERATION CABLE SPECIFICATIONS -- Continued Pause Control Frame The physical characteristics must meet or exceed IEEE 802.3™ specifications. Fiber Cable The Pause Control Frame feature can improve network performance by allowing one end of the link to signal the other to discontinue frame Bit Error Rate: <10-9...

  • Page 5: Extended Temperature Models

    Fiber-optic Receiver Sensitivity: min: -31.0 dBm max: -8.0 dBm TECHNICAL SPECIFICATIONS Link Budget: 16.0 dB For use with Transition Networks Model E-100BTX-FX-05(xxxx) or equivalent E-100BTX-FX-05(LHHT) 1310 nm singlemode Fiber-optic Transmitter Power: min: -8.0 dBm max: -2.0 dBm Product is certified by the manufacturer to comply with DHHS Rule 21/CFR, Subchapter J Fiber-optic Receiver Sensitivity: min: -34.0 dBm...

  • Page 6: Fault Isolation And Correction

    EMC Directive 89/336/EEC • If there is activity on the fiber port, disconnect and reconnect the Purpose: To declare that the E-100BTX-FX-05 to which this declaration refers is in fiber cable to restart the initialization process. conformity with the following standards.

  • Page 7: Compliance Information

    All trademarks and registered trademarks are the property of their respective owners. Copyright Restrictions © 2003 Transition Networks. All rights reserved. No part of this work may be reproduced or used in any form or by any means - graphic, electronic, or mechanical - without written permission from Transition Networks.
