4.2.8 Valve Assy (Including Ink Tube Assy)

Take due care not to stain any surrounding objects with ink.
C A U T I O N
The ink tubes are very delicate. Take due care not to bend or
whiten them by applying undue force.
1. Remove the Middle Housing. (p.88)
2. Remove the Printhead. (p.92)
3. Remove the screw, disengage the hook and remove the Tube Stopper.
(See Figure 4-23)
4. Disengage the hooks (x5) of the Right and Left I/C Holder Assy from the printer
frame.
5. Unhook and remove the Spacer to release the Joint Clamp and disconnect the ink tubes
from the Left I/C Holder.
6. Disconnect the Ink Tube Assy from the Right I/C Holder.
7. Remove the Tube Guide Ground Plate.
C A U T I O N The Joint Clamp, Spacer, Ink Joints (Black) x3, and Pressure
Tube (White) are likely to be damaged once they are removed.
Therefore, do not reuse them, but be sure to replace them with new
ones.
Spacer
(Continued to next page)
Disassembly and Assembly
Ink Joint (Black)x3
Joint Clamp
Pressure Tube (White)
Removal of Exterior Parts
Tube Stopper
Shank
(right and left)
Remove the Spacer and
detach the Tube Joints

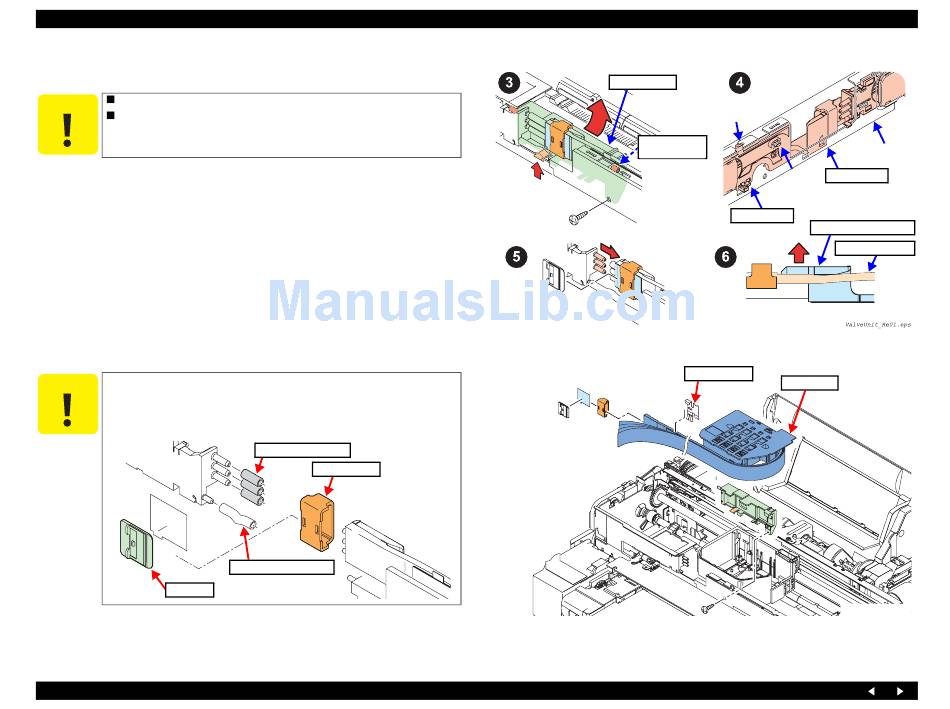

Figure 4-23. Disconnecting the Tubes
Figure 4-24. Removing the Valve Assy
Revision A
~Rear Side~
Hooks (x2)
Hooks (x3)
Right I/C Holder Assy
Ink Tube Assy
Disconnect the tubes
Tube Stopper
Valve Assy
ValveUnit_Re02.eps
94
