4.2.1.3 Disassembly of Panel Assy

C A U T I O N
Take care not to scratch the surface of the LCD Panel when
performing disassembly and assembly with the LCD Assy
installed.
1. Remove the Panel Assy. (p.80)
2. Remove the screws (x6), and remove the Panel Shield Plate together with the Panel
Ground Plate.
3. Remove the screws (x2), and remove the Panel Board, Light Conduction Tubes, Right
Button and Left Button.
Make sure that the Panel Board are engaged with the hooks
(three) of the panel housing.
When installing the Panel Ground Plate, make sure that its
projection is fitted into the hole in the Panel Shield Plate.
Panel Ground Plate
Panel Ground Plate
Disassembly and Assembly
Hooks (three)
Removal of Exterior Parts
C.B.P-Tite 3x8 F/ZN-3C (x2)
Torque: 0.6 ± 0.1N
Panel Ground Plate
Panel Shield Plate
Right Button

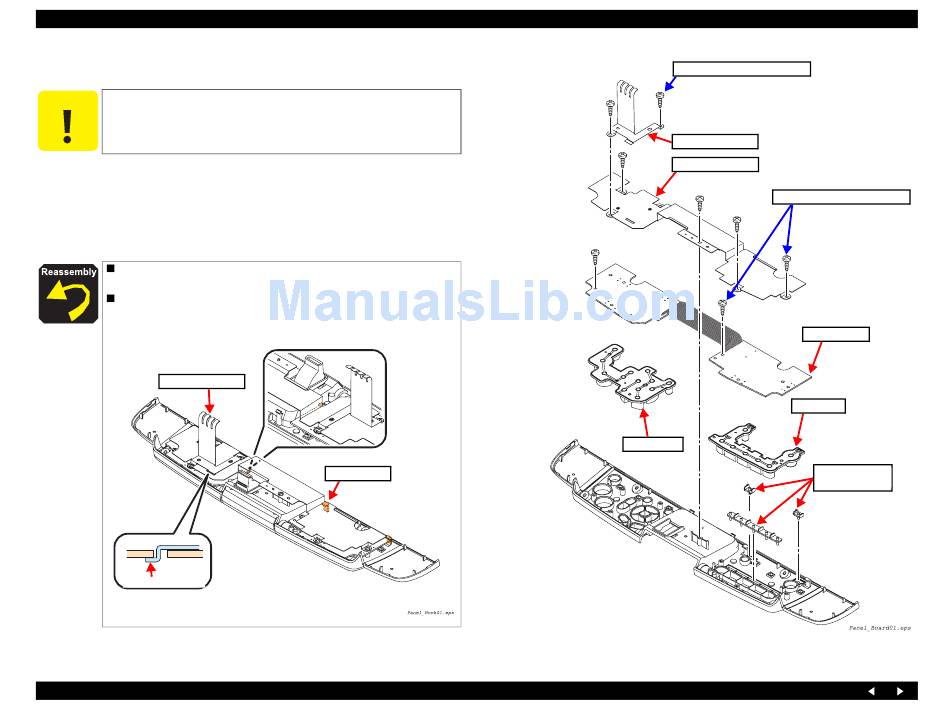

Figure 4-4. Disassembling the Panel Assy
Revision A
⋅
m
C.B.P-Tite 3x8 F/ZN-3C (x6)
⋅
Torque: 0.6 ± 0.1N m
Panel Board
Left Button
Light Conduction
Tubes
