4.4.3 Waste Ink Pads (I/C Holder Assy)

C A U T I O N
Take due care not to stain any surrounding objects with waste ink.
1. Remove the Middle Housing. (p.88)
2. Remove the I/C Holder Assy. (p.105)
3. Remove the right and left Waste Ink Pads.
A D J U S T M E N T
On the occasion of replacing the Waste Ink Pads with new ones as
R E Q U I R E D
required by a maintenance error, replace all the specified parts
with new ones and clear the counter value.
6.1.1 Maintenance Error (p.147)
Disassembly and Assembly Disassembly and Assembly of Major Parts of Printer

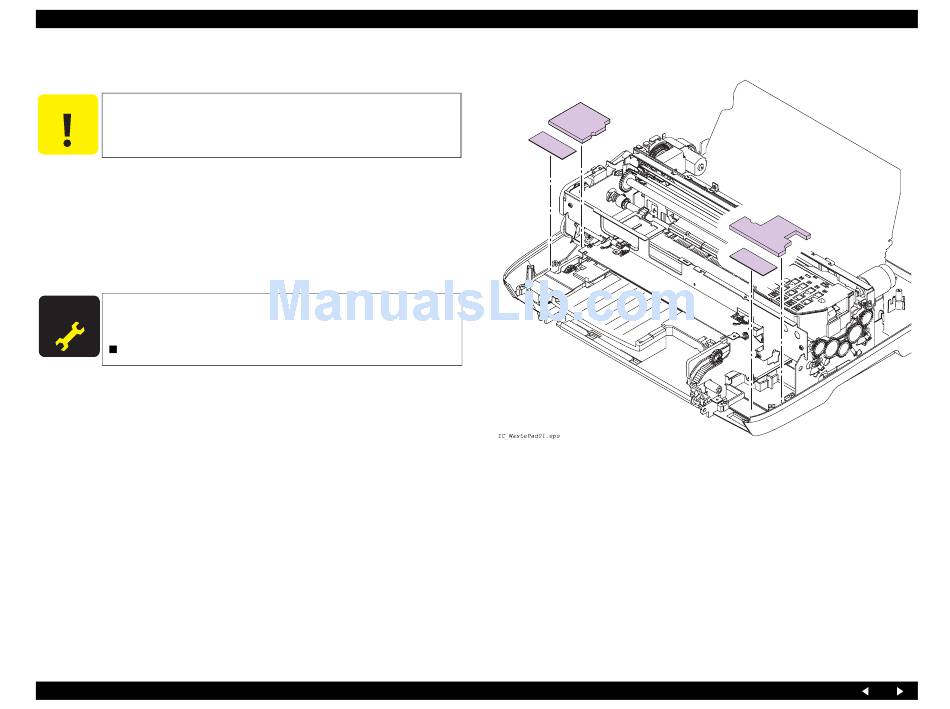

Figure 4-38. Waste Ink Pads
