3.3.7 Cutting the contour

1. Make the layer containing the contour lines visible and printable. Do the opposite with
the print data.
2. Make sure that the origin marker is also defined as a contour. This will be used as the
origin for the cutting.
3. Once you are using the cutting software, it may be necessary to collectively rotate the
contours and markers so that the Origin marker (1) is situated in the bottom left corner
of the cutting area (2) as viewed on the screen. If your cutting software's default
orientation is not set to "landscape," the contours and markers will need to be rotated.
1

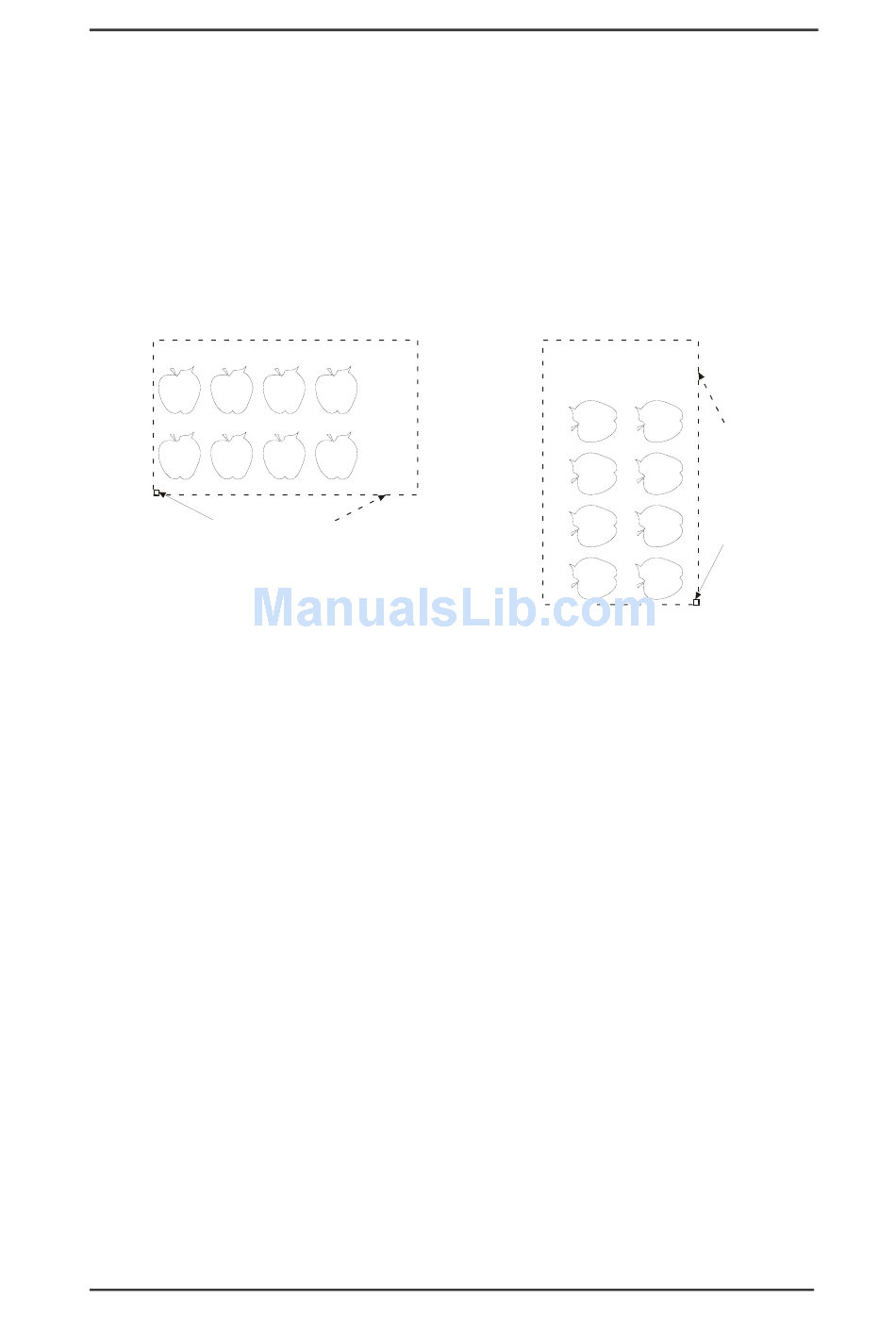

Orientation needed in most cutter software.
4. Make sure that the cutter is connected to the computer and that the cutter is switched
on. The cutter's touch screen should indicate that the cutter is ONLINE.
5. Click Cut from within the cutting software. The cutter should begin cutting the contour
and return to ONLINE status when finished.
Contour Cutting
2
User's Manual
Orientation when using WinPlot
2
