SummaCut cutter

1.2 SummaCut Cutter Components

1.2.1 The Cutter as viewed from the front

1. Pinch rollers: The pinch rollers clamp the media to the drive system to ensure accurate
tracking. The D120 has one and the D140 and D160 have two extra pinch rollers to
ensure that wide media stays flat in the middle. The extra rollers in the middle can be
enabled or disabled.
2. Keypad: All cutter activity can be initiated from keypad. The LCD displays information
about the cutter's current status and/or actions that need to be taken.
3. Pinch roller lever: This lever is used to raise and lower the pinch rollers for media
loading.
4. Media drive sleeves: The media drive sleeves move the media only when the pinch
rollers are in the "down" position. The Larger the model, the more small sleeves.
Setup

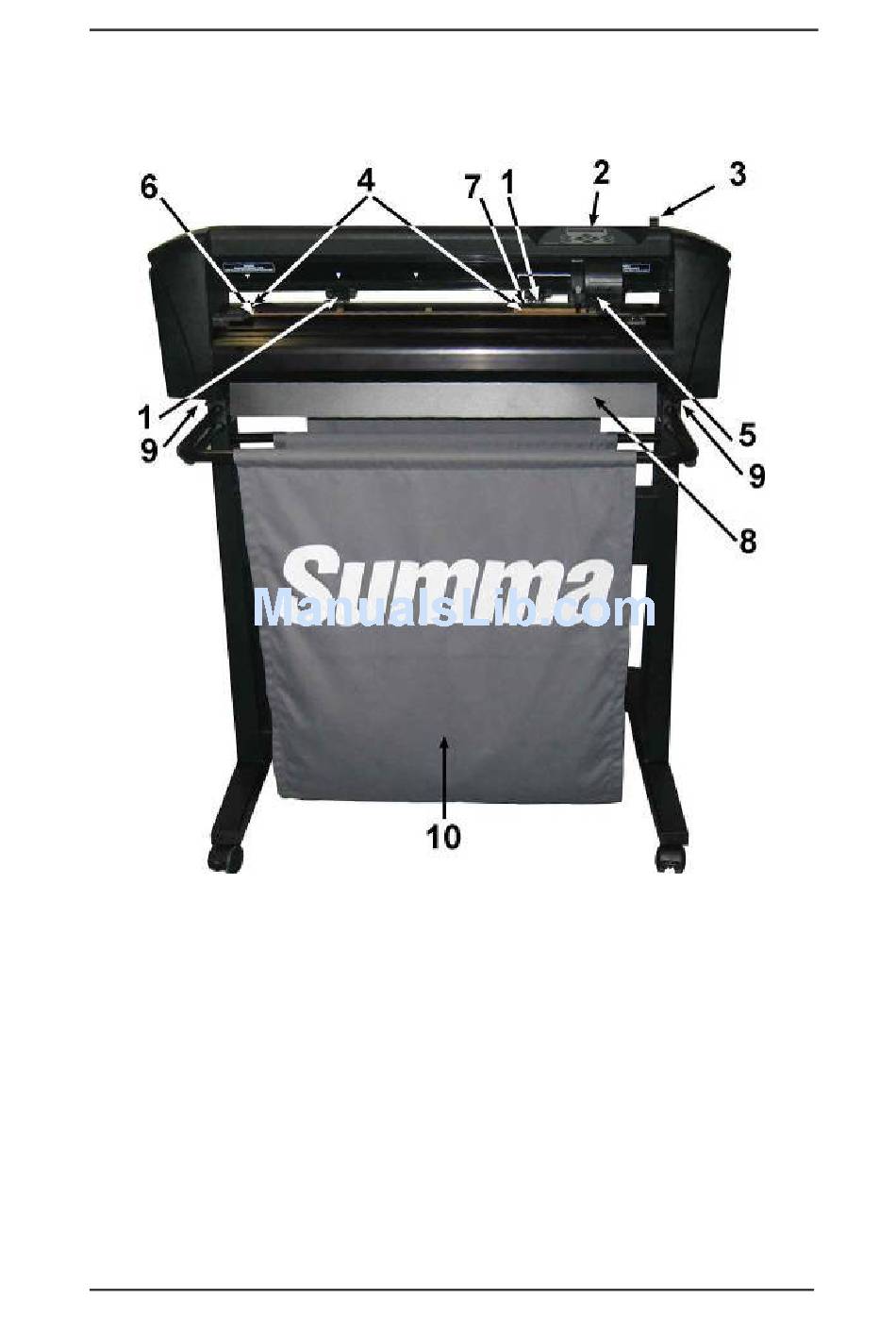

FIG 1-10
1-10

SUMMACUT CUTTER, FRONT VIEW

User's Manual
1-5
