SummaCut cutter

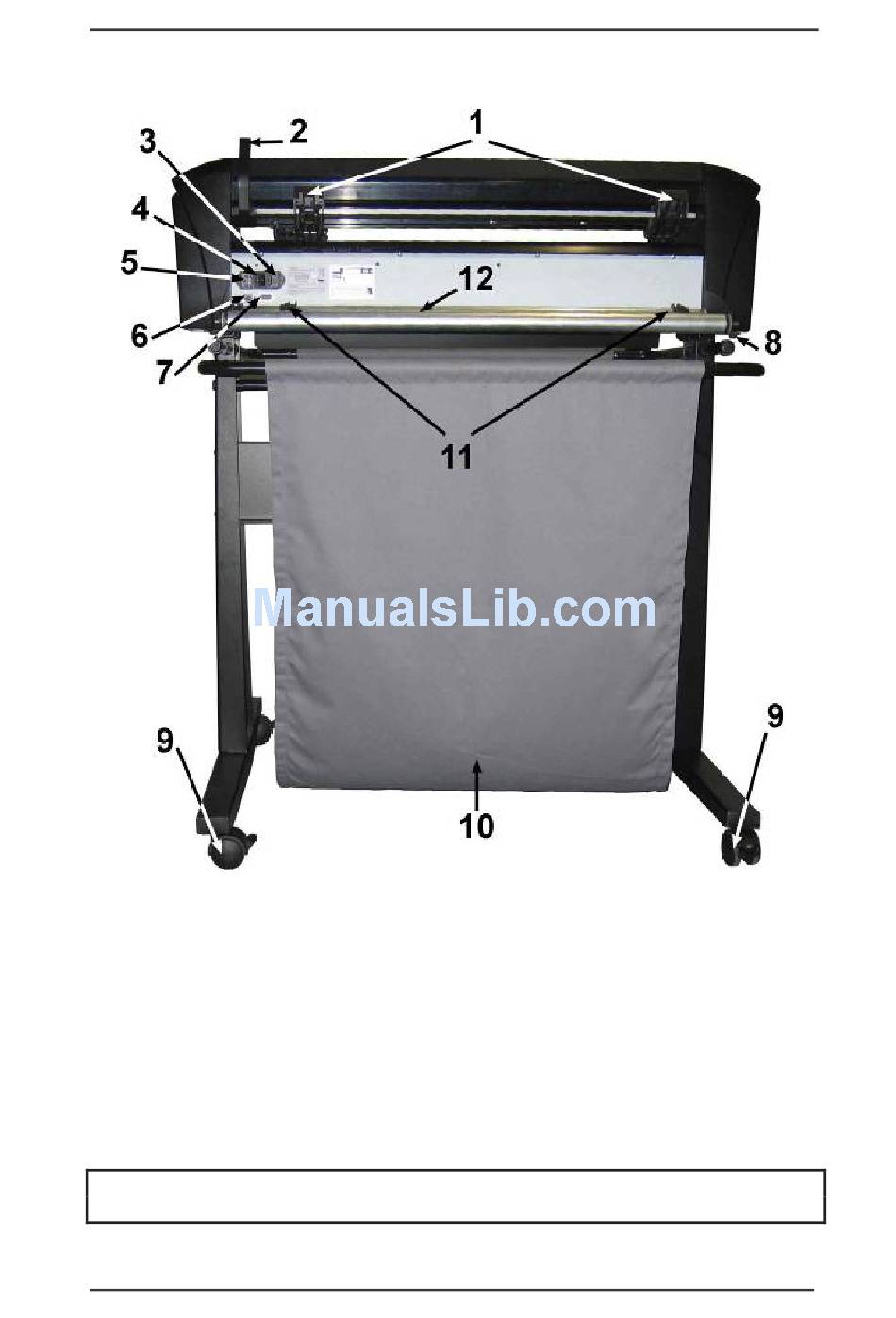

1.2.2 The Cutter as viewed from the back

1. Pinch rollers: The pinch rollers clamp the media to the drive system to ensure accurate
tracking. The D120 has one and the D140 and D160 have two extra pinch rollers to
ensure that wide media stays flat in the middle. The extra rollers in the middle can be
enabled or disabled.
2. Pinch roller lever: This lever is used to raise and lower the pinch rollers for media
loading.
3. The fuse box: The fuse is located at the right side of the power entry module. Check the
specification section to see which fuse is used in the SummaCut cutter.
CAUTION: For continued protection against risk of fire, replace only with the same type and
rating of fuse.
Setup
FIG 1-11
1-11

SUMMACUT CUTTER, REAR VIEW

User's Manual
1-7
