SummaCut cutter
4. Mount the horizontal panel. Make sure that the hollow side is orientated to the same
side as the long ends of the feet (this would then be the rear).
5. Turn the stand upside down and mount the 4 casters (put the nut first in the casters,
then use the 12mm wrench.
6. Turn the stand the right way up again and put the machine on the stand and secure
with 4 screws.
7. Mount the basket. Make sure the long tubes are used at the rear. Put a saddle clip to
keep tubes in their place.
Setup

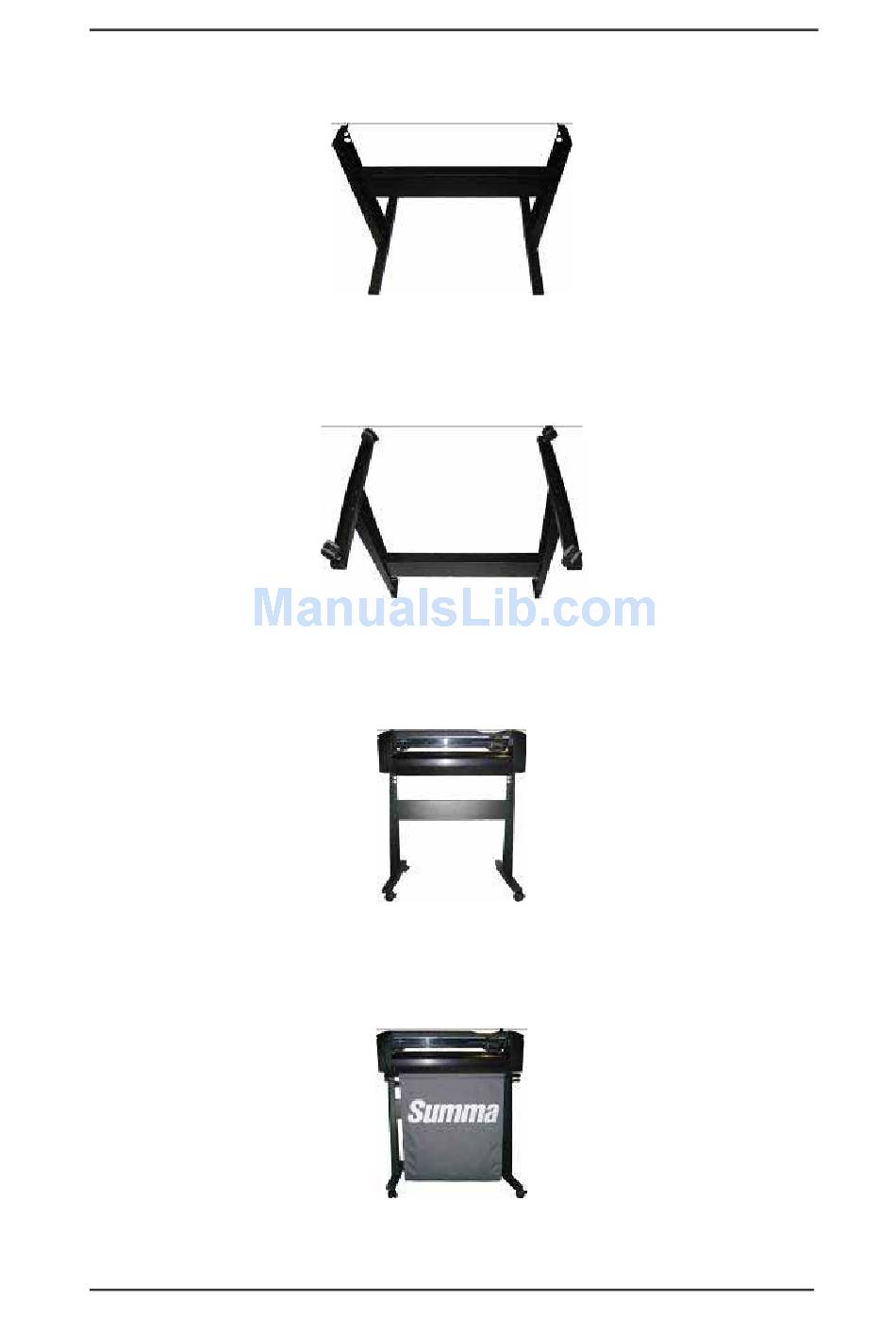

FIG 1-5
1-5 MOUNTING HORIZONTAL PANEL
FIG 1-6
1-6

MOUNTING THE 4 CASTERS

FIG 1-7
1-7

MOUNTING THE CUTTER ON THE STAND

FIG 1-8
1-8

INSTALLING THE BASKET

User's Manual
1-3
