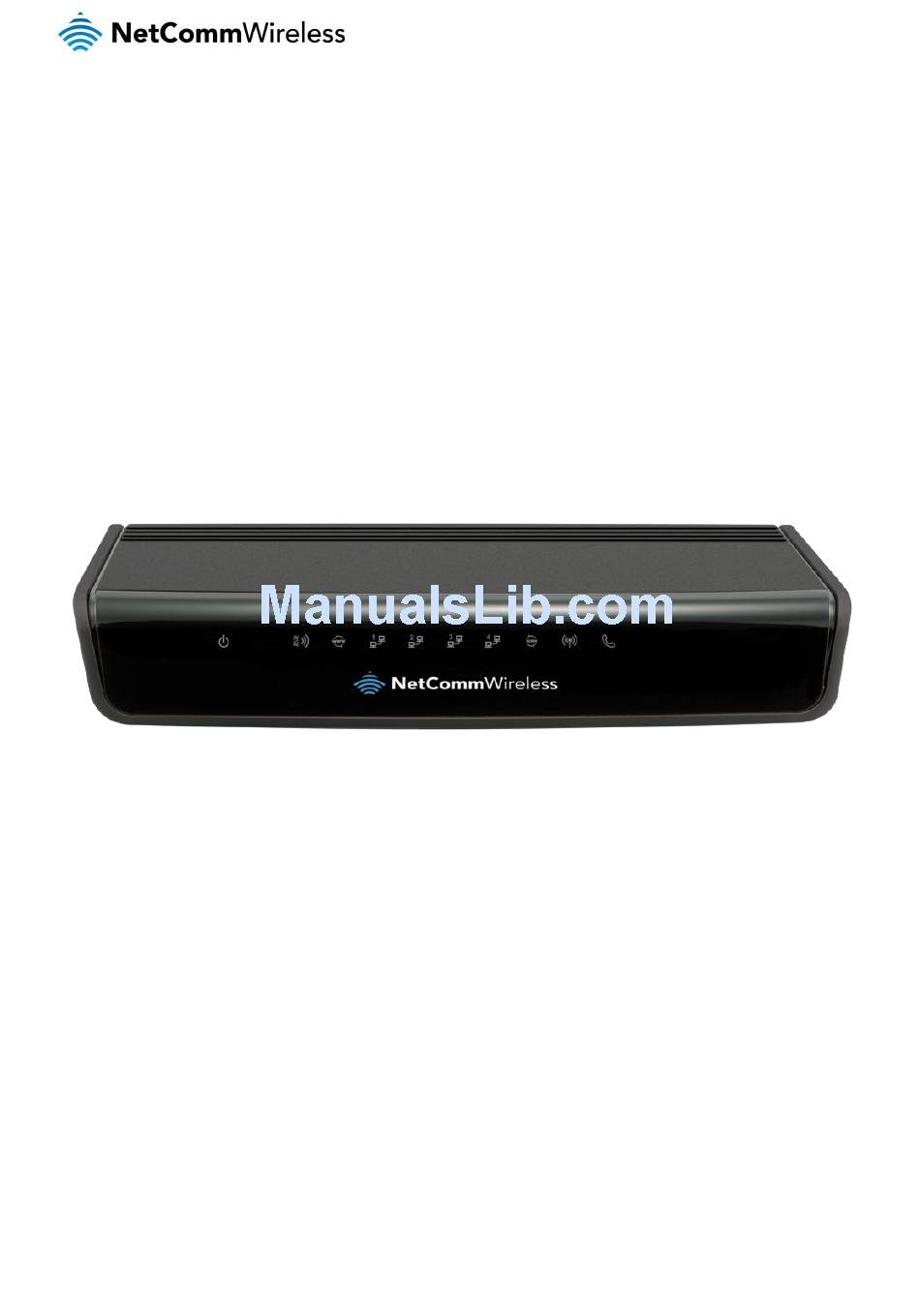

- Page 1 AC1200 WiFi Gigabit Router with Voice NF13ACV User Guide...
-
Page 2: Important Notice
NetComm Wireless accepts no responsibility for any loss or damage resulting from errors or delays in transmission or reception, or the failure of the NetComm Wireless device to transmit or receive such data. - Page 3 Copyright © 2015 NetComm Wireless Limited. All rights reserved. The information contained herein is proprietary to NetComm Wireless. No part of this document may be translated, transcribed, reproduced, in any form, or by any means without prior written consent of NetComm Wireless.
-
Page 4: Table Of Contents
Startup wizard ......................................65 Reboot ........................................66 Appendix A: Tables..................................67 Appendix B: Default Settings ..............................68 Restoring factory default settings ................................. 68 Legal & Regulatory Information..............................69 Contact......................................71 www.netcommwireless.com NetComm Wireless AC1200 WiFi Gigabit Router with Voice UM-00013 v1.0... -
Page 5: Overview
Overview Introduction This document provides you all the information you need to set up, configure and use the NetComm Wireless AC1200 WiFi Gigabit Router with Voice. Target audience The individual reading this guide is presumed to have a basic understanding of telecommunications terminology and concepts. -
Page 6: Product Introduction
1 x Warranty card 1 x Power supply (12V/2A) 1 x RJ11 Telephone cable If any of these items are missing or damaged, please contact NetComm Wireless Support immediately. The NetComm Wireless Support website can be found at: http://support.netcommwireless.com. www.netcommwireless.com NetComm Wireless AC1200 WiFi Gigabit Router with Voice UM-00013 v1.0... -
Page 7: Safety And Product Care
When transporting the router, it is recommended to return the product in the original packaging. This ensures the product will not be damaged. In the event the product needs to be returned, ensure it is securely packaged with appropriate padding to prevent damage during courier transport. www.netcommwireless.com NetComm Wireless AC1200 WiFi Gigabit Router with Voice UM-00013 v1.0... -
Page 8: Physical Dimensions And Indicators
Physical dimensions and indicators Physical dimensions Below is a list of the physical dimensions of the NF13ACV router. Figure 1 – NF13ACV router dimensions DIMENSIONS Length 214 mm Depth 146 mm Height 35 mm Weight 395 grams Table 2 - Device Dimensions www.netcommwireless.com... -
Page 9: Led Indicators
LED indicators The NF13ACV router uses 10 LEDs to display the current system and connection status. LED ICON NAME COLOUR / STATE DESCRIPTION Powered off. Blue Powered on and operating normally. Power Blue Flashing Starting up. No 3G/4G configuration present or no 3G/4G dongle plugged in. -
Page 10: Interfaces
Gigabit WAN port for connection to a WAN network. Phone port for a standard PSTN analogue telephone handset. Connect a phone to this port to make use Telephone of a VoIP service. Table 4 – Interfaces www.netcommwireless.com NetComm Wireless AC1200 WiFi Gigabit Router with Voice UM-00013 v1.0... -
Page 11: Setting Up Your Router
If you have a mobile broadband dongle for use as a backup WAN connection, connect it to the USB port on the rear of the unit. www.netcommwireless.com NetComm Wireless AC1200 WiFi Gigabit Router with Voice UM-00013 v1.0... -
Page 12: Connecting Via An Ethernet Cable
If you want to connect your computer to the router via Ethernet cable, follow these instructions. Connect an Ethernet cable to one of the yellow LAN ports on the back of the NF13ACV router. Connect the other end of the Ethernet cable to your computer. - Page 13 This page allows you to configure the administrator username and password used to access the configuration pages. We highly recommend that you change the password from the default setting to protect your router from unauthorized access. When you have finished, click the Next button. www.netcommwireless.com NetComm Wireless AC1200 WiFi Gigabit Router with Voice UM-00013 v1.0...
- Page 14 Next button until you return to this step. When the settings are correct, click the Finish button. The router returns to the Status page and the Startup Wizard is complete. Your router is now ready for use. www.netcommwireless.com NetComm Wireless AC1200 WiFi Gigabit Router with Voice UM-00013 v1.0...
-
Page 15: Advanced Configuration
Advanced configuration The NF13ACV router comes with pre-configured settings that should suit most customers. For advanced configuration, log in to the web-based user interface of the router. To log in to the web-based user interface: Open a web browser (e.g. Google Chrome™, Mozilla Firefox®), type http://192.168.20.1... -
Page 16: Status
Status The status page of the web interface provides system related information and is displayed when you log in to the NF13ACV router management console. The status page shows System information, Ethernet WAN, Mobile broadband, IPv6, Wireless 2.4GHz and Wireless 5GHz details. You can toggle the sections from view by clicking the buttons to show or hide them. - Page 17 Station info Click the Station Info link to be taken to the station information page providing more information on the connected stations. Table 5 - Status page item details www.netcommwireless.com NetComm Wireless AC1200 WiFi Gigabit Router with Voice UM-00013 v1.0...
-
Page 18: Networking
WAN port. To access this page, click on the Networking menu at the top of the screen. Figure 5 – Ethernet WAN settings – Dynamic IP address Figure 6 - Ethernet WAN settings - Static IP address www.netcommwireless.com NetComm Wireless AC1200 WiFi Gigabit Router with Voice UM-00013 v1.0... - Page 19 The Maximum Transmission Unit. Leave this at 0 to have it automatically set according to the network. This toggle switch turns on or off the Network Address Translation function. www.netcommwireless.com NetComm Wireless AC1200 WiFi Gigabit Router with Voice UM-00013 v1.0...
-
Page 20: Mobile Broadband
IGMP snooping Allows the router to listen in on the traffic between hosts and routers to determine which links need IP multicast streams. Table 7 - Mobile broadband configuration www.netcommwireless.com NetComm Wireless AC1200 WiFi Gigabit Router with Voice UM-00013 v1.0... - Page 21 Ethernet WAN connection, the Ethernet WAN connection status section displays the IP address, subnet mask and other connection details indicating that the WAN connection has been established. Figure 9 – Mobile broadband connection status section www.netcommwireless.com NetComm Wireless AC1200 WiFi Gigabit Router with Voice UM-00013 v1.0...
-
Page 22: Lan
DNS server, the primary and secondary WINS server, as well as the advanced DHCP settings such as NTP, TFTP and Option 66. Figure 11 - DHCP configuration www.netcommwireless.com NetComm Wireless AC1200 WiFi Gigabit Router with Voice UM-00013 v1.0... - Page 23 Clone button and the details will be copied to the address reservation list fields. Remember to click the Save button under the Address reservation list section to confirm the configuration. Figure 13 - Dynamic DHCP client list www.netcommwireless.com NetComm Wireless AC1200 WiFi Gigabit Router with Voice UM-00013 v1.0...
-
Page 24: Wireless 2.4Ghz / Wireless 5Ghz
The WiFi access point is turned on by default. Changing this option to OFF will turn OFF the wireless access point functionality of the Wireless module NF13ACV and you will not be able to connect to it with a wireless client. SSID The name of the wireless network. - Page 25 Enrollee, enter the PIN code in the Access point PIN field on the client device. Click the Trigger button and within two minutes, trigger the WPS function on your client device. The WPS connection is established. www.netcommwireless.com NetComm Wireless AC1200 WiFi Gigabit Router with Voice UM-00013 v1.0...
-
Page 26: Station Info
IP addresses. It also means that they are not isolated from each other and allows for easier configuration since you do not need to configure many port forwarding rules on each access point. Although it may be possible, NetComm Wireless provides no guarantee that the WDS feature of this router will work with third party routers. -
Page 27: Routing
(To) field. To forward a single port, enter the port in the (From) field and repeat it in the (To) field. In the Destination network address field, enter the IP address of the client to which the traffic should be forwarded. www.netcommwireless.com NetComm Wireless AC1200 WiFi Gigabit Router with Voice UM-00013 v1.0... -
Page 28: Port Triggering
The Port triggering feature allows some of these applications to work with this router. Note: If port triggering doesn’t work, rule out application issues first by configuring the computer as the DMZ host instead. www.netcommwireless.com NetComm Wireless AC1200 WiFi Gigabit Router with Voice UM-00013 v1.0... -
Page 29: Packet Filtering
Virtual Server or DMZ host. To access the Packet filtering page, click on the Networking menu at the top of the screen, click on the Routing menu on the left, then click on the Packet filtering menu item. Figure 21 - Packet filtering www.netcommwireless.com NetComm Wireless AC1200 WiFi Gigabit Router with Voice UM-00013 v1.0... -
Page 30: Mac Filtering
Networking menu at the top of the screen, click on the Routing menu on the left, then click on the MAC filtering menu item. Figure 22 - MAC filtering www.netcommwireless.com NetComm Wireless AC1200 WiFi Gigabit Router with Voice UM-00013 v1.0... -
Page 31: Domain Filtering
If you want to log DNS queries to the listed domains, click the Log DNS query toggle key so that it is in the ON position. Click the Save button. www.netcommwireless.com NetComm Wireless AC1200 WiFi Gigabit Router with Voice UM-00013 v1.0... -
Page 32: Static Routing
To give the route the highest priority, set it to 0. Click the Static Routing toggle key at the top of the page to turn on the Static routing feature globally. Click the Save button to save your settings. www.netcommwireless.com NetComm Wireless AC1200 WiFi Gigabit Router with Voice UM-00013 v1.0... - Page 33 Figure 26 - Active routing list Deleting static routes From the static routing list, click the icon to the right of the entry you wish to delete. Figure 27 - Deleting a static route www.netcommwireless.com NetComm Wireless AC1200 WiFi Gigabit Router with Voice UM-00013 v1.0...
- Page 34 Click the RIP toggle key to switch it to the ON position. Using the Version drop down list, select the version of RIP that you would like to use. Click the Save button to confirm your settings. www.netcommwireless.com NetComm Wireless AC1200 WiFi Gigabit Router with Voice UM-00013 v1.0...
-
Page 35: Url Blocking
Click the Activate toggle key next to it so that it is in the ON position. Click the URL blocking toggle key at the top of the page so that it is in the ON position. Click the Save button. www.netcommwireless.com NetComm Wireless AC1200 WiFi Gigabit Router with Voice UM-00013 v1.0... -
Page 36: Vpn
IPSec operates on Layer 3 of the OSI model and as such can protect higher layered protocols. IPSec is used for both site to site VPN and Remote Access VPN. The NF13ACV router supports IPsec end points and can be configured with Site to Site VPN tunnels with third party VPN routers. - Page 37 IPSec Tunnel options Figure 31 - IPSec tunnel options www.netcommwireless.com NetComm Wireless AC1200 WiFi Gigabit Router with Voice UM-00013 v1.0...
- Page 38 Figure 32 - IPSec tunnel configuration L2TP client The Layer 2 Tunneling Protocol is a tunneling protocol used to support virtual private networks (VPNs). The NF13ACV supports MPPE (Microsoft Point-to-Point Encryption) and CCP PPP Compression Control Protocol. Figure 33 - L2TP client www.netcommwireless.com...
-
Page 39: L2Tp Server
When you have selected the L2TP client options, click the Edit button to enter authentication details. Figure 34 - L2TP client authentication details L2TP server Here you can configure the L2TP server settings. Figure 35 - L2TP server www.netcommwireless.com NetComm Wireless AC1200 WiFi Gigabit Router with Voice UM-00013 v1.0... -
Page 40: Pptp Client
PPP packets. PPTP operates on Layer 2 of the OSI model and is included on Windows computers. Figure 36 - PPTP client When you have selected the PPTP client options, click the Edit button to enter authentication details. www.netcommwireless.com NetComm Wireless AC1200 WiFi Gigabit Router with Voice UM-00013 v1.0... -
Page 41: Pptp Server
Figure 37 - PPTP client authentication details PPTP server Here you can configure the PPTP server settings. Figure 38 - PPTP server www.netcommwireless.com NetComm Wireless AC1200 WiFi Gigabit Router with Voice UM-00013 v1.0... -
Page 42: Port Configuration
The port configuration page provides the ability to manually configure the speed of each of the LAN and WAN ports to 100Mbps full or half duplex or 10Mbps full or half duplex. When Auto is selected, the NF13ACV selects the highest possible speed that both nodes are capable of. -
Page 43: Services
To access the Universal Plug and Play page, click on the Services menu at the top of the screen then click on the UPnP settings menu item. Figure 39 - UPnP settings Click the Option toggle key to turn UPnP on or off then click the Save button to save the configuration. www.netcommwireless.com NetComm Wireless AC1200 WiFi Gigabit Router with Voice UM-00013 v1.0... -
Page 44: Ddns
In the Username and Password fields, enter the logon credentials for your DDNS account. Enter the password for the account again in the Verify password field. Click the Save button to save the DDNS configuration settings. www.netcommwireless.com NetComm Wireless AC1200 WiFi Gigabit Router with Voice UM-00013 v1.0... -
Page 45: Qos
Differentiated Services Code Point (DSCP) which is a field in an IP packet used for classification purposes and operates at the IP layer. The NF13ACV also supports 802.1p priority tags which operate at the media access control (MAC) level. - Page 46 Note: If "Remote" access is enabled, the default setting of 0.0.0.0 means any IP can obtain SNMP protocol Information. Click the Save button to store your setting or the Undo button to discard your changes. www.netcommwireless.com NetComm Wireless AC1200 WiFi Gigabit Router with Voice UM-00013 v1.0...
-
Page 47: Ntp
Use the DST Start and DST End drop down lists to select the time and date at which daylight saving should start and end. Click the Save button to save the settings. www.netcommwireless.com NetComm Wireless AC1200 WiFi Gigabit Router with Voice UM-00013 v1.0... -
Page 48: Scheduling
To access the Scheduling page, click on the Services menu at the top of the screen then click on the Scheduling menu item on the left. Figure 44 – Scheduling www.netcommwireless.com NetComm Wireless AC1200 WiFi Gigabit Router with Voice UM-00013 v1.0... -
Page 49: Adding A Schedule
Figure 46 - Scheduling changes successfully saved and applied To use the schedules in the list, ensure that the Scheduling Option toggle key is set to the ON position. Figure 47 - Scheduling Option toggle key enabled www.netcommwireless.com NetComm Wireless AC1200 WiFi Gigabit Router with Voice UM-00013 v1.0... -
Page 50: Ipv6
Select the appropriate type of auto configuration mode as required by your Internet Service Provider for their IPv6 service. Router Advertisement Lifetime Enter the length of time between the router advertising its availability on the IPv6 connection. Table 16 - IPv6 www.netcommwireless.com NetComm Wireless AC1200 WiFi Gigabit Router with Voice UM-00013 v1.0... -
Page 51: Tr-069
Select to enable or disable the Inform function for ACS connections. Select the interval between Inform requests if Enable periodic ACS informs has Inform period been enabled. Table 17 - TR-069 configuration options www.netcommwireless.com NetComm Wireless AC1200 WiFi Gigabit Router with Voice UM-00013 v1.0... -
Page 52: Voip
Displays the current status of your VoIP service. Table 18 - VoIP Service domain configuration Click Save to save your settings and connect to your VoIP service or Undo to discard the settings entered. www.netcommwireless.com NetComm Wireless AC1200 WiFi Gigabit Router with Voice UM-00013 v1.0... -
Page 53: Port Settings
The Codec Setting page enables you to select which audio codec to use with your VoIP service. This information will usually be supplied by your VoIP service provider and should not need to be changed unless you are experiencing issues with VoIP call sound quality. Figure 52 - CODEC settings www.netcommwireless.com NetComm Wireless AC1200 WiFi Gigabit Router with Voice UM-00013 v1.0... - Page 54 DTMF Setting Select which DTMF standard you would like to use. Table 20 - DTMF settings Click Save to save your settings or Undo to discard the settings entered. www.netcommwireless.com NetComm Wireless AC1200 WiFi Gigabit Router with Voice UM-00013 v1.0...
- Page 55 Use the drop down list to select the region closest to you to configure the FXS port operation. Click Save to save your settings or Undo to discard the settings entered. www.netcommwireless.com NetComm Wireless AC1200 WiFi Gigabit Router with Voice UM-00013 v1.0...
-
Page 56: Dial Plan
R-port allows a client to request that the server send the response back to the source IP address R-port and port from which the request originated. Click Save to save your settings. www.netcommwireless.com NetComm Wireless AC1200 WiFi Gigabit Router with Voice UM-00013 v1.0... -
Page 57: Call Features
The DND Setting page enables you to configure Do Not Disturb (DND) mode. This will prevent calls coming through to your phone. Figure 58 - DND settings OPTION DEFINITION DND Always Enable or Disable the DND feature. Table 23 - DND settings Click Save to save your settings. www.netcommwireless.com NetComm Wireless AC1200 WiFi Gigabit Router with Voice UM-00013 v1.0... - Page 58 Select to Enable or Disable the call waiting feature on the router. Table 25 - Call waiting Click Save to save your settings or Undo to discard the settings entered. www.netcommwireless.com NetComm Wireless AC1200 WiFi Gigabit Router with Voice UM-00013 v1.0...
- Page 59 The Key combination page enables you to configure the dialing codes used to activate or deactivate features on your VoIP service (if supported by your VoIP Provider). Figure 63 - Key combination Click Save to save your settings. www.netcommwireless.com NetComm Wireless AC1200 WiFi Gigabit Router with Voice UM-00013 v1.0...
-
Page 60: Phone Book
To dial out via the phonebook, lift the handset and dial the entry number. After the timeout period (approximately 5 seconds) has elapsed, the number is called. Alternatively, you can press the # key after selecting an entry to dial it immediately. www.netcommwireless.com NetComm Wireless AC1200 WiFi Gigabit Router with Voice UM-00013 v1.0... -
Page 61: System
Figure 65 - System log System log settings This page lets you configure a remote syslog server and email the system log to an email recipient. Figure 66 - System log settings www.netcommwireless.com NetComm Wireless AC1200 WiFi Gigabit Router with Voice UM-00013 v1.0... -
Page 62: Administration
When enabled, the router does not respond to port scans from the WAN side. This Keep WAN in stealth mode can help in reducing attacks. Table 27 - System administration www.netcommwireless.com NetComm Wireless AC1200 WiFi Gigabit Router with Voice UM-00013 v1.0... -
Page 63: Diagnostics
The LED indicators on the front of the device can be set to be bright or dim according to a schedule. Figure 70 - LED brightness Diagnostics Using the diagnostics page, you can send a ping request to an IP address. Figure 71 - Diagnostics System configuration www.netcommwireless.com NetComm Wireless AC1200 WiFi Gigabit Router with Voice UM-00013 v1.0... - Page 64 The backup / restore functions can be used to easily configure a large number of NF13ACV routers by configuring one router with your desired settings, backing them up to a file and then restoring that file to multiple NF13ACV routers.
-
Page 65: Firmware Upgrade
Figure 73 - Firmware upgrade Startup wizard To run the wizard that appears on the initial boot of the router, select the System menu, then click the Startup wizard button on the left. www.netcommwireless.com NetComm Wireless AC1200 WiFi Gigabit Router with Voice UM-00013 v1.0... -
Page 66: Reboot
The router displays a warning that you are about to perform a reboot. If you wish to proceed, click the Reboot button then click OK on the confirmation window which appears. Figure 75 - Reboot confirmation Note: It can take up to 2 minutes for the router to reboot. www.netcommwireless.com NetComm Wireless AC1200 WiFi Gigabit Router with Voice UM-00013 v1.0... -
Page 67: Appendix A: Tables
Table 27 - System administration ..............................62 Table 28 - System administration ..............................63 Table 28 - LAN Management Default Settings ..........................68 Table 29 - Web Interface Default Settings ............................68 www.netcommwireless.com NetComm Wireless AC1200 WiFi Gigabit Router with Voice UM-00013 v1.0... -
Page 68: Appendix B: Default Settings
Press the WPS/Reset button on the device for more than 15 seconds. The router will restore the factory default settings and reboot. When you have reset your NF13ACV router to its default settings you will be able to access the device’s configuration web interface using http://192.168.20.1... -
Page 69: Legal & Regulatory Information
NetComm Wireless Limited’s (or its licensors’) intellectual property rights to you. You are permitted to use this Manual for the sole purpose of using the NetComm Wireless product to which it relates. Otherwise no part of this Manual may be reproduced, stored in a retrieval system or transmitted in any form, by any means, be it electronic, mechanical, recording or otherwise, without the prior written permission of NetComm Wireless Limited. -
Page 70: Product Warranty
Consumer Protection Laws which cannot be excluded, NetComm Wireless’s liability for any breach of that guarantee, condition or warranty is limited to: (i) in the case of a supply of goods, NetComm Wireless Limited doing any one or more of the following: replacing the goods or supplying equivalent goods;... -
Page 71: Contact
Contact Address: NETCOMM WIRELESS LIMITED Head Office PO Box 1200, Lane Cove NSW 2066 Australia Phone: +61(0)2 9424 2070 Fax: +61(0)2 9424 2010 Email: sales@netcommwireless.com techsupport@netcommwireless.com www.netcommwireless.com NetComm Wireless AC1200 WiFi Gigabit Router with Voice UM-00013 v1.0...
