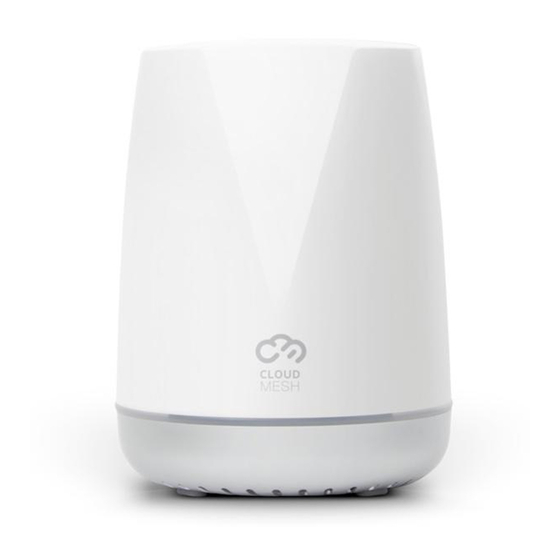

NetComm CloudMesh Manual
  1. Manuals
  2. Brands
  3. NetComm Manuals
  4. Network Router
  5. CloudMesh
  6. Manual

NetComm CloudMesh Manual

Seamless wi-fi coverage
Hide thumbs Also See for CloudMesh:

Advertisement

Quick Links

Download this manual

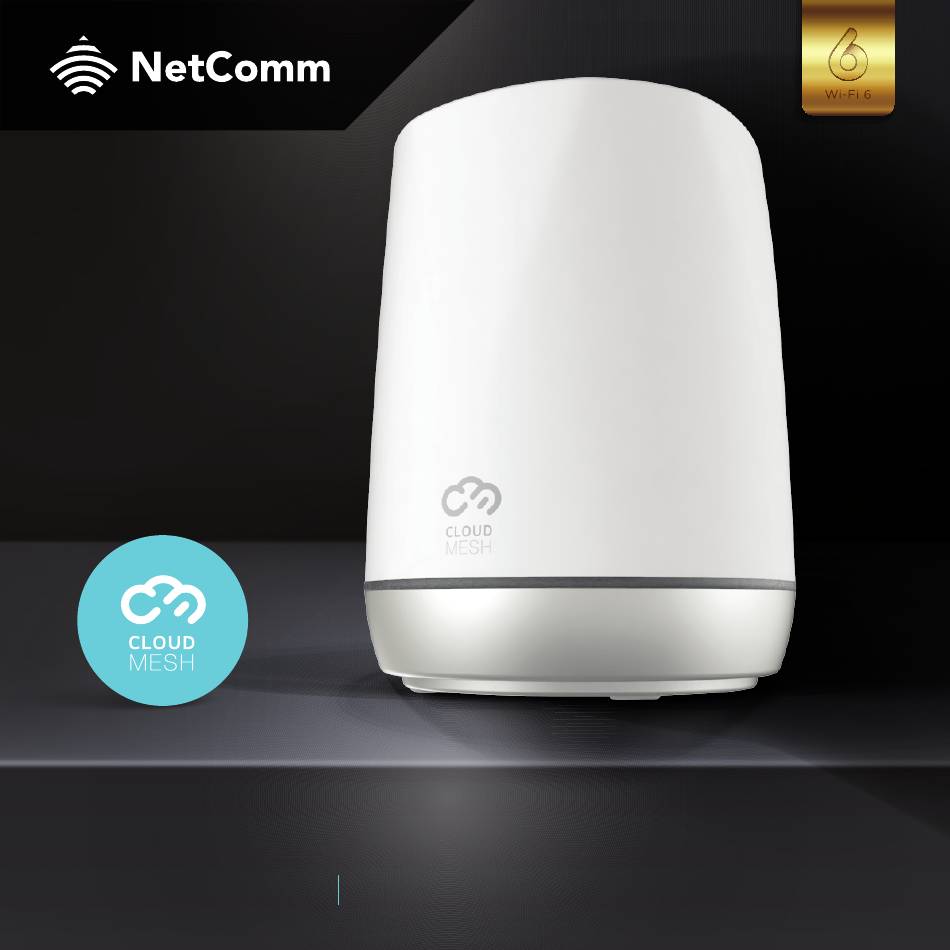

CloudMesh Satellite
NS-02
SEAMLESS WI-FI COVERAGE

Advertisement

loading
Need help?

Need help?

Do you have a question about the CloudMesh and is the answer not in the manual?

Questions and answers

Related Manuals for NetComm CloudMesh

Summary of Contents for NetComm CloudMesh

  • Page 1 CloudMesh Satellite NS-02 SEAMLESS WI-FI COVERAGE...

  • Page 2: You Will Need

    WHAT YOU WILL NEED...
  • Page 3 This product includes software code that is subject to the GNU General Public License (“GPL”) or GNU Lesser General Public License (“LGPL”). This code is subject to the copyrights of one or more authors and is distributed without any warranty. A copy of this software can be obtained by contacting NetComm.
  • Page 4 Your CloudMesh Satellite works best when it is placed in a central location to the area you want to cover. Ideally, it should be located no more than two rooms away from the CloudMesh Gateway.
  • Page 6 Before you begin, ensure your CloudMesh Gateway is connected to the Internet. Connect the Power Adapter to the CloudMesh Satellite. Ensure that the power switch is in the ON position.
  • Page 7 GREEN Light...
  • Page 8 Wait ten minutes for the CloudMesh Satellite to initialise and then check the light status. A solid white or blue light means the satellite has been paired with the Gateway and is ready to use. A solid red light means that the Satellite needs to be moved closer to the Gateway.
  • Page 9 Your CloudMesh Satellite light follows this sequence when first turned on: Blinking green Powering up Blinking blue Ready for pairing See next page & page 14 for more instructions...
  • Page 10 When connected to the CloudMesh Gateway, the light shows the signal strength as follows: Solid white Good signal Solid blue Medium signal Solid red Poor signal No signal / too far from Blinking blue gateway / not connected to mesh network...
  • Page 11 The light may also show as: Paired but no Solid pink Internet connection WPS pairing Blinking purple activated Blinking pink Pairing in progress Wired connection Solid green to NF20MESH Note: Refer to the User Guide for a full set of light statuses.
  • Page 12 CloudMesh Gateway. Once you have decided where to place the CloudMesh Satellites, always power up the Satellite closest to the CloudMesh Gateway first. Once you have confirmed this Satellite is working, then power up and connect the second CloudMesh Satellite.
  • Page 13 There are multiple ways your CloudMesh Satellites could connect to your CloudMesh Gateway to provide whole home wireless coverage.
  • Page 14 If the CloudMesh Satellite light is still blinking blue after five minutes, you will need to pair it with the CloudMesh Gateway. Place the CloudMesh Satellite next to your CloudMesh Gateway. Ensure that the CloudMesh Gateway is connected to the Internet.
  • Page 16 Press and release the WPS button on the Satellite, then press and release the WPS button on the Gateway within two minutes.
  • Page 18 Network Ports for non-wireless devices. Up to two devices may be connected.

  • Page 19: Wireless Bridge

    DIAGRAM WIRELESS BRIDGE The CloudMesh Satellite can provide Internet access to devices that are not wireless, such as desktop PCs or Smart TVs. Up to two devices may be connected in this way per CloudMesh Satellite, connecting at the back of the Satellite using the included yellow network cable.
  • Page 20 Network ports can also be used to connect the satellite to the gateway.
  • Page 21 WIRED MESH For the best possible wireless performance, you can connect the CloudMesh Satellite to your CloudMesh Gateway using Ethernet cable. This allows you to extend the range of your network when the satellite is not in the wireless range of your gateway...
  • Page 22 TO TURN OFF LED LIGHTS To control the Satellite’s LED light, press and hold the WPS button for five seconds to switch the light’s display ON or OFF.
  • Page 23 DOWNLOAD THE CLOUDMESH APP Finding the best place for your CloudMesh Satellite is easy using the CloudMesh App. - Satellite placement assistance - WiFi Analytics - WiFi Troubleshooting - Setup does not require the App Get it on the App Store or Google Play.
  • Page 24 NetComm Wireless Limited is part of Casa Systems, Inc. Casa Systems, the future of NetComm ANZ HEAD OFFICE SYDNEY Casa Systems Inc. 18-20 Orion Road, Lane Cove NSW 2066, Sydney Australia +61 2 9424 2070 www.netcomm.com CORPORATE HEADQUARTERS ANDOVER Casa Systems Inc.
