LAN

LAN
The LAN configuration page is used to configure the LAN settings of the router. To access the LAN configuration page, click on the
Networking menu at the top of the screen, then click on the LAN menu on the left.
The default IP of the LAN port is 192.168.20.1 with subnet mask 255.255.255.0. To change the IP address or Subnet mask, enter
the new IP Address and/or Subnet mask and click the Save button.
Note: If you change the IP address, remember to reboot the router and enter the new IP address into your browser address
bar.
DHCP
The DHCP page is used to adjust the settings used by the router's built in DHCP Server which assigns IP addresses to locally
connected devices. To access the LAN configuration page, click on the Networking menu at the top of the screen, click on the LAN
menu on the left then select the DHCP menu item.
DHCP configuration
You can manually set the start and end address range to be used to automatically assign addresses within, the lease time of the
assigned address, the default domain name suffix, primary and secondary DNS server, the primary and secondary WINS server, as
well as the advanced DHCP settings such as NTP, TFTP and Option 66.
NetComm Wireless AC1200 WiFi Gigabit Router with Voice
22

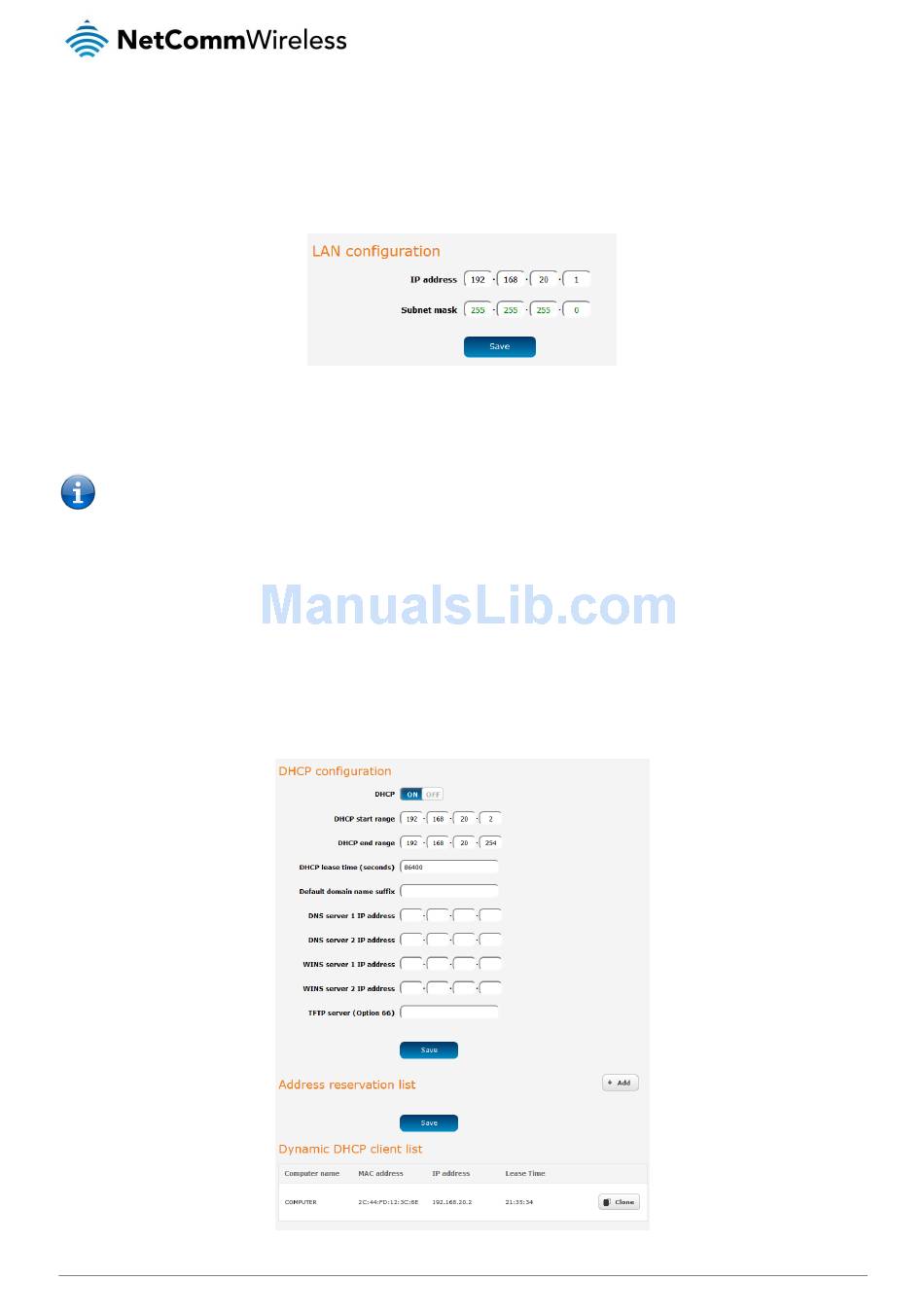

Figure 10 – LAN configuration settings
Figure 11 - DHCP configuration
