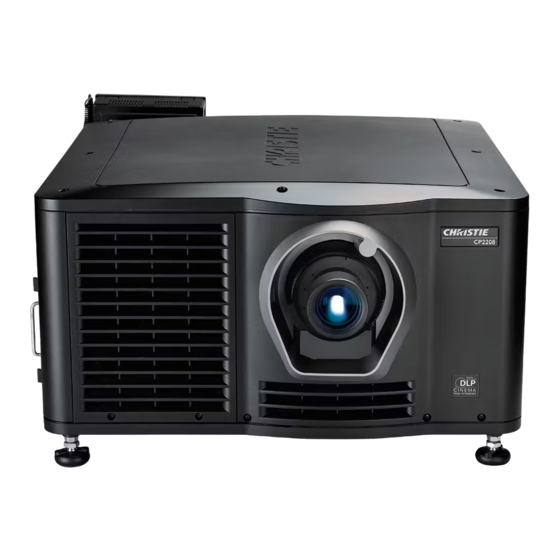

Christie CP2208 Installation And Setup Manual

Hide thumbs Also See for CP2208:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Service Manual, User Manual
I n s t a l l a t i o n a n d S e t u p M a n u a l
020-102031-01
CP2208

Advertisement

Table of Contents
loading

Related Manuals for Christie CP2208

Summary of Contents for Christie CP2208

  • Page 1 I n s t a l l a t i o n a n d S e t u p M a n u a l 020-102031-01 CP2208...
  • Page 2 The warranty does not apply to any product where the serial number has been removed or obliterated. The warranty also does not apply to any product sold by a reseller to an end user outside of the country where the reseller is located unless (i) Christie has an office in the country where the end user is located or (ii) the required international warranty fee has been paid.

  • Page 3: Table Of Contents

    Display ............28 CP2208 Installation and Setup Guide...
  • Page 4 Accessories ..........34 CP2208 Installation and Setup Guide...

  • Page 5: Installation And Setup

    Only accredited Christie technicians who are knowledgeable about the hazards associated with high-voltage, ultraviolet exposure, and the high temperatures generated by the projector lamp are authorized to assemble, install, and service the projector. In addition, only Christie accredited personnel are authorized to perform security procedures such as marriage.

  • Page 6: Ac/Power Precautions

    • DO NOT attempt operation if the AC supply and cord are not within the specified voltage and power range. • Use only the attachments and/or accessories recommended by Christie. Use of others may result in the risk of fire, shock and personal injury.

  • Page 7: Lamp Precautions

    Any local or federal specifications take precedence over Christie recommendations. • Never attempt to remove the lamp directly after use. Any lamp used in the CP2208 is under high pressure when hot or cold and may explode causing personal injury and /or property damage, and must be handled with great care at all times.

  • Page 8: Projector Components - Rear

    2. Position the projector so it is centered and parallel with the theatre screen. If space is limited, aim the projector slightly off-center and use lens offset to center the image on the screen. CP2208 Installation and Setup Guide 020-102031-01 Rev. 1 (09-2015)

  • Page 9: Stacking Projectors

    Installation and setup Stacking projectors To stack CP2208 projectors, use the stacking kit provided with the projector. The CP2208 stacking kit includes these parts: Stacking Cup x 4 Locking Bracket x 4 M6 Screw x 4 When stacking projectors, the optical axis of the projectors must be parallel to one another. The maximum tilt for stacked projectors is 13 degrees.
  • Page 10 CP2208 User Manual (P/N: 020-101916-XX). g. Align the top projector image to the bottom projector image. For more information see the CP2208 User Manual (P/N: 020-101916-XX). 8. When both projectors are installed and aligned correctly, install the locking brackets on the feet of the top projector: a.

  • Page 11: Adjusting Tilt And Level The Projector

    Use the lens mount to align the images of stacked projectors and not projector tilt. If tilt is required to fit the image to the screen, tilt only the lower projector. The front-to-back tilt of the projector must not exceed 15°. CP2208 Installation and Setup Guide 020-102031-01 Rev. 1 (09-2015)

  • Page 12: Installing The Touch Panel Controller

    The lens seals the projection head, preventing contaminants from entering the main electronics area. Do not operate the projector without a lens installed. Install a lens plug when you install or transport the projector. CP2208 Installation and Setup Guide 020-102031-01 Rev. 1 (09-2015)
  • Page 13 Lens caps must be removed or they can melt and damage the lens. 5. Insert the lens straight into the lens mount opening without turning. Magnets inside the lens mount help position the lens. CP2208 Installation and Setup Guide 020-102031-01 Rev. 1 (09-2015)

  • Page 14: Installing The Lamp

    Installing the lamp Danger! Failure to comply with the following results in serious injury. This procedure should only be performed by a Christie accredited technician. High-pressure lamp may explode if improperly handled. Always wear approved protective safety clothing whenever the lamp door is open or when handling the lamp.
  • Page 15 Installation and setup 8. Loosen the two thumbscrews and open the fire wall door. 9. Loosen the two thumbscrews and open the lamp access door. CP2208 Installation and Setup Guide 020-102031-01 Rev. 1 (09-2015)
  • Page 16 Tighten the cathode screw (D) with a hex key. c. Thread on and hand-tighten the cathode nut. Ensure the smooth portion of the nut is against the cathode clamp. CP2208 Installation and Setup Guide 020-102031-01 Rev. 1 (09-2015)

  • Page 17: Connecting Devices To The Projector

    16. Close and lock the rear access door. Ensure the hex key is placed back into its holder before closing the rear access door. Connecting devices to the projector To display content, you must connect a device that is capable of storing or playing content to the projector. CP2208 Installation and Setup Guide 020-102031-01 Rev. 1 (09-2015)

  • Page 18: Projector Connections

    • IMB - The LED is green when the Integrated Media Block (IMB) is operating correctly. A red LED indicates a communication issue. If the LED is not illuminated, the IMB is inactive. CP2208 Installation and Setup Guide 020-102031-01 Rev. 1 (09-2015)

  • Page 19: Connecting The Projector To A Computer

    For more information see the CP2208 User Manual (P/N: 020-101916-XX). Connecting devices to the 3D sync terminal For information about connecting devices to the 3D sync terminal, see the CP2208 User Manual (P/N: 020-101916-XX). Connecting power •...
  • Page 20 8. If you are using an Uninterrupted Power Supply (UPS) to power the main electronics, move the AC switch to A + B and connect the power cord provided with the UPS to the B outlet. AC Switch 100-240V secondary inlet 200-240V main inlet CP2208 Installation and Setup Guide 020-102031-01 Rev. 1 (09-2015)

  • Page 21: Operation

    You must complete marriage to display encrypted content and to comply with Digital Cinema System Specification (the DCI specification). You cannot complete marriage remotely. In addition, an authorized employee must be physically present to verify that the anti-tamper seal on the card CP2208 Installation and Setup Guide 020-102031-01 Rev. 1 (09-2015)

  • Page 22: Adding The Projector To A Network

    The baud rate of the serial port. The default is 115200. Enable SNMP Enables SNMP. SNMP V2 / SNMP V3 The SNMP protocol type. Contact Christie for the SNMP V3 user ID and password. Management IP The IP address where SNMP information and notifications are sent.

  • Page 23: Adding The Lamp Information To The Lamp History

    2. Verify the value in the Power% field is at a level suitable for your requirements. 3. Tap Menu > Advanced Setup > Light Adjust. 4. Record the number in the Intensity field. 5. Tap Display Full Screen White Test Pattern. CP2208 Installation and Setup Guide 020-102031-01 Rev. 1 (09-2015)
  • Page 24 Remove the hex driver and repeat steps a to c to adjust the Z and X axis. 8. Verify the value in the Intensity field is greater or equal to the number you recorded in step 4. If value is lower, repeat steps 6 and Step 7. CP2208 Installation and Setup Guide 020-102031-01 Rev. 1 (09-2015)

  • Page 25: Adjusting The Image To Fit The Screen

    9. If the test pattern is focused and centered on the screen you do not need to complete further image adjustment. If the image is not focused and centered on the screen, see the CP2208 User Manual (P/N: 020-101916-XX) for more information.

  • Page 26: Aligning Dual Projector Images

    Aligning dual projector images 1. Stack the projectors. For more information see the CP2208 User Manual (P/N: 020-101916- XX). 2. On the bottom projector, adjust the image to fit the screen. See Adjusting the image to fit the screen on page 3.

  • Page 27: Playing Content

    9. If the test pattern is focused and centered on the screen you do not need to complete further image adjustment. If the image is not focused and centered on the screen, see the CP2208 User Manual (P/N: 020-101916-XX) for more information.

  • Page 28: Projector Specifications

    Projector specifications This section provides detailed CP2208 specifications. Due to continuing research, specifications are subject to change without notice. Display Panel resolution and refresh rate Pixel format (H x V square pixels) 2048 x 1080 Processing path 23.97 - 240Hz...

  • Page 29: White Point

    Interface Proprietary 3D connector Connector 15-pin subminiature D, female Bit Rate 1,200 bps Data Format 1 start bit, 8 data bits, 1 stop bit, no parity Communication Protocol RS232 and GPIO CP2208 Installation and Setup Guide 020-102031-01 Rev. 1 (09-2015)

  • Page 30: Touch Panel Controller

    (rating for powering main electronics) UPS Type Universal 100-240VAC IEC-320-C19/20 A Ballast Power AC Plug Type/Current rating (on projector) Line Frequency 50 Hz - 60 Hz nominal Current Consumption 4 A maximum (at 100 VAC) CP2208 Installation and Setup Guide 020-102031-01 Rev. 1 (09-2015)

  • Page 31: Lamp

    Lamp expiry hours This table specifies the maximum hours the projector lamp can operate before replacement: Lamp Type Expected Life CDXL-14M 3500 hours CDXL-16M 3500 hours CDXL-19SC 1500 hours CDXL-21S1 1500 hours CP2208 Installation and Setup Guide 020-102031-01 Rev. 1 (09-2015)

  • Page 32: Physical Specifications

    (RoHS) in electrical and electronic equipment and the applicable official amendment(s). • EU Regulation (EC) No. 1907/2006 onthe registration, evaluation, authorization and restriction of chemicals (REACH) and the applicable official amendment(s). CP2208 Installation and Setup Guide 020-102031-01 Rev. 1 (09-2015)

  • Page 33: Certification

    Standard (sold with product) • Touch panel controller (TPC) with interface cable • User Manual (with CD containing additional technical documentation) • Power Cord • Lamp • Lens • Air Filters • Stacking Kit CP2208 Installation and Setup Guide 020-102031-01 Rev. 1 (09-2015)

  • Page 34: Accessories

    Replacement Light Engine Air Filter (003-004460-XX) • Replacement Air Filter (003-002311-XX) • Replacement Light Engine Washable Air Filter (003-004654-XX) • Replacement Card Cage Washable Air Filter (003-004655-XX) • Extractor Adaptor Kit (119-103105-XX) CP2208 Installation and Setup Guide 020-102031-01 Rev. 1 (09-2015)
  • Page 35 Corporate offi ces Worldwide offi ces USA – Cypress Australia Eastern Europe and India Singapore ph: 714-236-8610 ph: +61 (0) 7 3624 4888 Russian Federation ph: +91 (080) 6708 9999 ph: +65 6877-8737 ph: +36 (0) 1 47 48 100 Canada –...
