Simrad NSE8 Quick Reference Manual

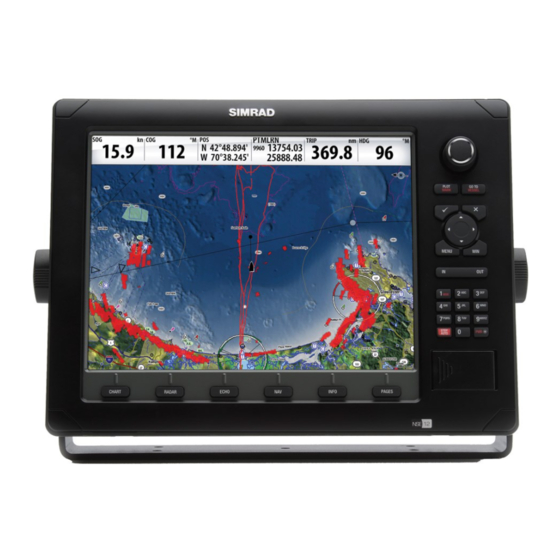

CHART

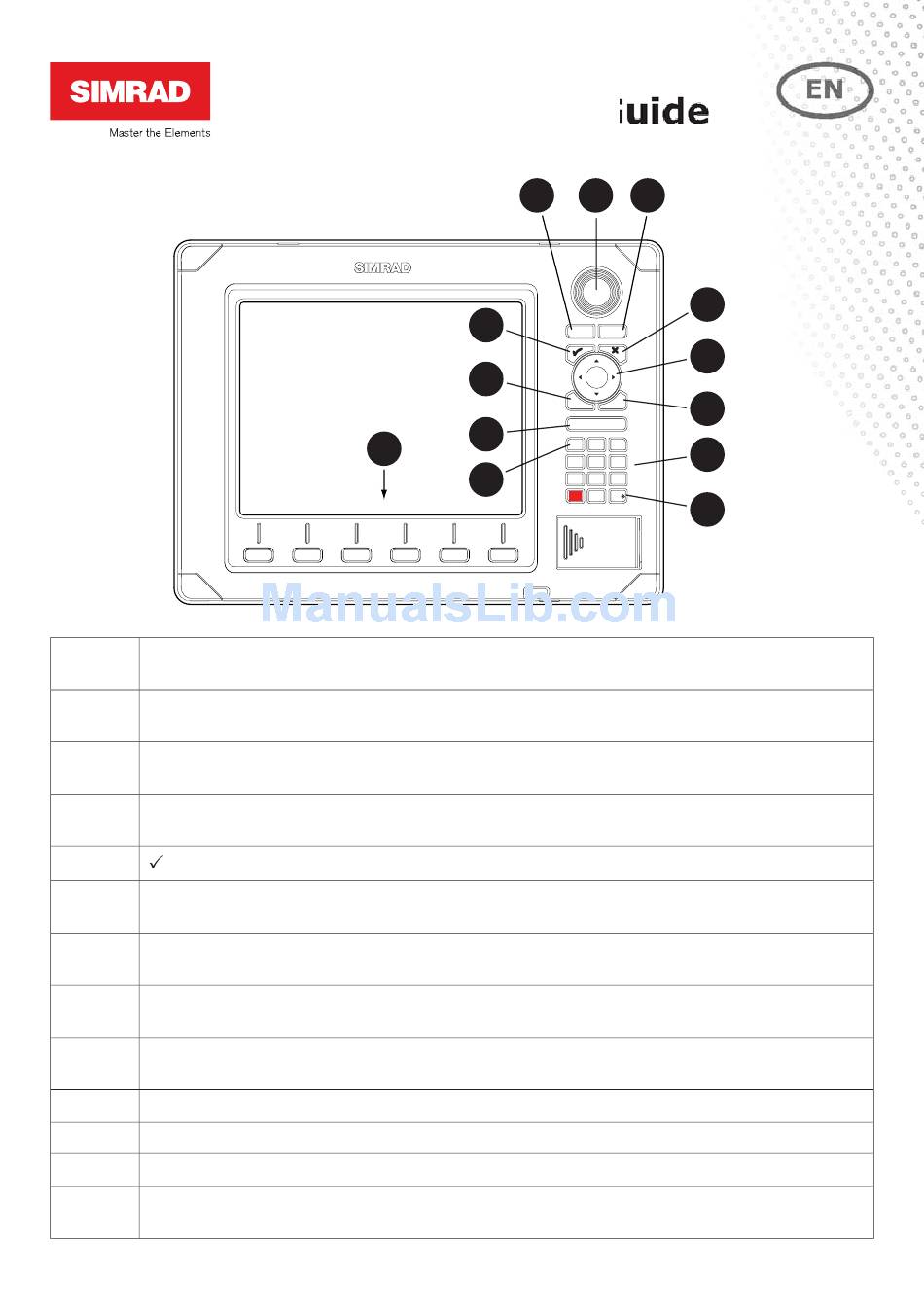

Direct Access Keys (DAK). Provide direct access to a page. Repeated presses
1
of each DAK cycles through several different pages that relate to the DAK
PLOT/MARK key. A short press activates the Plot menu, a long press positions
2
a waypoint at the vessel position
Rotary knob. Used to maneuver in the menu system, and for context specific
3
operation
GOTO/VESSEL key. A short press activates the Goto menu, a long press
4
centers the chart to vessel position
5
(Tick) key. Activates/confirms current selection
X (Exit) key. Used to close dialogs, and to return to previous menu level.
6
Removes the cursor from the screen on radar, sonar and chart panels
Cursor keypad used to move the cursor on the display, and to maneuver in the
7
menu system
MENU key. A single press displays the context menu for active panel/overlay/
8
operation. Pressing the key twice displays the Settings menu
WIN key, used on multiple panels pages. A short press toggles between the
9
panels, a long press expands active panel to a full page panel
10 Zoom keys for radar, sonar and chart panels
11 MOB key. A long press positions a MOB waypoint at the vessel's position
12 Alpha numeric keypad used for entering numbers and text in dialog boxes.
Power key. A short press activated the Light dialog, a long press turns the unit
13
off.
