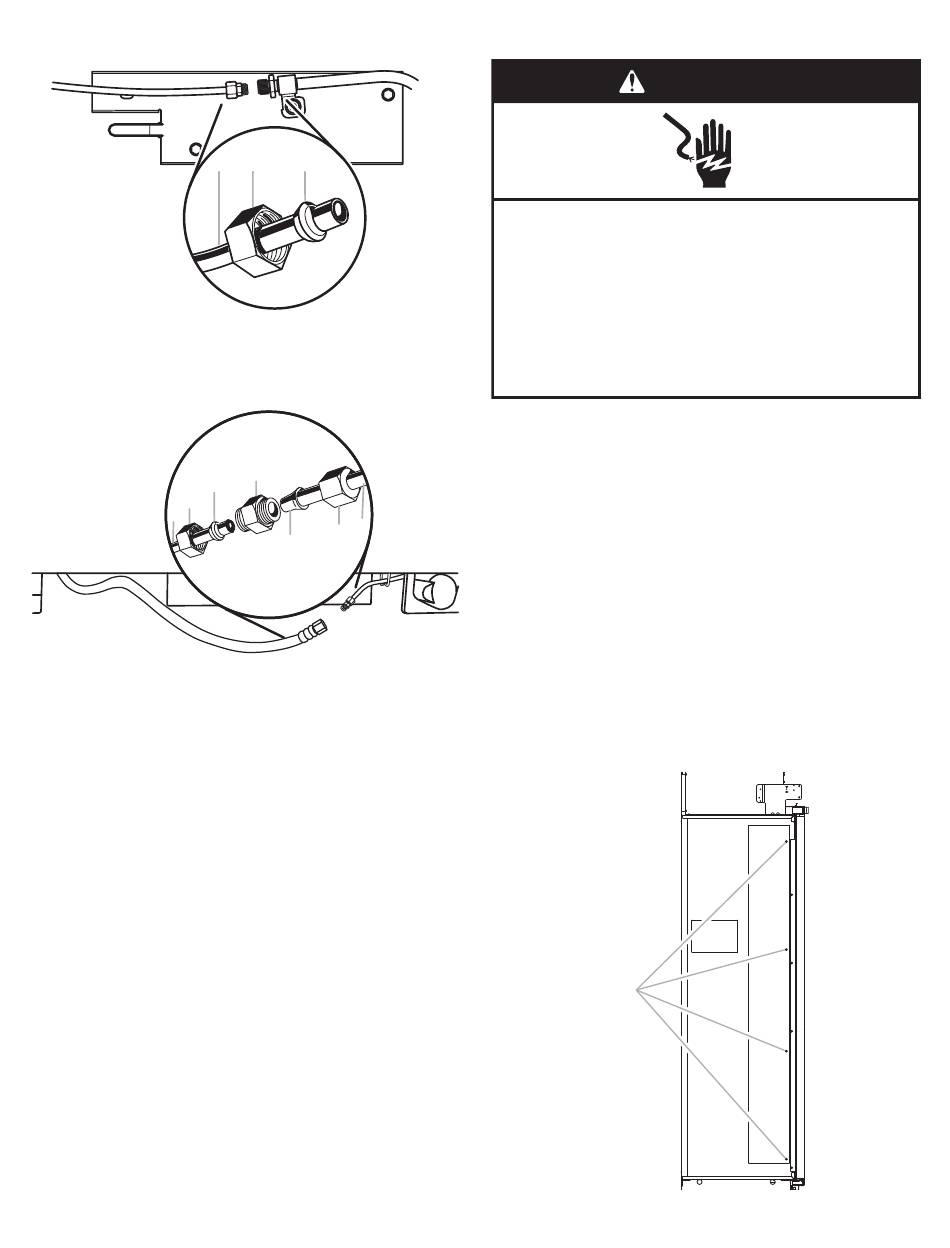

Plug In Refrigerator; Install Side Trims - Jenn-Air JS42NXFXDE Install

OVERMOLD COUPLING (ON SOME MODELS)
A. Household water line
B. Nut (purchased)
C. Ferrule (purchased)
DISCRETE COUPLING (ON SOME MODELS)
C
B
A
A. Household water line
B. Nut (purchased)
C. Ferrule (purchased)
D. Coupling
6.
Turn on the water supply valve and check all
connections for leaks.
A B C
D
F G
E
E. Bulb
F. Nut
G. Refrigerator water tubing

PLUG IN REFRIGERATOR

WARNING
Electrical Shock Hazard
Plug into a grounded 3 prong outlet.
Do not remove ground prong.
Do not use an adapter.
Do not use an extension cord.
Failure to follow these instructions can result in death,
fire, or electrical shock.
If the supply cord is damaged, it must be replaced
by the manufacturer or its service agent or a similar
qualified person. Do not use a cord that shows cracks or
abrasion damage along its length or at either the plug or
connection end.
1.
Set control switch at top of cabinet to the OFF
position.
2.
Plug into a grounded 3 prong outlet.

INSTALL SIDE TRIMS

The side trims cover the space between the refrigerator
and the adjacent cabinets. There is a trim piece taped to
each side of the refrigerator. Install each trim piece to the
side of the refrigerator to which it is taped.
1.
Remove the tape attaching the trim pieces to the
sides of the refrigerator. Set the trim pieces aside.
2.
Remove the four screws from the side of the
refrigerator cabinet.
A
A. Side trim screws
15
