Standard Integrated Grille
Installation Requirements
IMPORTANT:
A Standard Integrated Grille installation can be achieved with
either a 24" (60.9 cm) or 25" (63.5 cm) deep opening.
Use the standard grille bracket (provided with refrigerator) to
attach the standard grille.
The grille panel height, shown in the "Standard Integrated
Grille Installation—Side View" graphic, allows for an air gap
critical to refrigerator performance.
Standard Grille Bracket

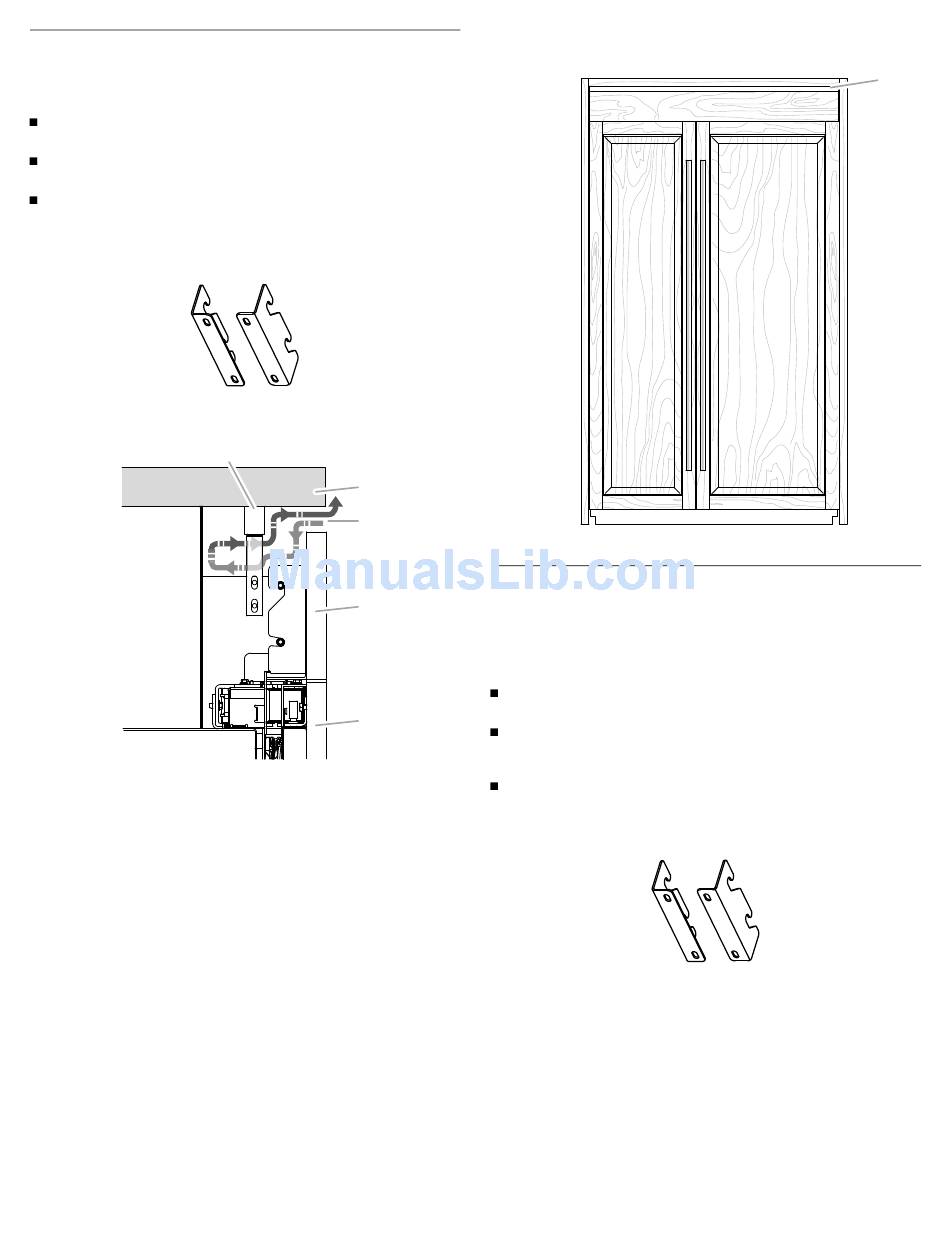

Standard Integrated Grille Installation—Side View
A. Top grille filler
B. Soffit
C. Airflow
12
A
B
C
D
E
D. Grille panel
E. Door panel
Standard Integrated Grille Installation—Full Product
View
Panel Kit Installation
Requirements
See the "Models" section to see the panel kit options available for
your model.
IMPORTANT:
A panel kit installation can be achieved with either a 24"
(60.9 cm) or 25" (63.5 cm) deep opening.
A standard grille is used to achieve a panel kit installation. Use
the standard grille bracket (provided with refrigerator) to
attach the standard grille.
The grille panel height, shown in the "Panel Kit Installation—
Side View" graphic, allows for an air gap critical to refrigerator
performance.
Standard Grille Bracket
C. Airflow
C
