3.2 Installing Compact Flash

1. To install a Compact Flash memory card into EBC 320-JB, align the notches on the card with
the Compact Flash socket in the EBC 320-JB. Then firmly insert the card into the socket until it
is completely seated.
2. To remove the Compact Flash memory card from EBC 340, pull out the memory card from the
Compact Flash socket.

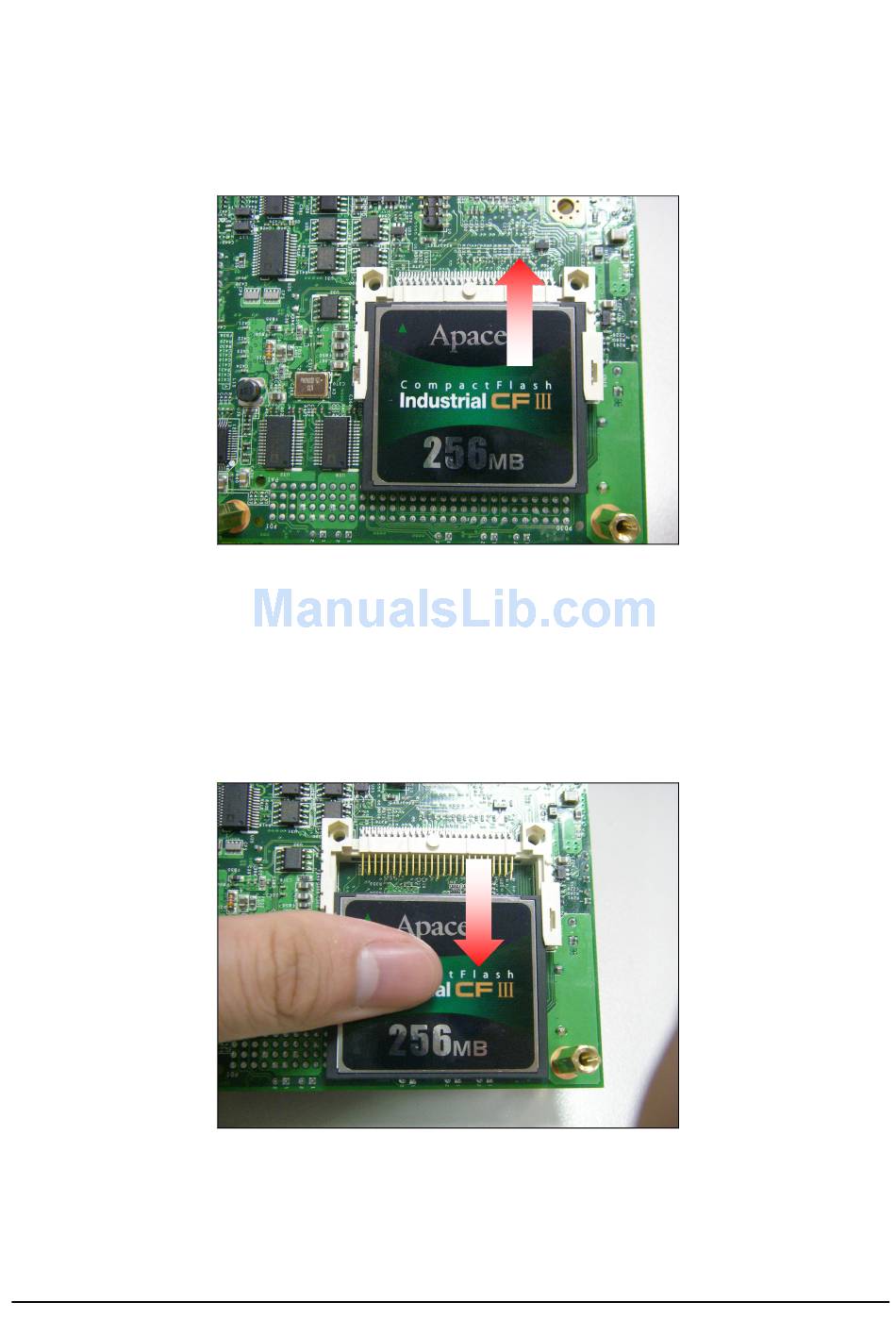

Figure 3-6: How to Uninstall Compact Flash Memory (2)
EBC 340 User's Manual
Figure 3-5: How to Install Compact Flash Memory (1)
