5
SIO_GPI55
7
SIO_GPI56
9
SIO_GPI57

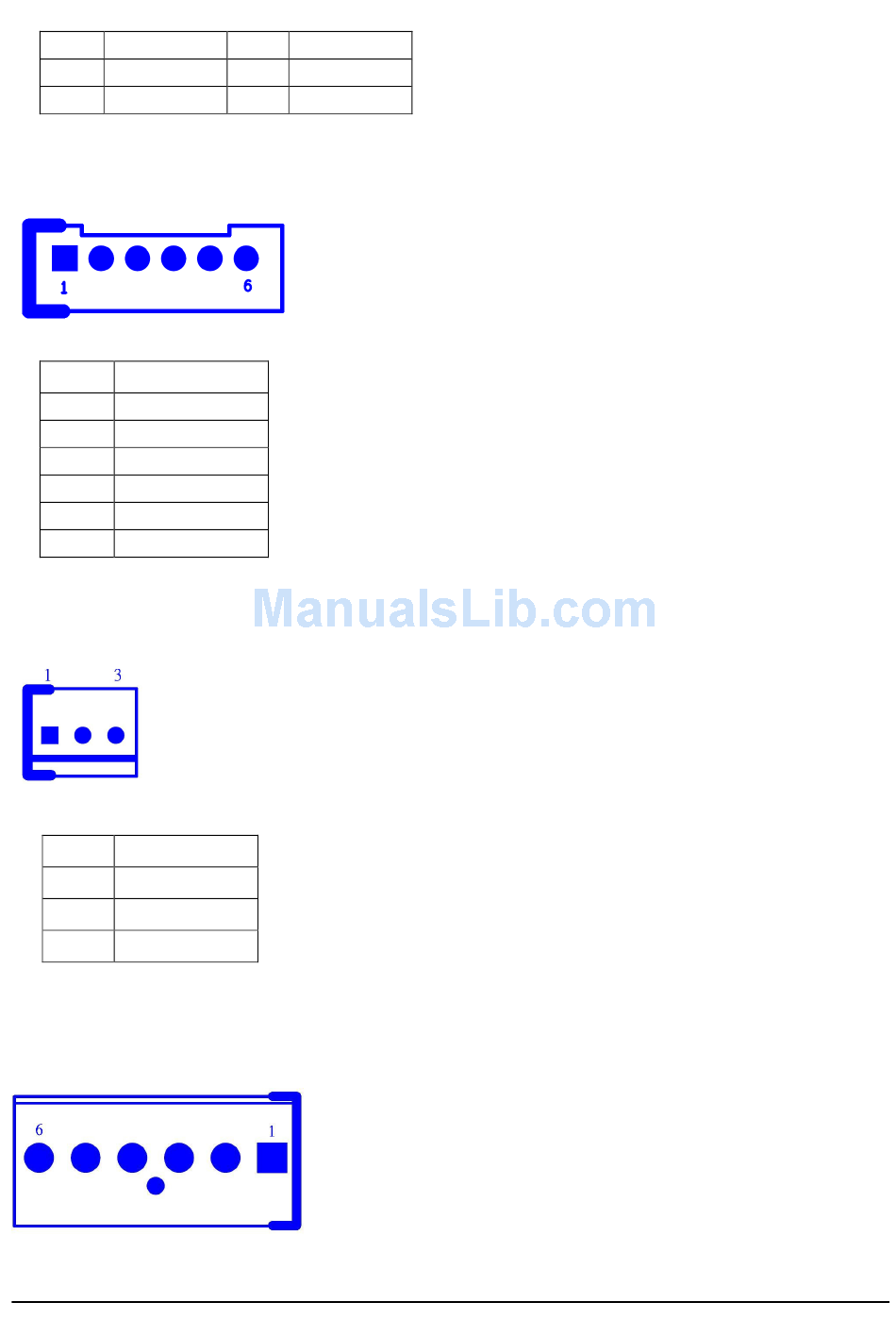

Connector
USB Jst
JST 6 Pins 2.0 Pitch
Pin Definition: J6
Pin NO.
Description
1
P5V_USB_P23
2
USB2-
3
USB2+
4
USB3-
5
USB3+
6
GND
SYSTEM FAN.
FAN (Wafer-2.54mm Male 180)
Pin Definition: FAN1
Pin NO.
Description
1
GND
2
12V
3
SENSE
DC Power input Connector:
1x 6 Pin Power connector:
EBC 340 User's Manual
6
SIO_GPO51
8
SIO_GPO52
10
SIO_GPO53
25
