Pin NO. Description
1 RESET#
2 GND

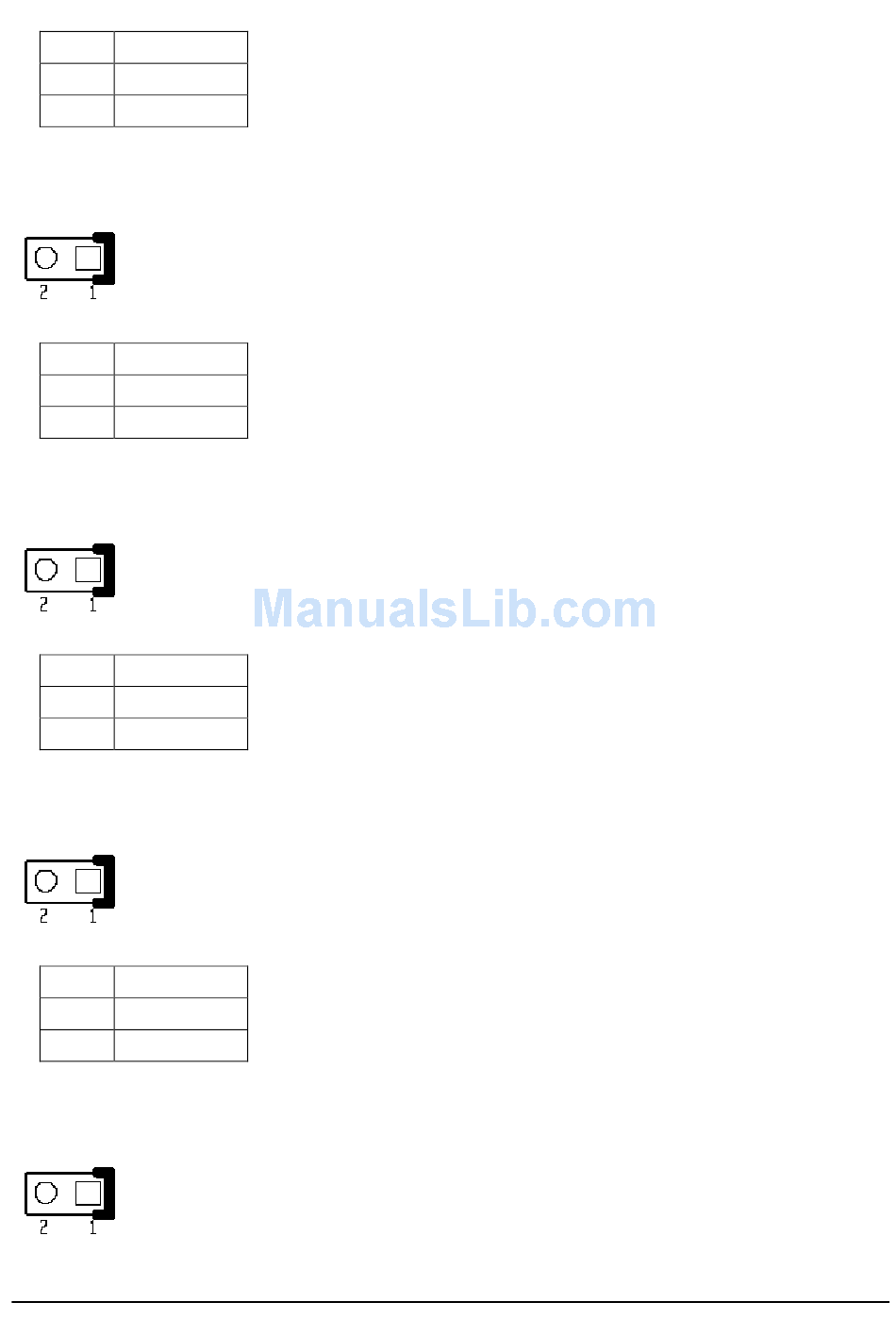

HDD Active LED:
Pin header 1x2 2.0 Pitch.
Pin Definition: JP3
Pin NO. Description
1 VCC5
2 HD_LED#
Power LED:
Pin header 1x2 2.0 Pitch.
Pin Definition: JP4
Pin NO. Description
1 VCC5
2 GND
SMBus:
Pin header 1x2 2.0 Pitch.
Pin Definition: JP5
Pin NO. Description
1 SMB_DATA
2 SMB_CLK
LAN Active LED
Pin header 1x2 2.0 Pitch.
