3.3 Installing Compact Flash

1. To install a Compact Flash memory card into EBC575, reverse the main board. Align the notches on the

Compact Flash memory card with the Compact Flash socket in the EBC575. Firmly insert the card into the

socket until it is completely seated.

2. To remove the Compact Flash memory card from EBC575, pull out the memory card from the Compact

Flash socket.

EBC575 User's Manual

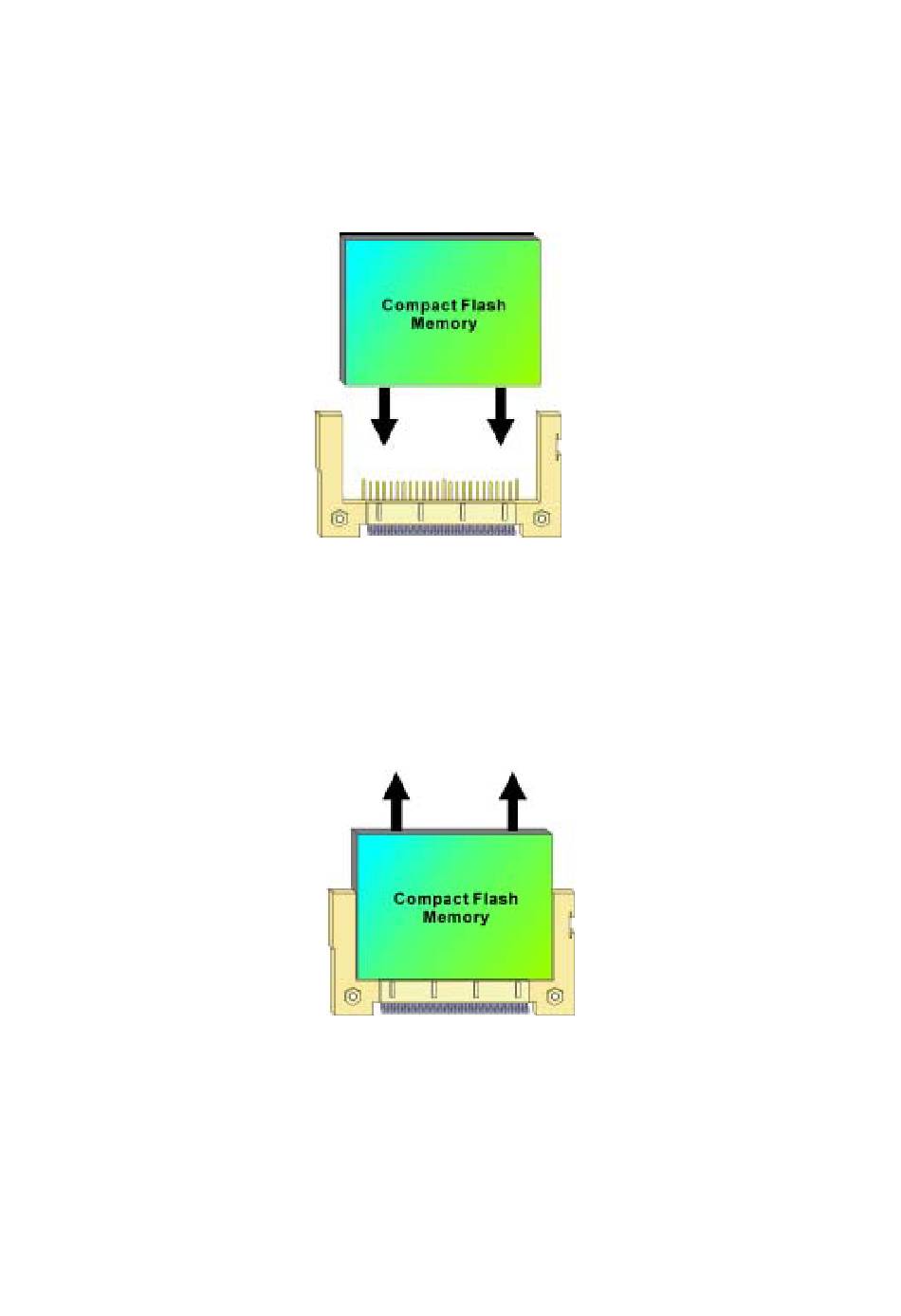

Figure 3-5: How to Install Compact Flash Memory (1)

Figure 3-6: How to Install Compact Flash Memory (2)

Chapter 3
