Nexcom EBC340 User Manual page 19

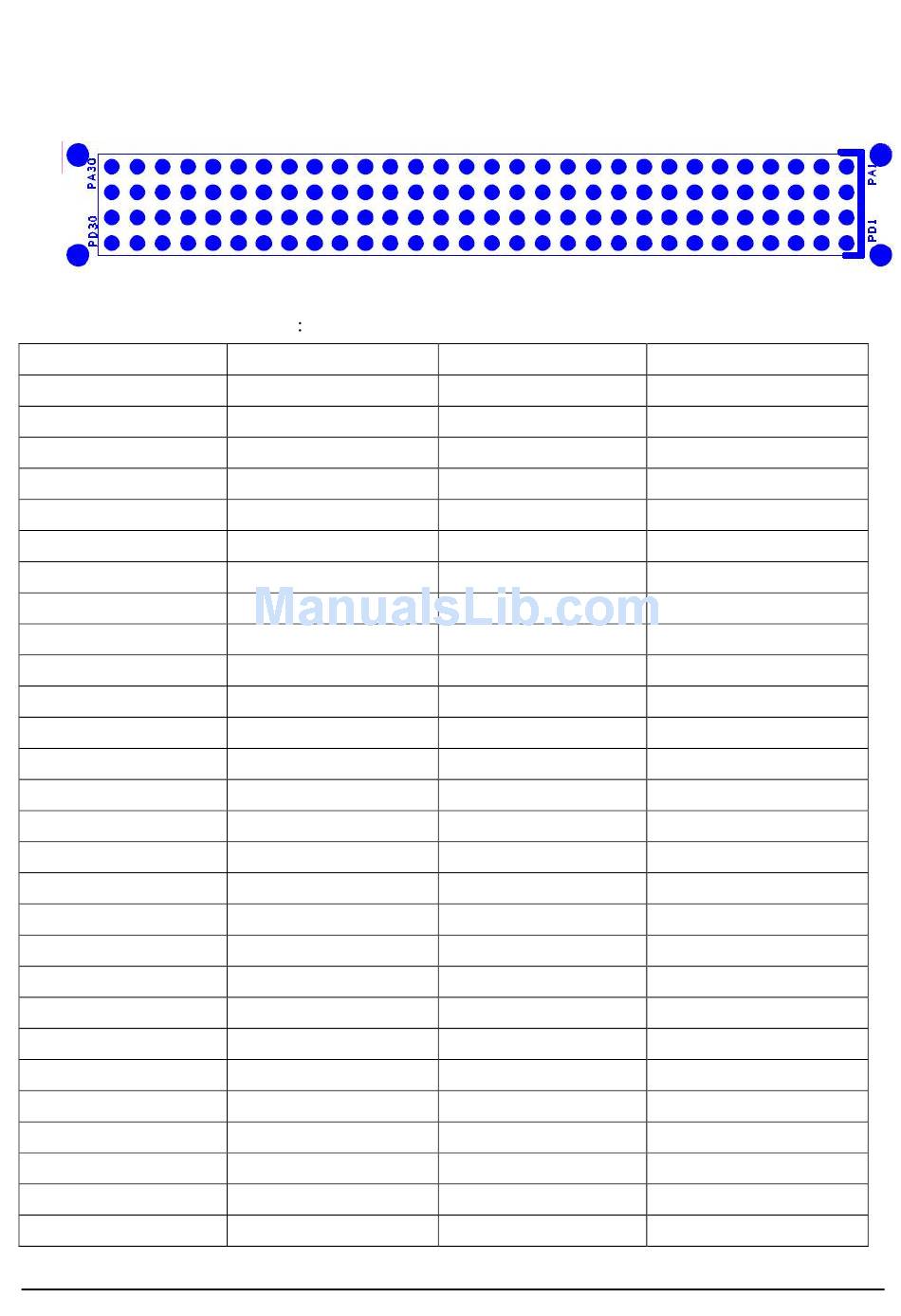

Connector
PCI104
A. Connector size: 4X30 pin
B. Connector location: CN1
C. Connector pin definition
Pin
PA1
PA2
PA3
PA4
PA5
PA6
PA7
PA8
PA9
PA10
PA11
PA12
PA13
PA14
PA15
PA16
PA17
PA18
PA19
PA20
PA21
PA22
PA23
PA24
PA25
PA26
PA27
PA28
EBC 340 User's Manual
Signal
GND
VIO
PCI_AD5
PCI_CBE#0
GND
PCI_AD11
PCI_AD14
VCC3
PCI_SERR#
GND
PCI_STOP#
VCC3
PCI_FRAME#
GND
PCI_AD18
PCI_AD21
VCC3
PCI_104_IDSEL0
PCI_AD24
GND
PCI_AD29
VCC5
PCI_REQ#2
GND
PCI_GNT#3
VCC5
PCI_CLK2
GND
19
Pin
PC1
PC2
PC3
PC4
PC5
PC6
PC7
PC8
PC9
PC10
PC11
PC12
PC13
PC14
PC15
PC16
PC17
PC18
PC19
PC20
PC21
PC22
PC23
PC24
PC25
PC26
PC27
PC28
Signal
VCC5
PCI_AD1
PCI_AD4
GND
PCI_AD8
PCI_AD10
GND
PCI_AD15
NC
VCC3
PCI_LOCK#
GND
PCI_IRDY#
VCC3
PCI_AD17
GND
PCI_AD22
PCI_104_IDSEL1
VIO
PCI_AD25
PCI_AD26
GND
PCI_REQ#3
VCC5
PCI_GNT#4
GND
PCI_CLK3
VCC5
