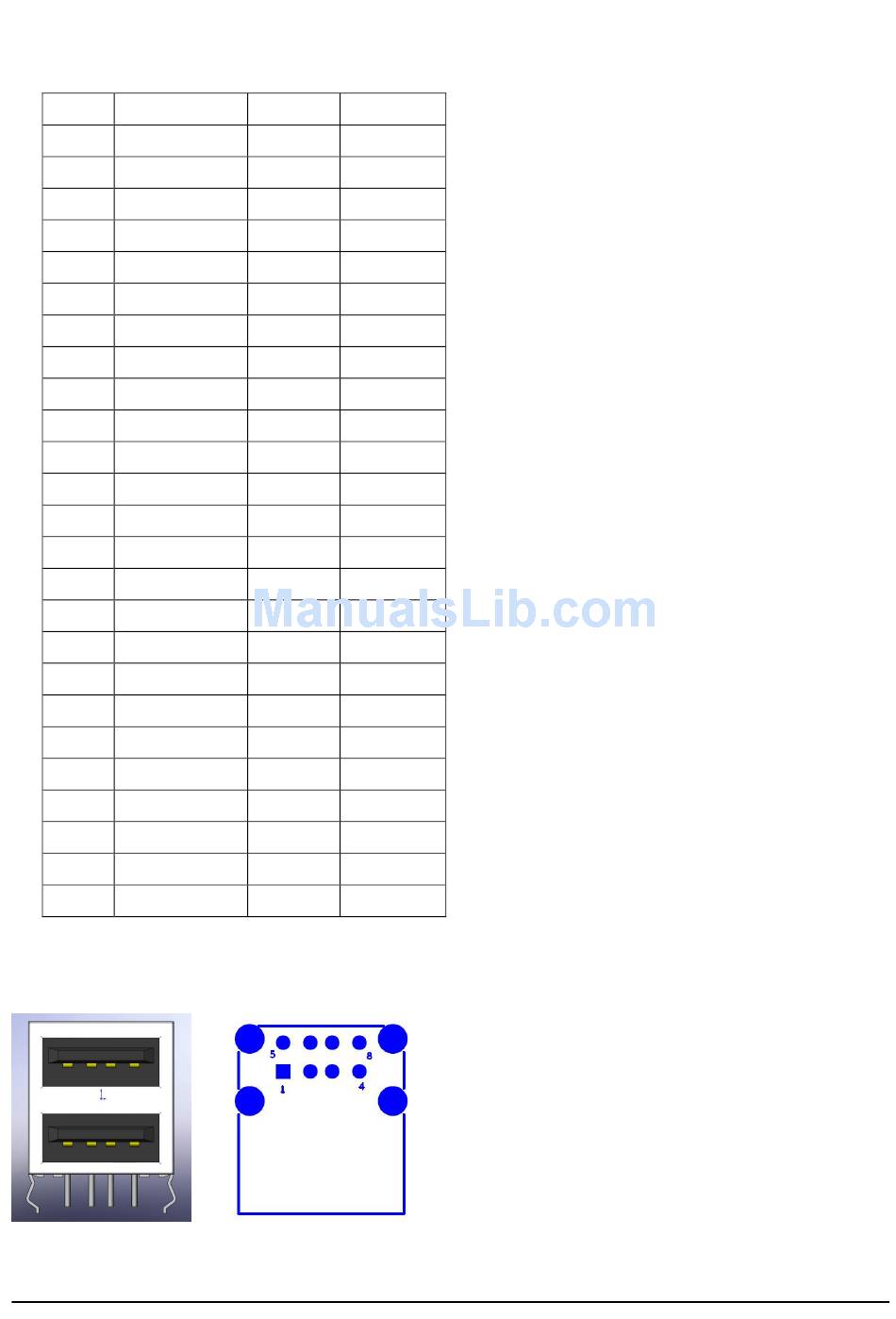

Pin Definition:
Pin NO. Description
1 GND
3 SDD4A
5 SDD6A
7 SDCS#1
9 GND
11 GND
13 VCC
15 GND
17 GND
19 SDA1A
21 SDD0A
23 SDD2A
25 CF_CD2#
27 SDD11A
29 SDD13A
31 SDD15A
33 NC
35 SDIOW#
37 HDIRQ14
39 CF_SEL#
41 IDERST#
43 SDREQ
45 IDEACTP#
47 SDD8A
49 SDD10A
USB Port
CN7 Dual USB port.
Pin Definition:
EBC 340 User's Manual
Pin NO. Description
2 SDD3A
4 SDD5A
6 SDD7A
8 GND
10 GND
12 GND
14 GND
16 GND
18 SDA2A
20 SDA0A
22 SDD1A
24 NC
26 CF_CD1#
28 SDD12A
30 SDD14A
32 SDCS#3
34 SDIOR#
36 VCC
38 VCC
40 NC
42 SIORDY
44 SDDACK#
46 DIAG#
48 SDD9A
50 GND
