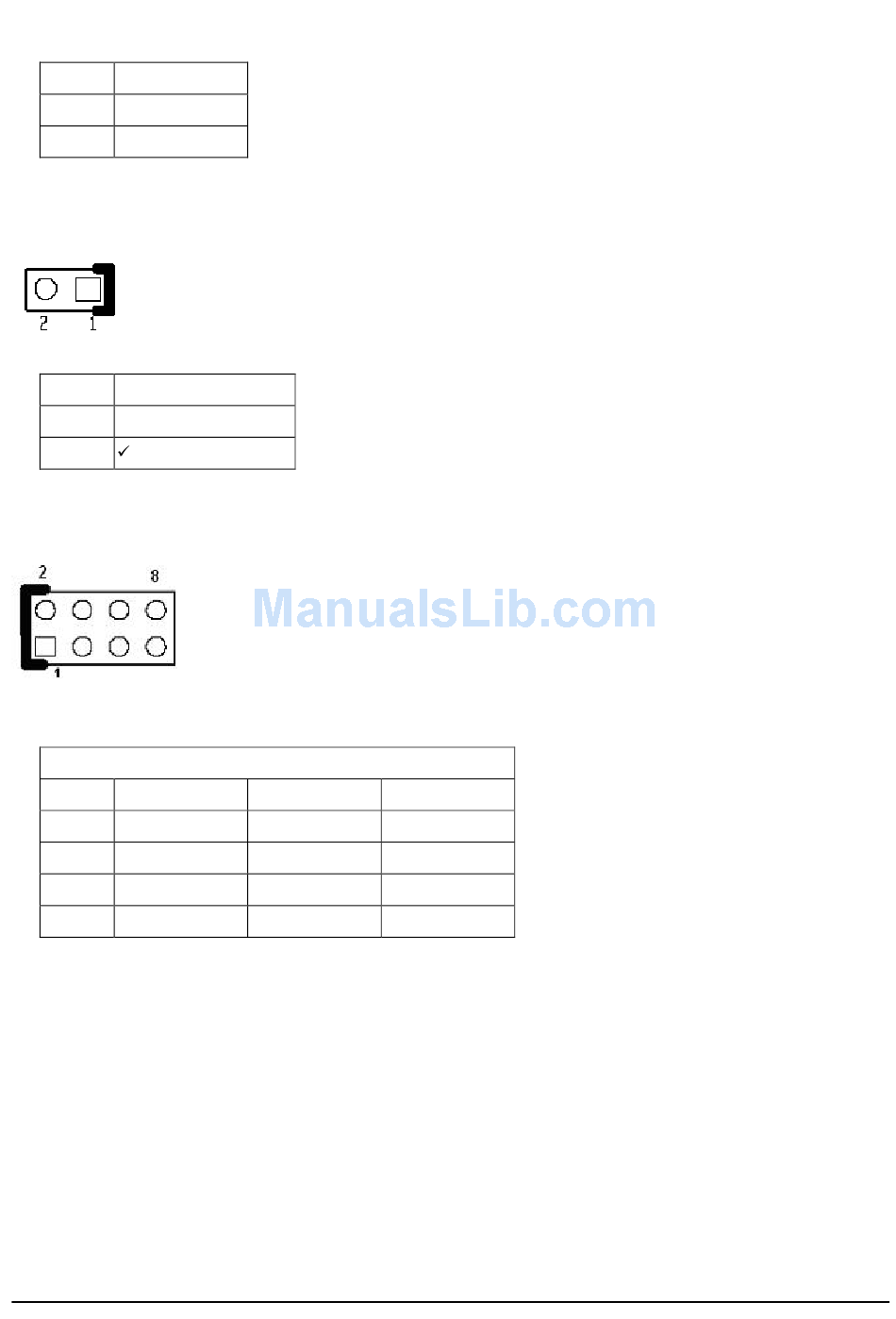

Pin Definition: JP6
Pin NO. Description
1 VCC3
2 LAN1_ACTLED#
LAN Link LED
Pin header 1x2 2.0 Pitch.
Pin Definition: JP7
Pin NO. Description
1 VCC3
2 LAN1_LINKLED#
P/S 2 Keyboard / Mouse
Pin header 2x4 2.54 Pitch.
Pin Definition: JP9
KM1 for Keyboard/ Mouse:
Pin NO. Description
1 VCC5
3 KB_DATA
5 KB_CLK
7 GND
EBC 340 User's Manual
Pin NO. Description
2 VCC5
4 LM_DATA
6 LM_CLK
8 GND
