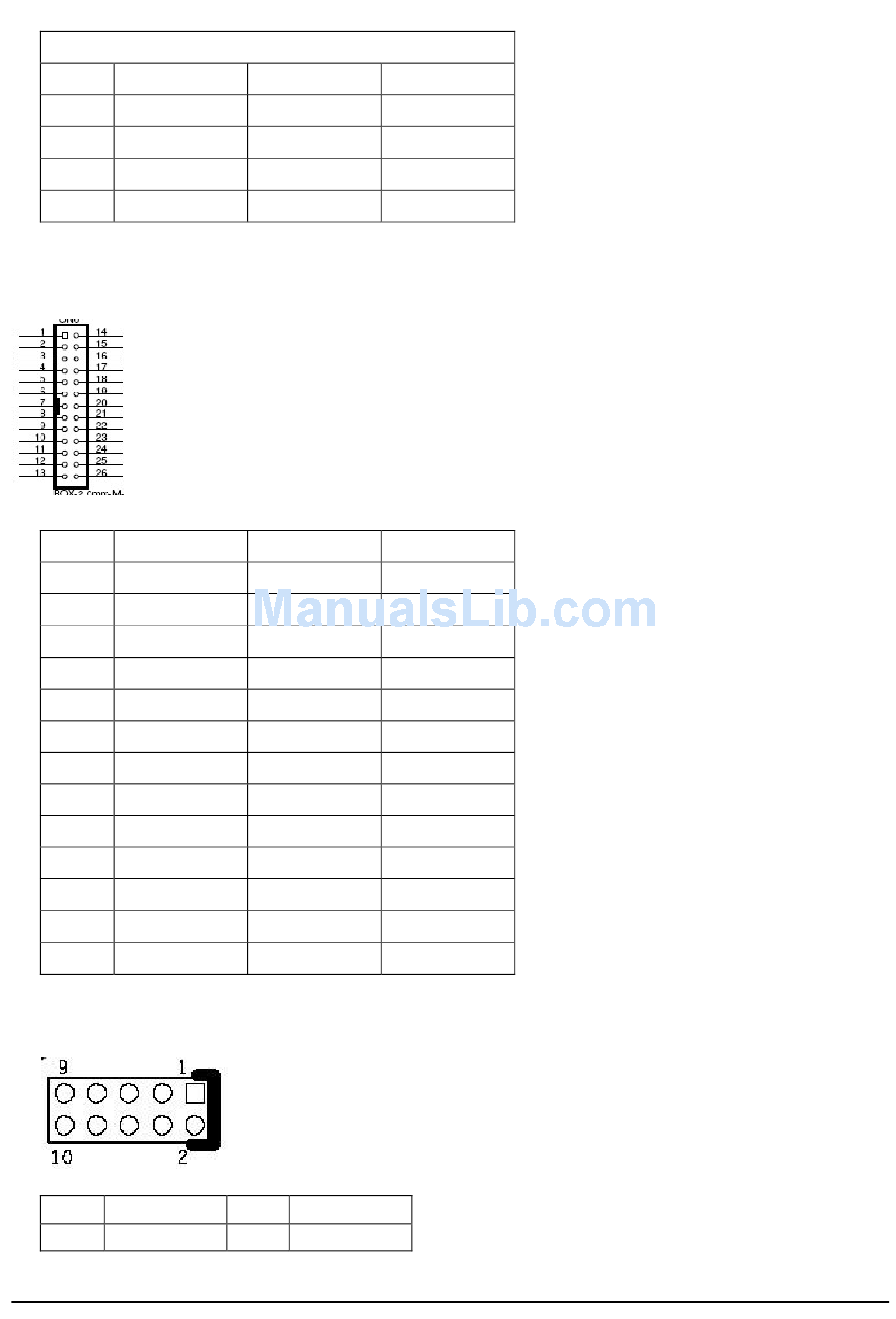

Nexcom EBC340 User Manual page 24

CN7:
Pin NO. Description
1 P5V_USB_P01
2 USB0-
3 USB0+
4 GND
Parallel Interface
CN5 (2.0mm Box Header)
Pin Definition: CN5
Pin NO. Description
1 STB#
2 PD0
3 PD1
4 PD2
5 PD3
6 PD4
7 PD5
8 PD6
9 PD7
10 ACK-
11 BUSY
12 PE
13 SLCT
GPIO connector
2 x 5 2.0mm Pin header
Pin Definition: J5
1 VCC5
3 SIO_GPI54
EBC 340 User's Manual
Pin NO. Description
5 P5V_USB_P01
6 USB1-
7 USB1+
8 GND
Pin NO. Description
14 AFD-
15 ERR-
16 INIT-
17 SLIN-
18 GND
19 GND
20 GND
21 GND
22 GND
23 GND
24 GND
25 GND
26 NC
2 GND
4 SIO_GPO50
24
