TC-W7960

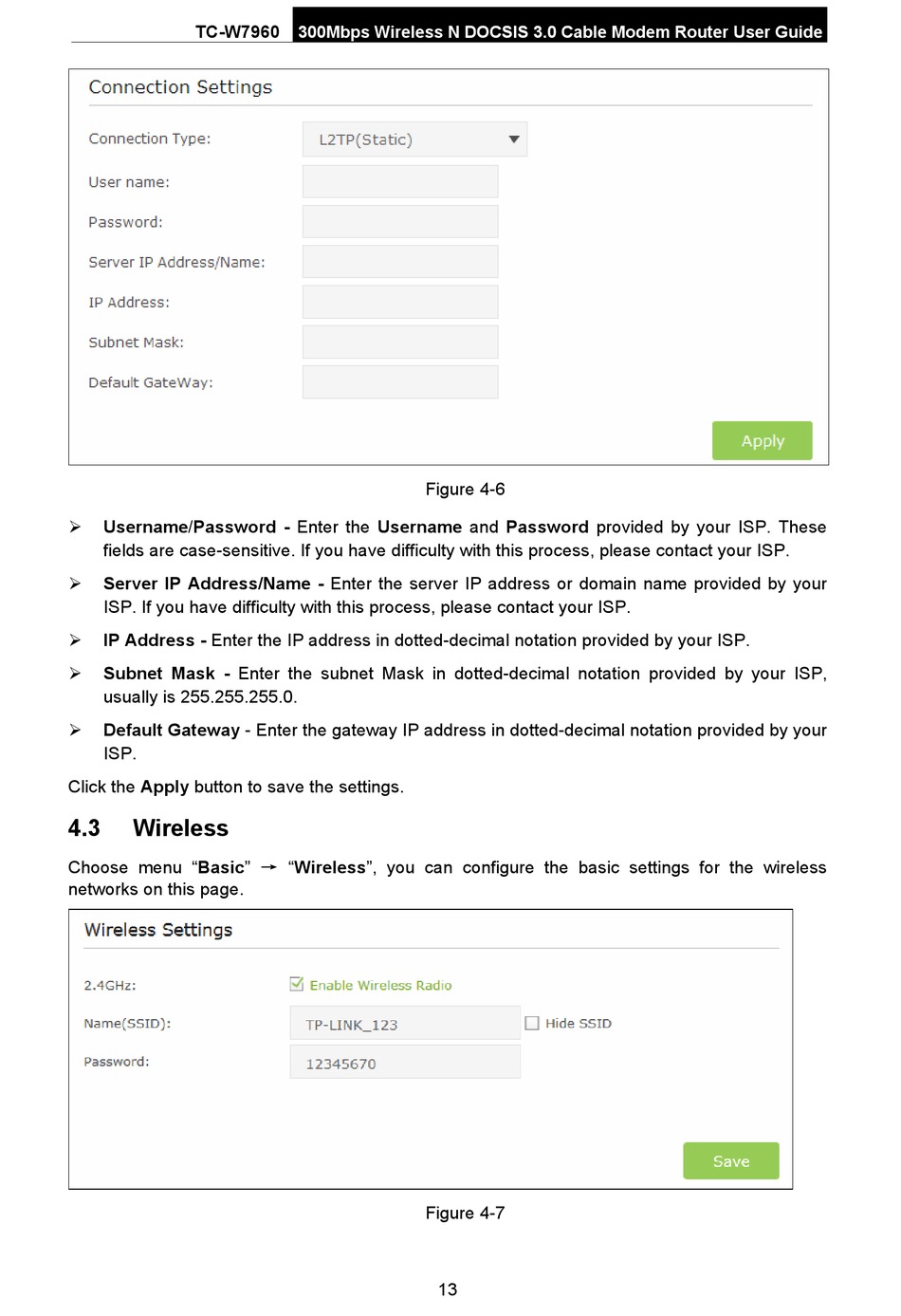

Username/Password - Enter the Username and Password provided by your ISP. These
fields are case-sensitive. If you have difficulty with this process, please contact your ISP.
Server IP Address/Name - Enter the server IP address or domain name provided by your
ISP. If you have difficulty with this process, please contact your ISP.
IP Address - Enter the IP address in dotted-decimal notation provided by your ISP.
Subnet Mask - Enter the subnet Mask in dotted-decimal notation provided by your ISP,
usually is 255.255.255.0.
Default Gateway - Enter the gateway IP address in dotted-decimal notation provided by your
ISP.
Click the Apply button to save the settings.
4.3
Wireless
Choose menu "Basic" → "Wireless", you can configure the basic settings for the wireless
networks on this page.
300Mbps Wireless N DOCSIS 3.0 Cable Modem Router User Guide
Figure 4-6
Figure 4-7
13
