TC-W7960

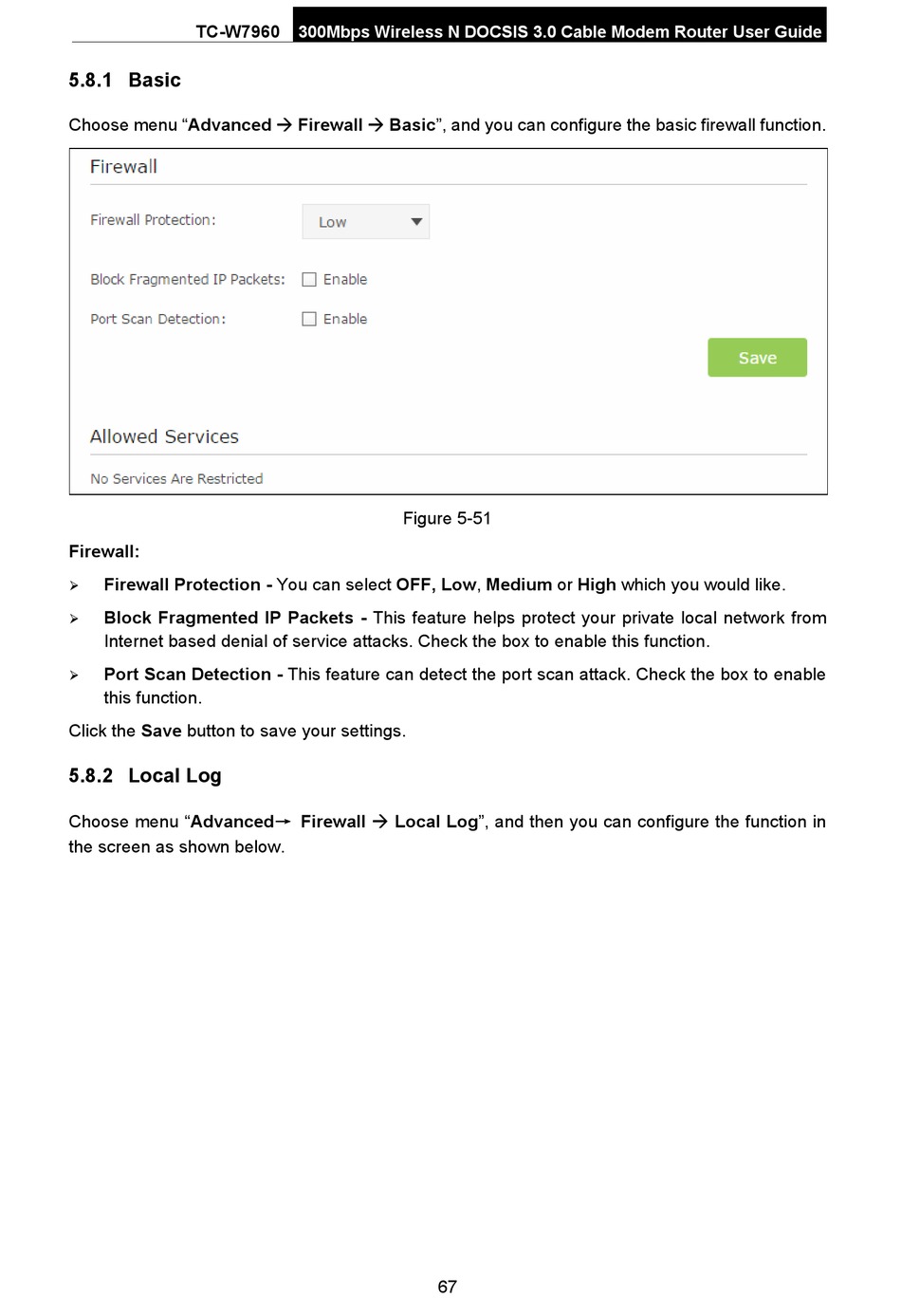

5.8.1 Basic

Choose menu "Advanced  Firewall  Basic", and you can configure the basic firewall function.
Firewall:
Firewall Protection - You can select OFF, Low, Medium or High which you would like.

Block Fragmented IP Packets - This feature helps protect your private local network from

Internet based denial of service attacks. Check the box to enable this function.
Port Scan Detection - This feature can detect the port scan attack. Check the box to enable

this function.
Click the Save button to save your settings.

5.8.2 Local Log

Choose menu "Advanced→ Firewall  Local Log", and then you can configure the function in
the screen as shown below.
300Mbps Wireless N DOCSIS 3.0 Cable Modem Router User Guide
Figure 5-51
67
