TC-W7960
 User name/Password - Enter the Username and Password provided by your ISP. These
fields are case-sensitive. If you have difficulty with this process, please contact your ISP.
 Server IP Address/Name - Enter the server IP address or domain name provided by your
ISP. If you have difficulty with this process, please contact your ISP.
 IP Address - Enter the IP address in dotted-decimal notation provided by your ISP.
 Subnet Mask - Enter the subnet Mask in dotted-decimal notation provided by your ISP,
usually is 255.255.255.0.
 Default Gateway - Enter the gateway IP address in dotted-decimal notation provided by your
ISP.
 Current used MAC Address - This field displays the current MAC address of the Internet
port.
 MAC Clone - You can select one of below methods to change MAC address for this WAN
Interface depend on your needs. If you select Use this MAC Address, you can enter the
MAC Address you want to change.
Click the Apply button to save the settings.

5.3.2 LAN Settings

Choose "AdvancedNetworkLAN Settings" menu, and you will see the LAN screen shown
below. Please configure the parameters for LAN ports according to the descriptions below.
300Mbps Wireless N DOCSIS 3.0 Cable Modem Router User Guide

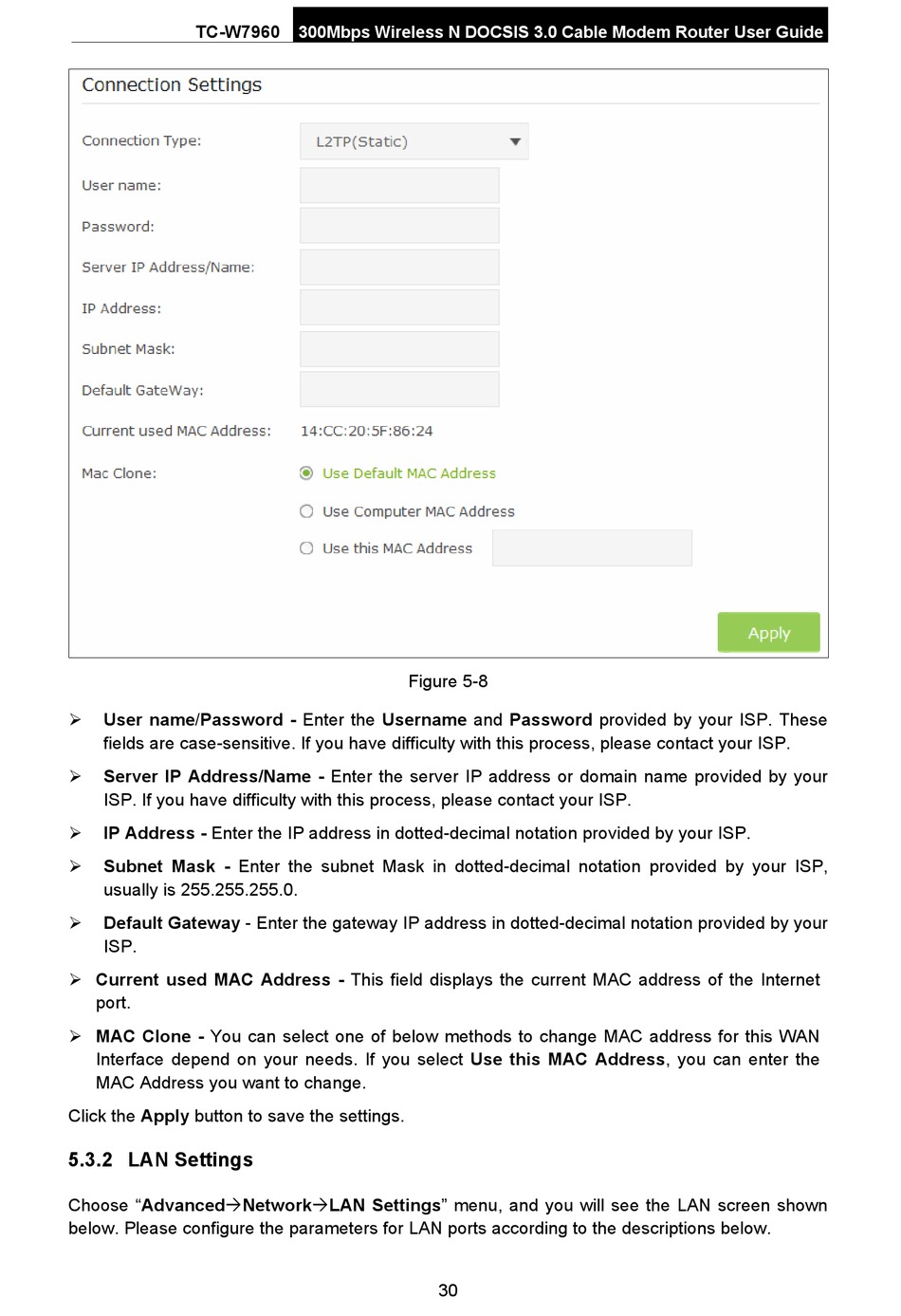

Figure 5-8
30
