TP-Link TC-W7960 User Manual page 36

TC-W7960
 User name/Password - Enter the Username and Password provided by your ISP. These
fields are case-sensitive. If you have difficulty with this process, please contact your ISP.
 Server IP Address/Name - Enter the server IP address or domain name provided by your
ISP. If you have difficulty with this process, please contact your ISP.
 Current used MAC Address - This field displays the current MAC address of the Internet
port.
MAC Clone - You can select one of below methods to change MAC address for this WAN

Interface depend on your needs. If you select Use this MAC Address, you can enter the MAC
Address you want to change.
Click the Apply button to save the settings.
4) L2TP(Static)
Choose L2TP(Static) in the drop-down list if your ISP provides L2TP(Static IP) information to you.
You should set User name, Password, Server IP Address/Name, IP Address, Subnet Mask and
Default Gateway in the screen below.
300Mbps Wireless N DOCSIS 3.0 Cable Modem Router User Guide

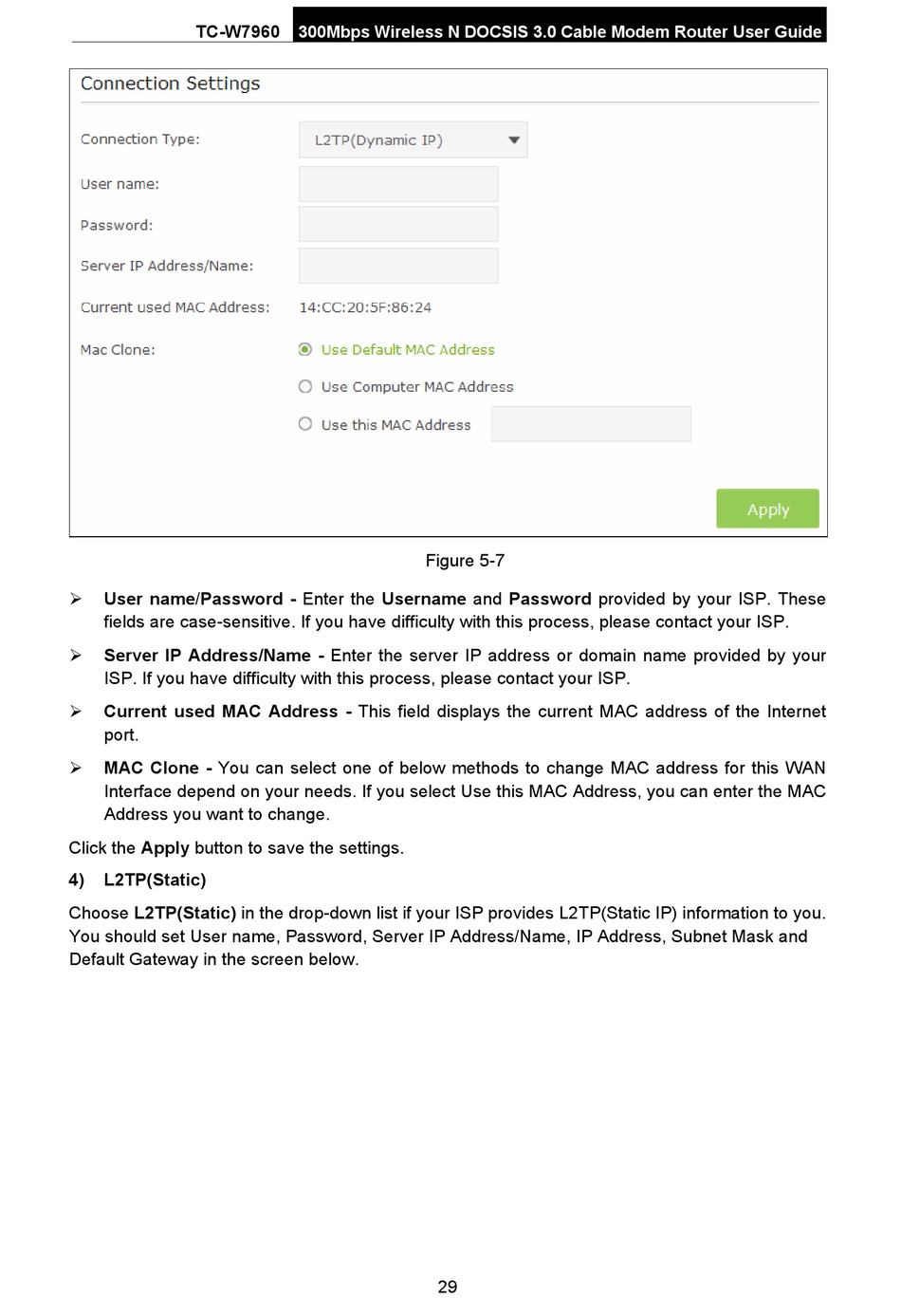

Figure 5-7
29
