TC-W7960

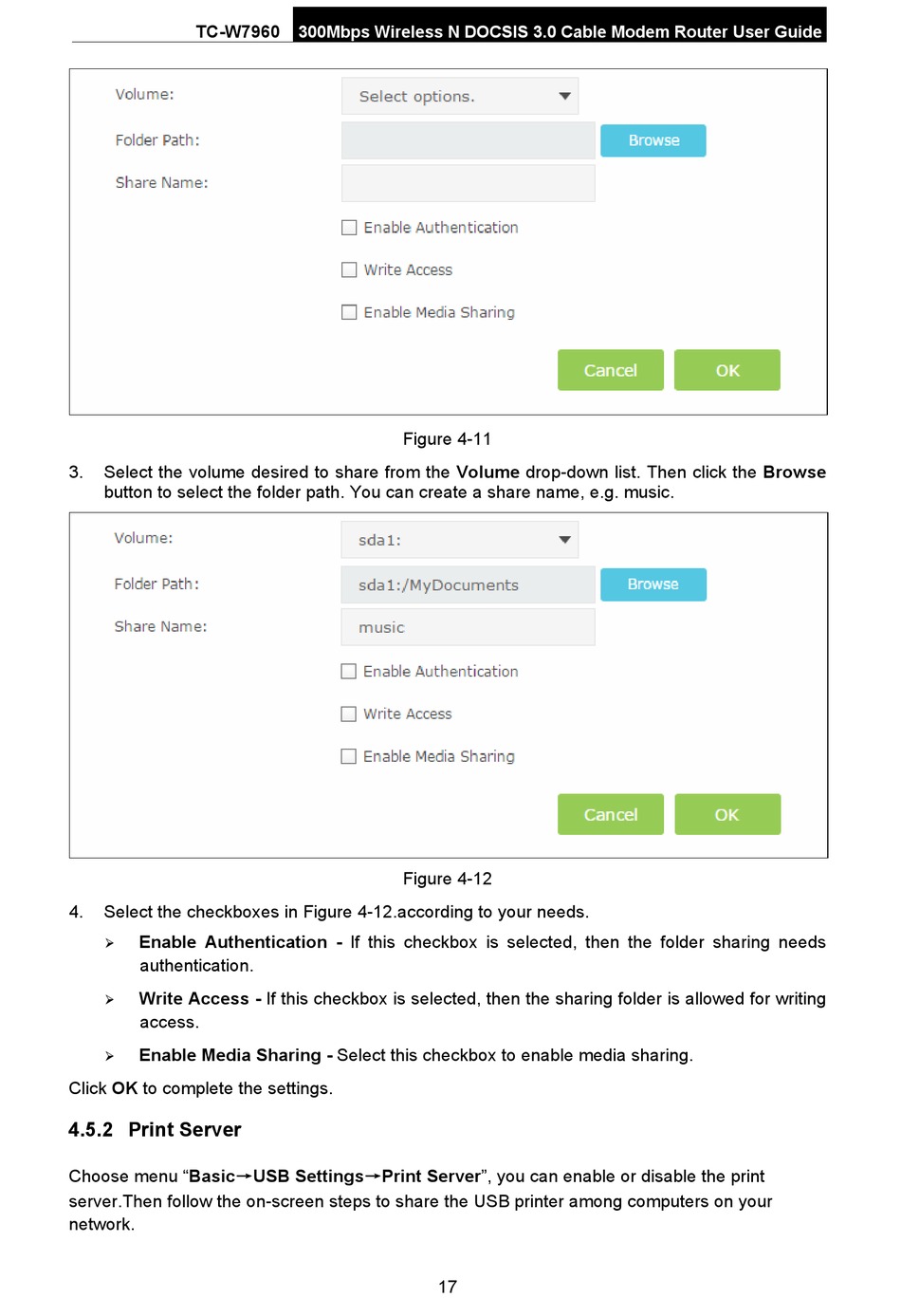

3.
Select the volume desired to share from the Volume drop-down list. Then click the Browse
button to select the folder path. You can create a share name, e.g. music.
4.
Select the checkboxes in Figure 4-12.according to your needs.
Enable Authentication - If this checkbox is selected, then the folder sharing needs
authentication.
Write Access - If this checkbox is selected, then the sharing folder is allowed for writing
access.
Enable Media Sharing - Select this checkbox to enable media sharing.
Click OK to complete the settings.
4.5.2 Print Server
Choose menu "Basic→USB Settings→Print Server", you can enable or disable the print
server.Then follow the on-screen steps to share the USB printer among computers on your
network.
300Mbps Wireless N DOCSIS 3.0 Cable Modem Router User Guide
Figure 4-11
Figure 4-12
17
