TC-W7960
WPA-PSK/WPA2-PSK encryptions provide user networks with active defense against
security threats
Parental Controls allow parents or administrators to establish restricted access policies for
children or staff

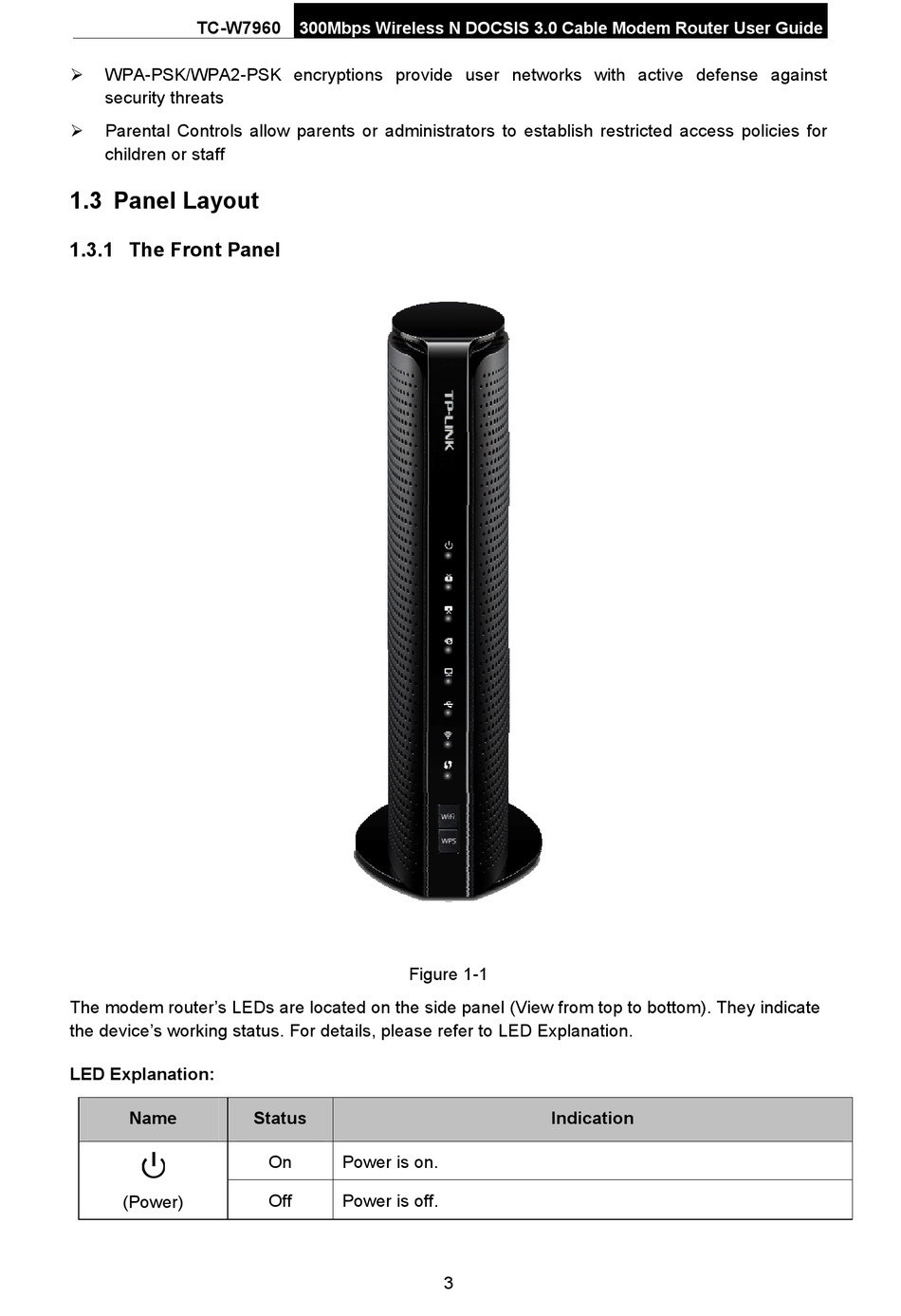

1.3 Panel Layout
1.3.1 The Front Panel
The modem router's LEDs are located on the side panel (View from top to bottom). They indicate
the device's working status. For details, please refer to LED Explanation.
LED Explanation:
Name
(Power)
300Mbps Wireless N DOCSIS 3.0 Cable Modem Router User Guide
Figure 1-1
Status
On
Power is on.
Off
Power is off.
Indication
3
