TP-Link TC-W7960 User Manual page 26

TC-W7960
Parental Control:
Enable Parental Control - The switch for the parental control. If you turn on the switch, the

field will become green.
Devices Under Parental Control:
Add - You can click the button to add a new device for the parental control.

Delete - You can click the button to delete the selected entries.

 Device Name -The name used for identifying a device.
MAC Address - This field displays the MAC address of the PC that is managing this modem

router.
Effective Time - The time period allowed for the PC controlled to access the Internet. You

can click the
Description - Here displays the description about the parental control and this description is

unique.
Enable – Click the

will become .
300Mbps Wireless N DOCSIS 3.0 Cable Modem Router User Guide
icon to configure the time period.
icon to enable the function. If this function has taken effect, the icon

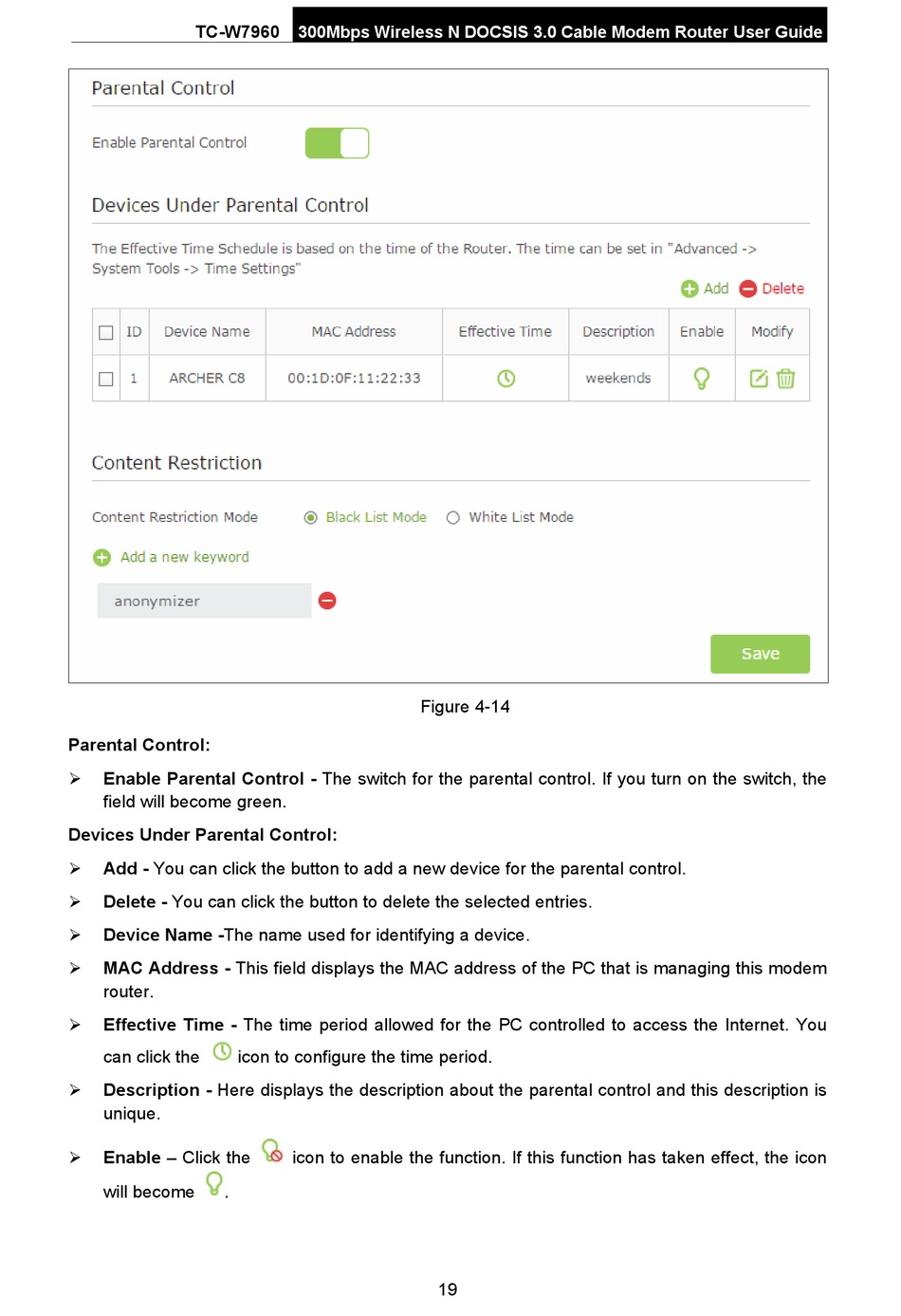

Figure 4-14
19
