Port Forwarding - TP-Link TC-W7960 User Manual

TC-W7960
5. Click the OK button to save this entry. If you do not want to save this entry, click the Cancel
button.

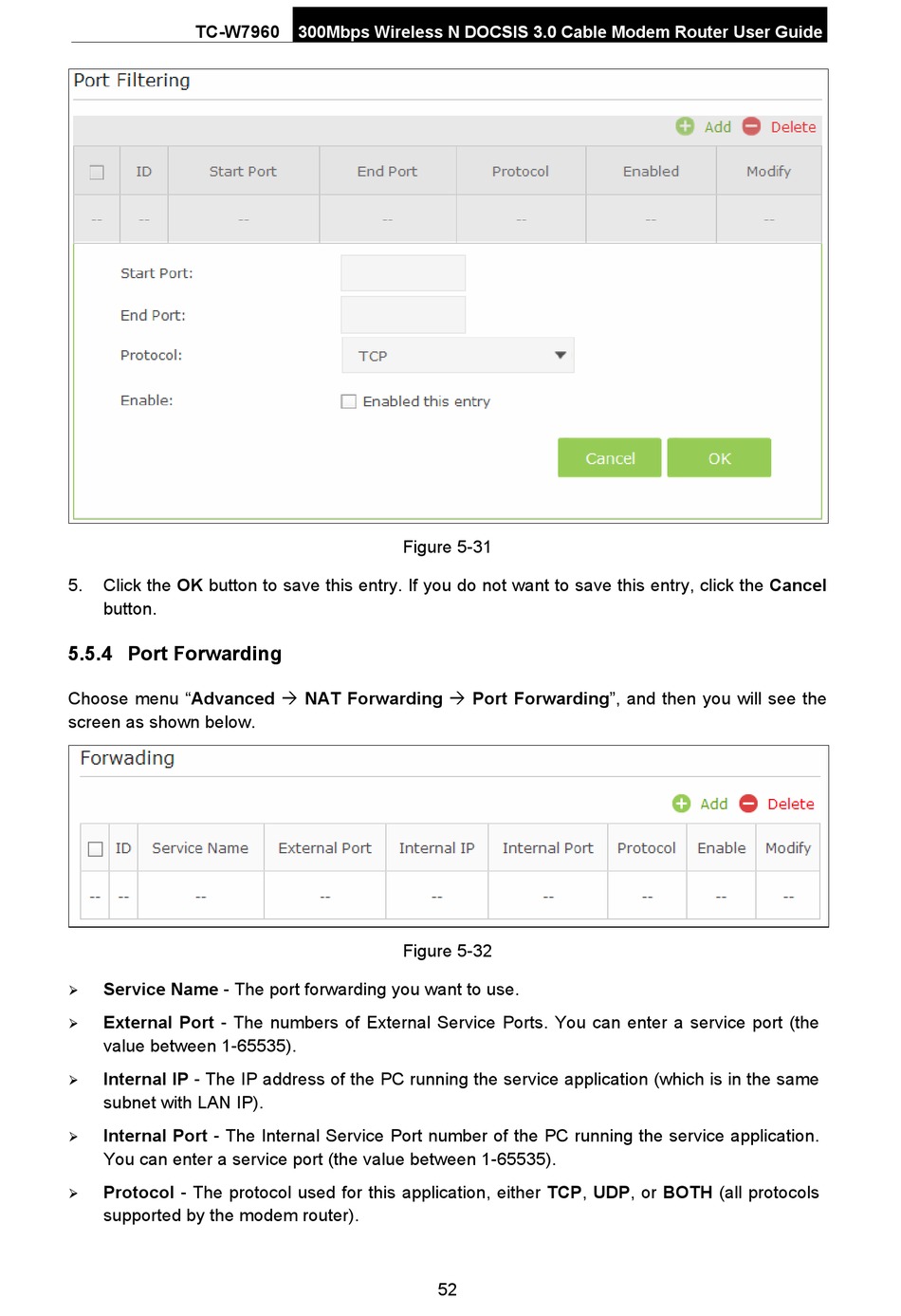

5.5.4 Port Forwarding

Choose menu "Advanced  NAT Forwarding  Port Forwarding", and then you will see the
screen as shown below.
Service Name - The port forwarding you want to use.

External Port - The numbers of External Service Ports. You can enter a service port (the

value between 1-65535).
Internal IP - The IP address of the PC running the service application (which is in the same

subnet with LAN IP).
Internal Port - The Internal Service Port number of the PC running the service application.

You can enter a service port (the value between 1-65535).
Protocol - The protocol used for this application, either TCP, UDP, or BOTH (all protocols

supported by the modem router).
300Mbps Wireless N DOCSIS 3.0 Cable Modem Router User Guide
Figure 5-31
Figure 5-32
52
