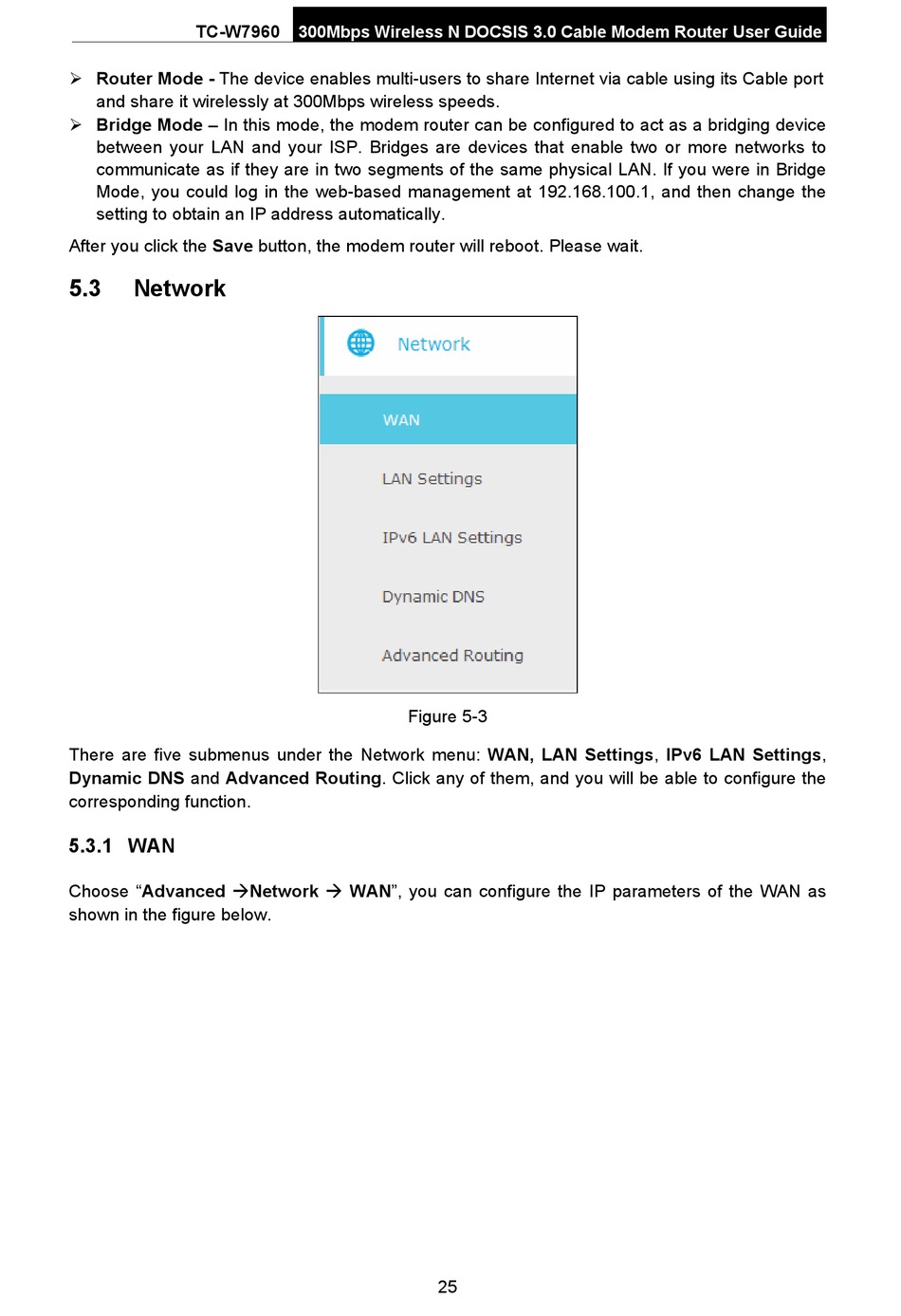

Network; Wan - TP-Link TC-W7960 User Manual

TC-W7960
 Router Mode - The device enables multi-users to share Internet via cable using its Cable port
and share it wirelessly at 300Mbps wireless speeds.
 Bridge Mode – In this mode, the modem router can be configured to act as a bridging device
between your LAN and your ISP. Bridges are devices that enable two or more networks to
communicate as if they are in two segments of the same physical LAN. If you were in Bridge
Mode, you could log in the web-based management at 192.168.100.1, and then change the
setting to obtain an IP address automatically.
After you click the Save button, the modem router will reboot. Please wait.
5.3

Network

There are five submenus under the Network menu: WAN, LAN Settings, IPv6 LAN Settings,
Dynamic DNS and Advanced Routing. Click any of them, and you will be able to configure the
corresponding function.

5.3.1 WAN

Choose "Advanced Network  WAN", you can configure the IP parameters of the WAN as
shown in the figure below.
300Mbps Wireless N DOCSIS 3.0 Cable Modem Router User Guide
Figure 5-3
25
