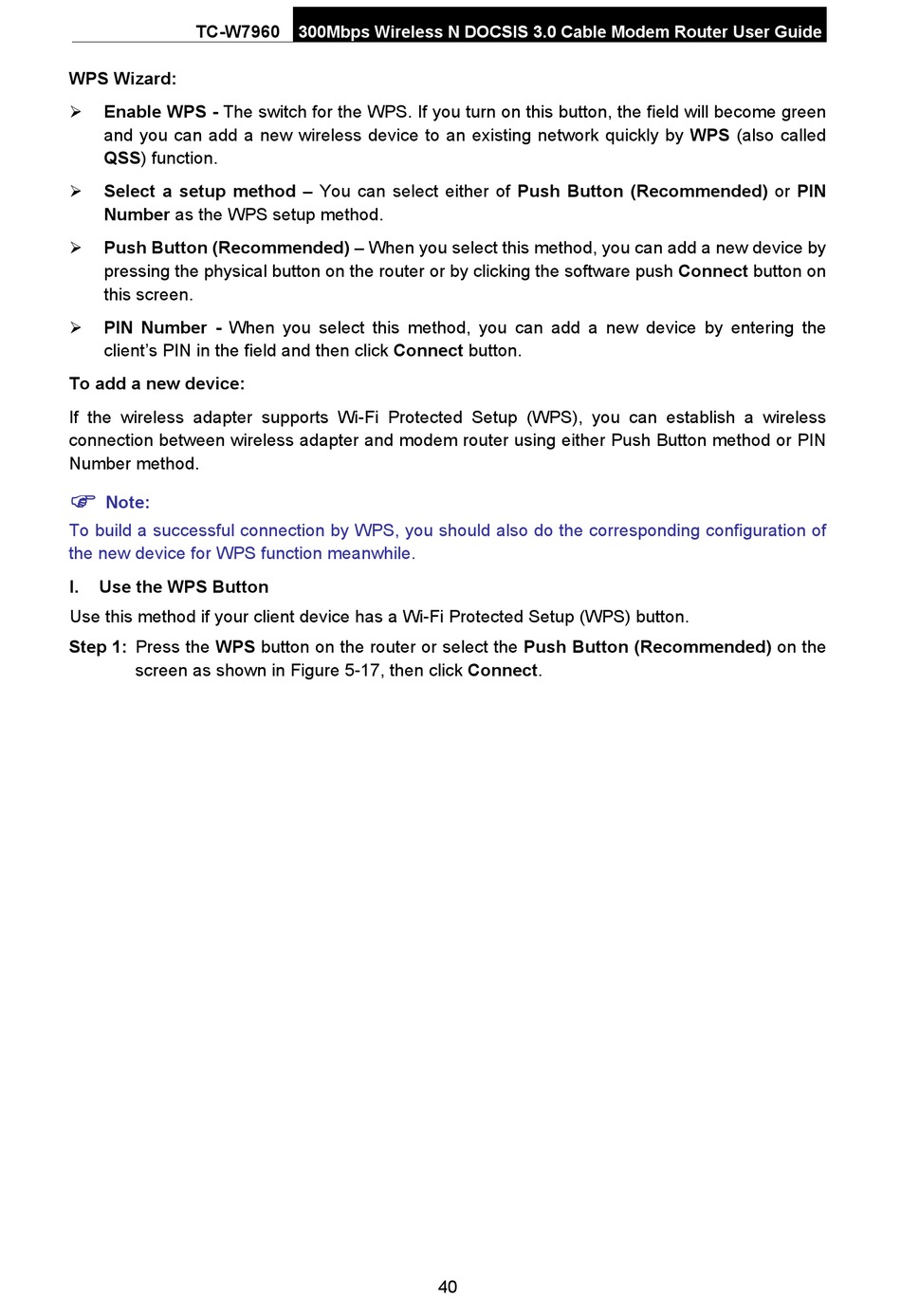

TP-Link TC-W7960 User Manual page 47

TC-W7960
WPS Wizard:
Enable WPS - The switch for the WPS. If you turn on this button, the field will become green

and you can add a new wireless device to an existing network quickly by WPS (also called
QSS) function.
 Select a setup method – You can select either of Push Button (Recommended) or PIN
Number as the WPS setup method.
Push Button (Recommended) – When you select this method, you can add a new device by

pressing the physical button on the router or by clicking the software push Connect button on
this screen.
PIN Number - When you select this method, you can add a new device by entering the

client's PIN in the field and then click Connect button.
To add a new device:
If the wireless adapter supports Wi-Fi Protected Setup (WPS), you can establish a wireless
connection between wireless adapter and modem router using either Push Button method or PIN
Number method.

Note:
To build a successful connection by WPS, you should also do the corresponding configuration of
the new device for WPS function meanwhile.
I. Use the WPS Button
Use this method if your client device has a Wi-Fi Protected Setup (WPS) button.
Step 1: Press the WPS button on the router or select the Push Button (Recommended) on the
screen as shown in Figure 5-17, then click Connect.
300Mbps Wireless N DOCSIS 3.0 Cable Modem Router User Guide
40
