TP-Link TC-W7960 User Manual page 38

TC-W7960
LAN Settings:
 IP Address - Enter the modem router's local IP Address, then you can access to the
Web-based management page via the IP Address, the default value is 192.168.1.1.
 MAC Address - The physical address of the modem router, as seen from the LAN. The
value can't be changed.
DHCP Settings:
 DHCP Sever – Check the box to enable this function. If DHCP Server is enabled, the modem
router will work as a DHCP server, which provides the TCP/IP configuration for all the PC(s)
that are connected to it on the LAN.
 Start IP Address - Enter a value for the DHCP server to start with when issuing IP
addresses.
End IP Address - Enter a value for the DHCP server to end with when issuing IP addresses.

300Mbps Wireless N DOCSIS 3.0 Cable Modem Router User Guide

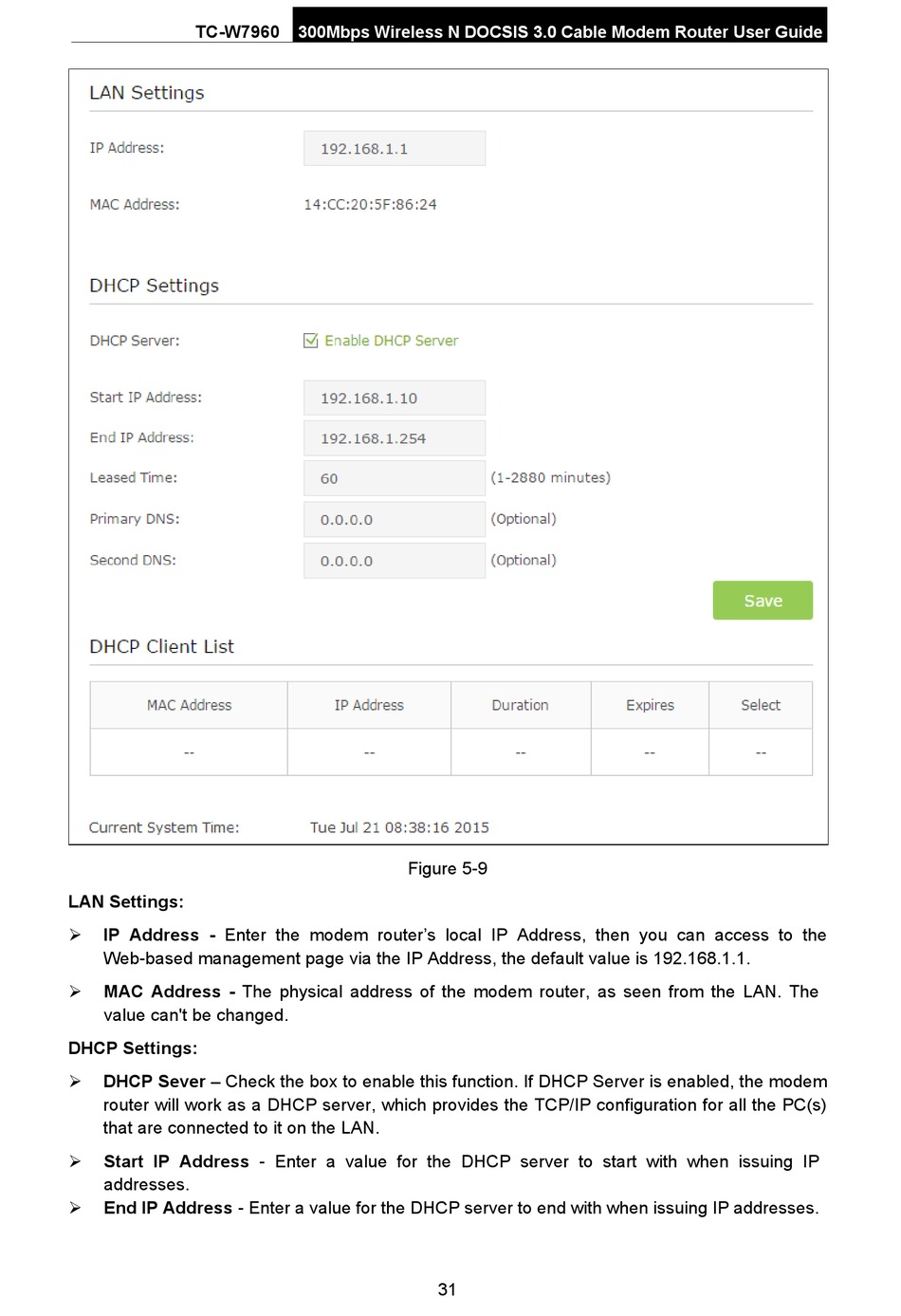

Figure 5-9
31
