TC-W7960

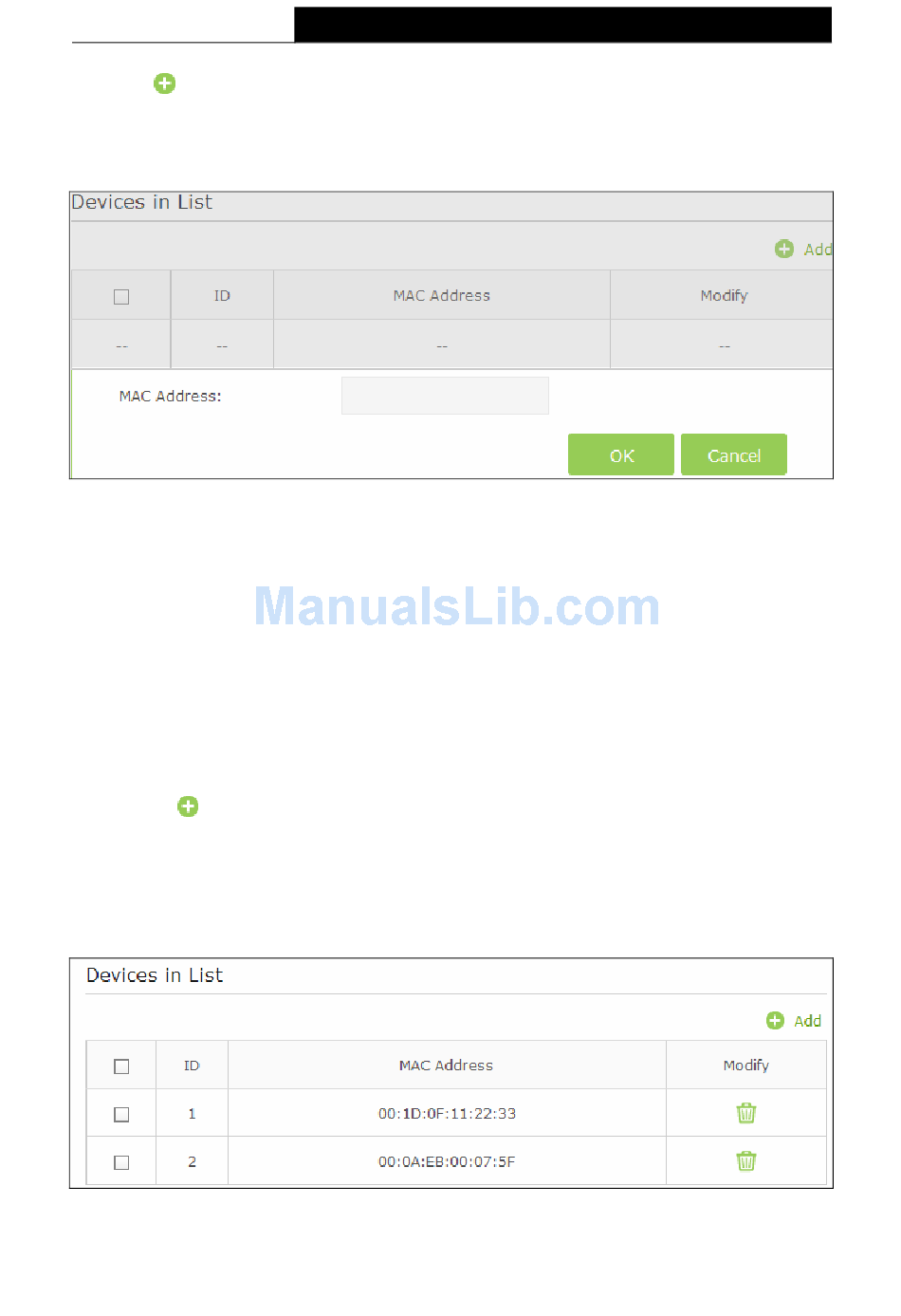

1. Click Add button, then you will see a setting page.
2. Enter the appropriate MAC Address into the MAC Address field. The format of the MAC
Address is XX-XX-XX-XX-XX-XX
00-1D-0F-11-22-33.
3. Click the OK button to save this entry. If you do not want to save this entry, click the Cancel
button.
For example: If you desire that the wireless station A with MAC address 00-1D-0F-11-22-33 and
the wireless station B with MAC address 00-0A-EB-00-07-5F are able to access the modem router,
but all the other wireless stations cannot access the modem router, you can configure the MAC
Filtering settings by following these steps:
1. Switch on the Enable MAC Filtering button to enable this function.
2. Select the White List for Filtering Rules.
3. Delete all or disable all entries if there are any entries already.
4. Click the Add button.
1) Enter the MAC address 00-1D-0F-11-22-33/00-0A-EB-00-07-5F in the MAC Address
field.
2) Click the OK button.
The filtering rules that configured should be similar to the following figure:
300Mbps Wireless N DOCSIS 3.0 Cable Modem Router User Guide
(X is
Figure 5-21
Figure 5-22
45
any hexadecimal digit). For example:
