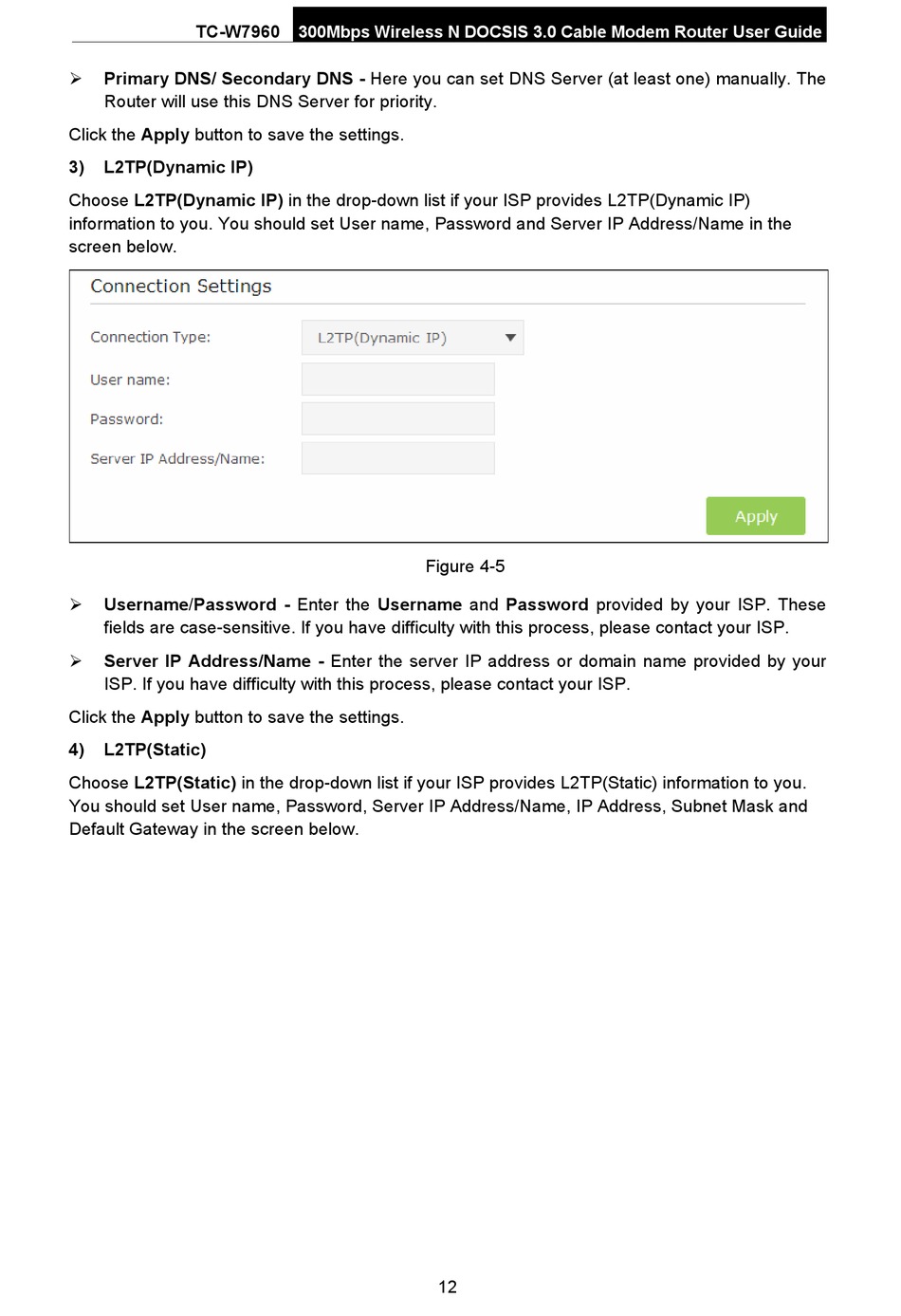

TP-Link TC-W7960 User Manual page 19

TC-W7960
 Primary DNS/ Secondary DNS - Here you can set DNS Server (at least one) manually. The
Router will use this DNS Server for priority.
Click the Apply button to save the settings.
3) L2TP(Dynamic IP)
Choose L2TP(Dynamic IP) in the drop-down list if your ISP provides L2TP(Dynamic IP)
information to you. You should set User name, Password and Server IP Address/Name in the
screen below.
 Username/Password - Enter the Username and Password provided by your ISP. These
fields are case-sensitive. If you have difficulty with this process, please contact your ISP.
 Server IP Address/Name - Enter the server IP address or domain name provided by your
ISP. If you have difficulty with this process, please contact your ISP.
Click the Apply button to save the settings.
4) L2TP(Static)
Choose L2TP(Static) in the drop-down list if your ISP provides L2TP(Static) information to you.
You should set User name, Password, Server IP Address/Name, IP Address, Subnet Mask and
Default Gateway in the screen below.
300Mbps Wireless N DOCSIS 3.0 Cable Modem Router User Guide
Figure 4-5
12
