SEA FURY.

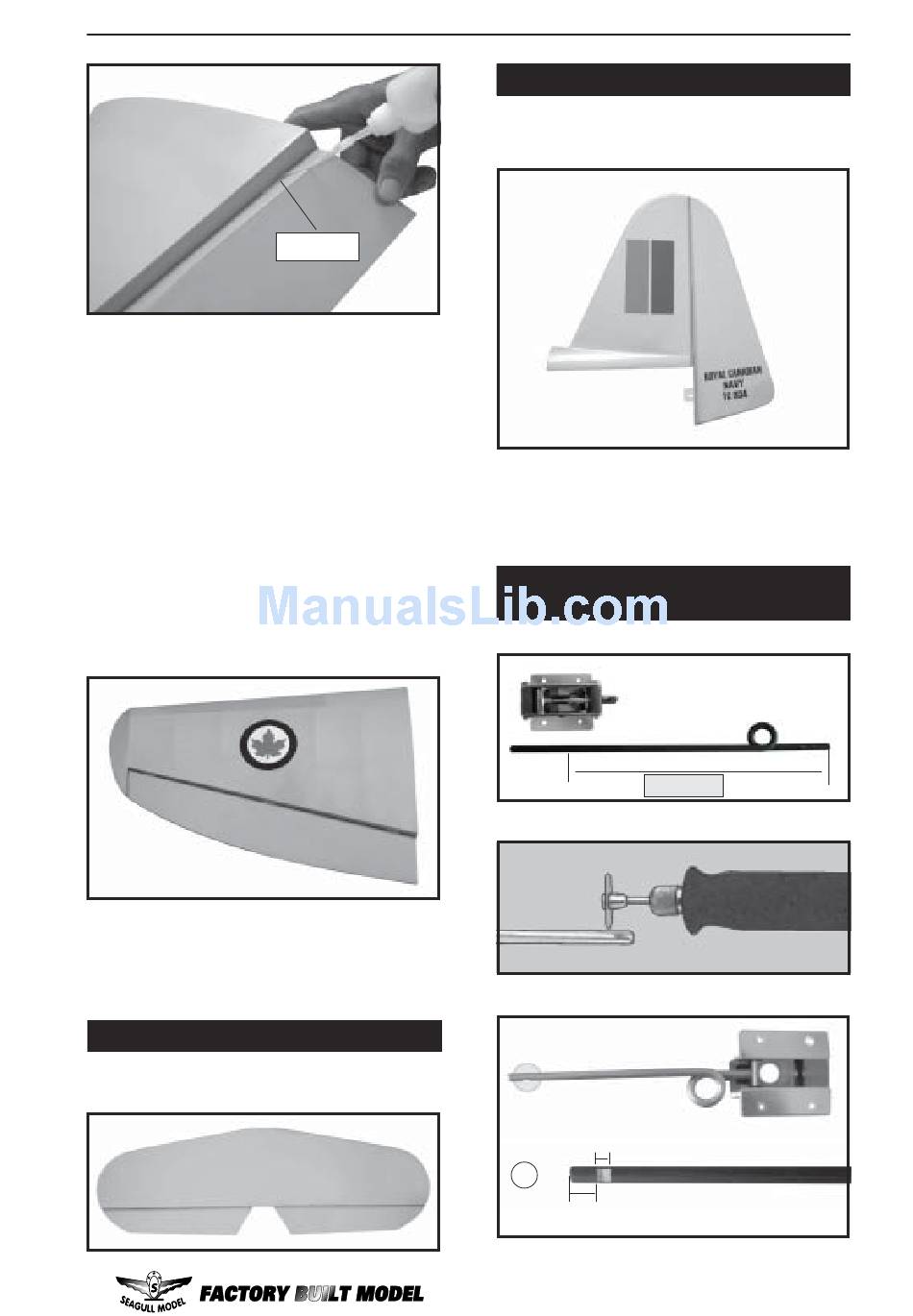

! 6) Using C/A remover/debonder and a paper
towel, remove any excess C/A glue that may
have accumulated on the wing or in the aileron
hinge area.
! 7) Repeat this process with the other wing
panel, securely hinging the aileron in place.
! 8) After both ailerons are securely hinged,
firmly grasp the wing panel and aileron to
make sure the hinges are securely glued and
cannot be pulled out. Do this by carefully
applying medium pressure, trying to separate
the aileron from the wing panel. Use caution
not to crush the wing structure.
Note:
Work the aileron up and down several
times to "work in" the hinges and
check for proper movement.

HINGING THE ELEVATORS.

Glue the elevator hinges in place using the
same tectniques used to hinge the ailerons.
C/A glue.
Instruction Manual.

HINGING THE RUDDER.

Glue the rudder hinges in place using the
same tectniques used to hinge the ailerons.
INSTALLING RETRACTABLE
LANDING GEAR.
172mm.
1
5mm.
1
6mm.
7
