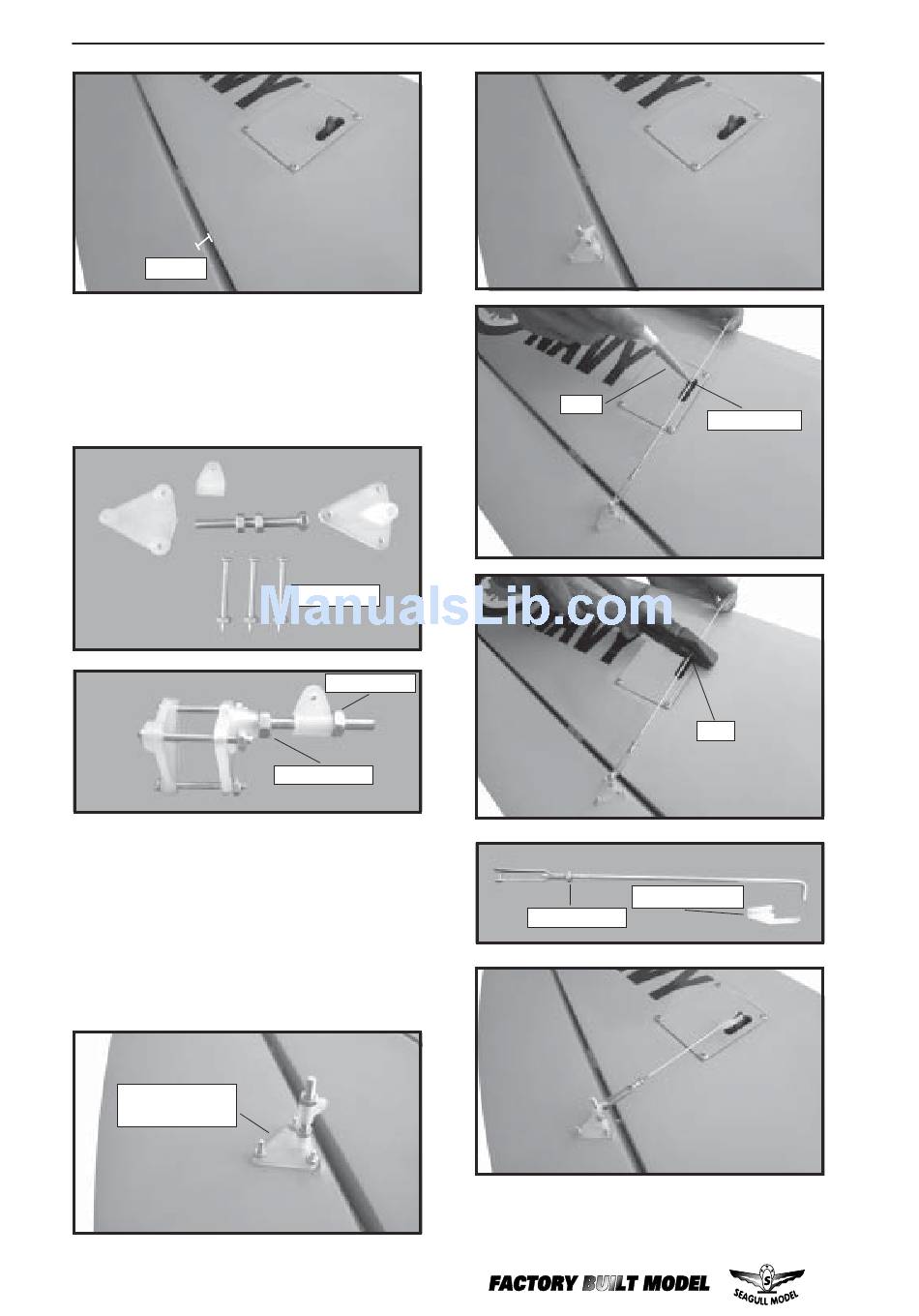

Seagull Models SEA FURY Assembly Manual page 16

SEA FURY.
12mm.
! 2) Locate the nylon control horns,nylon
control horn backplates and three machine
screws.
! 3) Position the aileron horn on the bottom
side of aileron.
! 4) Using a 1.5mm drill bit and the control
horns as a guide, drill the mounting holes
through the aileron halves.
! 5
Mount the control horns by inserting the
)
bolts through the control horn bases and
aileron halves, then into the mounting
backplates. Do not overtighten the nuts or the
backplates may crush the wood.
Aileron control
horn.
16
2 x 30mm.
M3 lock nut.
M3 lock nut.
Instruction Manual.
Pen.
Snap keeper.
M2 lock nut.
Repeat the procedure for the other wing
half.
Mark point.
Cut.
