Yealink W52P Configuration Manual

Dect
Hide thumbs Also See for W52P:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Admin Manual, Configuration Manual

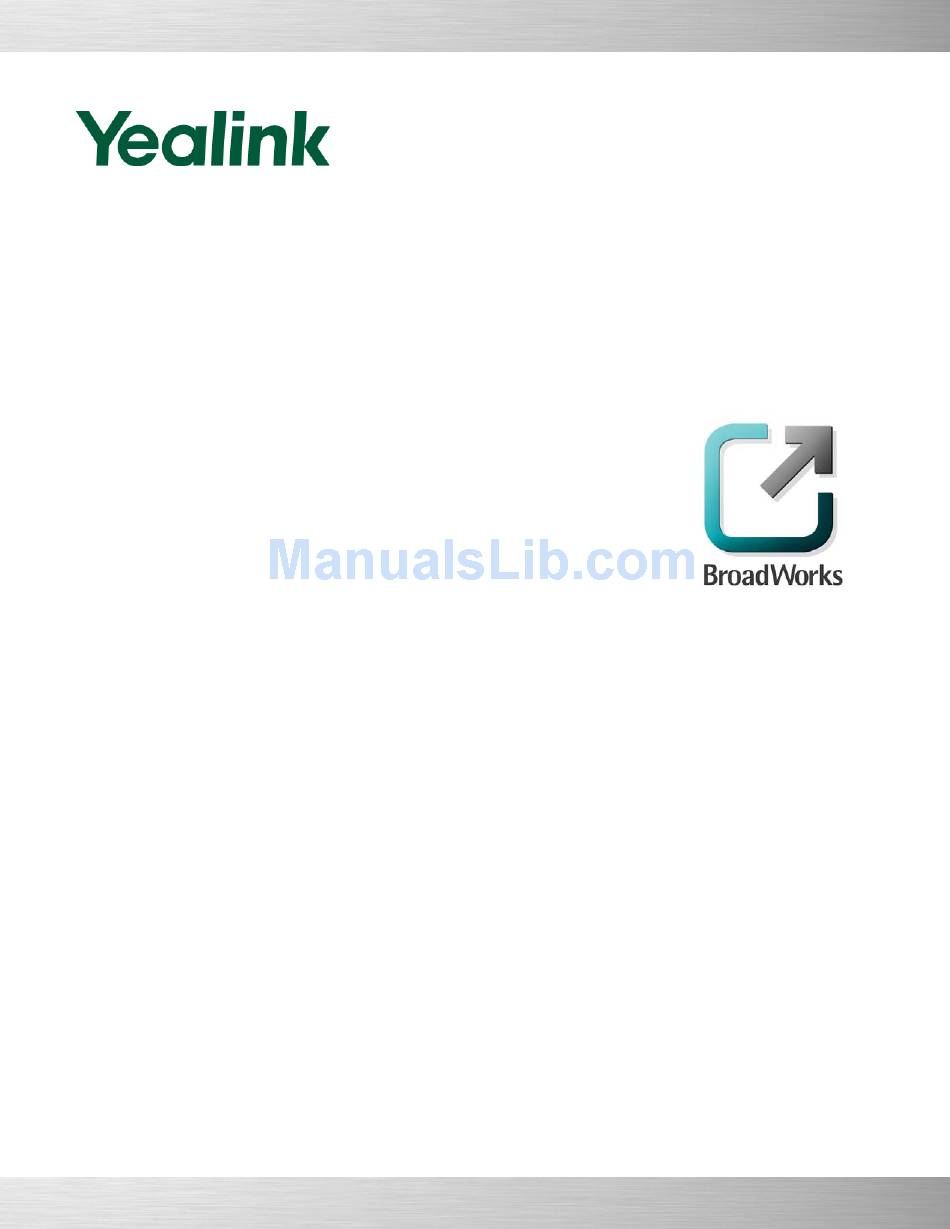

BroadSoft Partner Configuration Guide

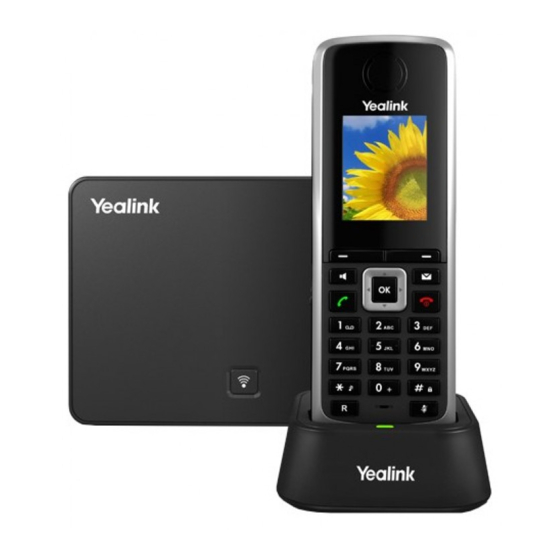

Yealink W52P IP DECT Phone
May 2013
Document Version 1.2
th
th
nd
4
-5
Floor, No.63 Wanghai Road, 2
Software Park,
Xiamen, Fujian, China 361008
Tel: +86 592 5702 000
Fax: +86 592 5702 455
WWW.YEALINK.COM

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the W52P and is the answer not in the manual?

Questions and answers

Related Manuals for Yealink W52P

Summary of Contents for Yealink W52P

  • Page 1 BroadSoft Partner Configuration Guide Yealink W52P IP DECT Phone May 2013 Document Version 1.2 Floor, No.63 Wanghai Road, 2 Software Park, Xiamen, Fujian, China 361008 Tel: +86 592 5702 000 Fax: +86 592 5702 455 WWW.YEALINK.COM...

  • Page 2: Copyright Notice

    Yealink reserves the right to make changes to any products described herein to improve reliability, function, or design, and reserves the right to revise this document and to make changes from time to time in content hereof with no obligation to notify any person of revisions or changes.
  • Page 3 Document Revision History Version Reason for Change Introduced document for Yealink W52P IP DECT Phone version 25.30.0.10 validation with BroadWorks Release 19.sp1. Edited and published document. BROADSOFT PARTNER CONFIGURATION GUIDE – YEALINK W52P IP DECT PHONE 20-BD5392-00 © 2013 YEALINK...

  • Page 4: Table Of Contents

    5.2.5 Configure Edge Device ....................39 5.2.6 Configure Yealink W52P IP DECT Phone ..............40 Appendix A: Sample W52P Configuration Files ................42 References ............................... 54 BROADSOFT PARTNER CONFIGURATION GUIDE – YEALINK W52P IP DECT PHONE 20-BD5392-00 © 2013 YEALINK...
  • Page 5 Figure 9 Identity/Device Profile Add Settings ..................38 Figure 10 Addresses Settings ........................39 Figure 11 Login Screen ..........................40 Figure 12 Upgrade Screen ........................41 BROADSOFT PARTNER CONFIGURATION GUIDE – YEALINK W52P IP DECT PHONE 20-BD5392-00 © 2013 YEALINK...

  • Page 6: Overview

    This guide describes the configuration procedures required for the Yealink W52P IP DECT Phone for interoperability with BroadWorks. The W52P IP DECT Phone is an IP phone that uses the Session Initiation Protocol (SIP) to communicate with BroadWorks for call control.

  • Page 7: Interoperability Status

    Interoperability Status This section provides the known interoperability status of the Yealink W52P IP DECT Phone with BroadWorks. This includes the version(s) tested, capabilities supported and known issues. Interoperability testing validates that the device interfaces properly with BroadWorks via the SIP interface. Qualitative aspects of the device or device capabilities not affecting the SIP interface such as display features, performance, and audio qualities are not covered by interoperability testing.

  • Page 8: Interface Capabilities Supported

    BroadWorks with the intent to ensure interoperability sufficient to support the BroadWorks feature set. The Supported column in the following table identifies the Yealink W52P IP DECT Phone’s support for each of the items covered in the test plan packages, with the following designations: ...
  • Page 9 G711 Fax Fallback T38 Fax Messaging DUT Services – Emergency Call Emergency Call Emergency Call with Ringback DUT Services – Do Not Disturb BROADSOFT PARTNER CONFIGURATION GUIDE – YEALINK W52P IP DECT PHONE 20-BD5392-00 © 2013 YEALINK PAGE 9 OF 54...
  • Page 10 Private Hold Hybrid Key System Multiple Call Arrangement Bridging Call Park Notification Advanced Phone Hold Reminder Services – Call Center Call Information BROADSOFT PARTNER CONFIGURATION GUIDE – YEALINK W52P IP DECT PHONE 20-BD5392-00 © 2013 YEALINK PAGE 10 OF 54...
  • Page 11 Outgoing Invite Incoming Invite IPV6 Call Origination Call Termination Session Audit Ringback Codec Negotiation or Renegotiation Voice Message Deposit or Retrieval Call Control BROADSOFT PARTNER CONFIGURATION GUIDE – YEALINK W52P IP DECT PHONE 20-BD5392-00 © 2013 YEALINK PAGE 11 OF 54...

  • Page 12: Known Issues

    For more information on any issues related to the particular partner device release, see the partner release notes. Issue Number Issue Description Partner Version No issues identified. BROADSOFT PARTNER CONFIGURATION GUIDE – YEALINK W52P IP DECT PHONE 20-BD5392-00 © 2013 YEALINK PAGE 12 OF 54...

  • Page 13: Broadworks Configuration

    W52P IP DECT Phone. BroadWorks Device Profile Type Configuration This section identifies the device profile type to use when deploying the Yealink W52P IP DECT Phone with BroadWorks. The following table identifies the required BroadWorks device identity/profile type settings for interoperability between the W52P IP DECT Phone and BroadWorks.

  • Page 14: Broadworks Configuration Steps

    Web Based Configuration URL Extension Device Configuration Options Device Configuration Options Device Management BroadWorks Configuration Steps No additional BroadWorks configuration steps are required. BROADSOFT PARTNER CONFIGURATION GUIDE – YEALINK W52P IP DECT PHONE 20-BD5392-00 © 2013 YEALINK PAGE 14 OF 54...

  • Page 15: W52P Ip Dect Phone Configuration

    W52P IP DECT Phone Configuration The W52P IP DECT Phone can be configured with a configuration file using the Trivial File Transfer Protocol (TFTP) or through its embedded web server. The following examples describe how to set the parameters using a configuration file. This configuration description assumes the W52P IP DECT Phone uses the Dynamic Host Configuration Protocol (DHCP) to obtain an IP address, TFTP server, and other network settings.
  • Page 16 Transport = 3 (DNS-SRV) (except T80P) Step 11 Enable Feature Key Sync. Enable Feature Key Sync (except T18): Features.BroadsoftFeatureKeySync 1: Enable 0: Disable BROADSOFT PARTNER CONFIGURATION GUIDE – YEALINK W52P IP DECT PHONE 20-BD5392-00 © 2013 YEALINK PAGE 16 OF 54...

  • Page 17: Subscriber Level Configuration Parameters

    = yealink User: This is the BroadWorks user’s login name. Password: This is the BroadWorks user’s login password. BROADSOFT PARTNER CONFIGURATION GUIDE – YEALINK W52P IP DECT PHONE 20-BD5392-00 © 2013 YEALINK PAGE 17 OF 54...

  • Page 18: Device Management

    This section describes the steps to integrate the Yealink W52P IP DECT Phones. As part of the Yealink W52P IP DECT Phone CPE kit, BroadSoft has defined a standard device configuration in the device template files that service providers can use on their systems.

  • Page 19: Device Management Configuration

    Busy Lamp Field Device Management Configuration This section identifies the steps required to enable the Yealink W52P IP DECT Phone phones for device management. For Device Management configuration details not covered here, refer to the BroadWorks Device Management Configuration Guide [2].

  • Page 20: Configure Broadworks Tags

    Yealink W52P phone models only. The Yealink W52P IP DECT Phone makes use of dynamic tags, which may be configured by a BroadWorks administrator as either system default or device type specific tags. This section identifies the required tags.

  • Page 21: Figure 1 System Default Tag Settings

    Example System Default Tag settings: Figure 1 System Default Tag Settings BROADSOFT PARTNER CONFIGURATION GUIDE – YEALINK W52P IP DECT PHONE 20-BD5392-00 © 2013 YEALINK PAGE 21 OF 54...
  • Page 22 Configure the tag set name using the device name appended by Tags: Yealink W52P IP DECT Phone Tags. Add the device type specific tags in the following table to the device tag set. If the tag set already exists, ensure the tags are defined in the following table.

  • Page 23: Figure 2 Device Type Specific Tag Settings

    0 means Disable 1 means Enable Example Device Type Specific Tag settings: Figure 2 Device Type Specific Tag Settings BROADSOFT PARTNER CONFIGURATION GUIDE – YEALINK W52P IP DECT PHONE 20-BD5392-00 © 2013 YEALINK PAGE 23 OF 54...

  • Page 24: Configure Broadworks Device Profile

    Configuration Method 1: Import This section identifies the steps necessary to make use of the Device Management import feature to configure BroadWorks to add the Yealink W52P IP DECT Phone as a Device Management-enabled device type. The import method is available in BroadWorks Release 17.0 and later. For previous releases, use the manual configuration method described in the next section.

  • Page 25: Figure 3 Device Access Fqdn

    The steps in this section must be completed for the device profile type for each Yealink IP DECT Phone model.

  • Page 26: Figure 4 Auto Configuration Option Settings

    “not_used”. The following screen capture shows Device Management enablement for BroadWorks release prior to Release 18.0. Figure 4 Auto Configuration Option Settings BROADSOFT PARTNER CONFIGURATION GUIDE – YEALINK W52P IP DECT PHONE 20-BD5392-00 © 2013 YEALINK PAGE 26 OF 54...
  • Page 27 Device Access URI <device model name> This defines the directory the Xtended Services Platform uses to Example: Yealink_W52P access the configuration files. BROADSOFT PARTNER CONFIGURATION GUIDE – YEALINK W52P IP DECT PHONE 20-BD5392-00 © 2013 YEALINK PAGE 27 OF 54...

  • Page 28: Figure 5 Device Management Options Settings

    Define Device Profile Type Files This section describes the BroadWorks Device Management configuration necessary to identify the configuration files and other files that the Yealink W52P IP DECT Phone downloads. To define the files, configuration templates, firmware and other files the W52P IP DECT Phone uses, they must be uploaded to BroadWorks.
  • Page 29 This file defines the access level of configuration items in cfg format. The following table identifies other files that the Yealink W52P IP DECT Phone downloads from the server or uploads to the server. These files are not provided in the CPE kit and must be obtained from Yealink.
  • Page 30  y000000000025.cfg Add a BroadWorks device profile type file to Yealink W52P IP DECT Phone device profile for the system file using the settings described in the following table. Parameters not identified in the following table can usually be left as defaults.

  • Page 31: Figure 6 System File Settings

    Example System File settings: Figure 6 System File Settings BROADSOFT PARTNER CONFIGURATION GUIDE – YEALINK W52P IP DECT PHONE 20-BD5392-00 © 2013 YEALINK PAGE 31 OF 54...
  • Page 32 <mac-address>.cfg Add a BroadWorks device profile type file to Yealink W52P device profile for the device- specific file using the settings described in the following table. Parameters not identified in the following table can usually be left as defaults.

  • Page 33: Figure 7 Device Specific File Settings

    Example Device-Specific File settings: Figure 7 Device Specific File Settings BROADSOFT PARTNER CONFIGURATION GUIDE – YEALINK W52P IP DECT PHONE 20-BD5392-00 © 2013 YEALINK PAGE 33 OF 54...
  • Page 34  WebItemsLevel.cfg Add a BroadWorks device profile type file to Yealink W52P device profile for each of the static files using the settings described in the following table. Parameters not identified in the following table can usually be left as defaults.

  • Page 35: Figure 8 Static File Settings

    After defining the static file types, upload the corresponding static files. Firmware must be obtained from Yealink. The other files are available from the BroadSoft Xchange. Use the Browse button on the file definition screen. Be sure to click Apply after uploading the file.
  • Page 36 The CPE kit contains the time zone properties files defined for the continental U.S. and Canadian time zones. For other time zone settings, refer to the Yealink W52P IP DECT Phone User Guide [1]. When using the DTAF import, the TimeZoneAlias files are automatically copied onto the system.

  • Page 37: Create Device Profile Instance

    Browse to the BroadWorks <group> → Resources → Identity/Device Profiles and select Add to add a new Yealink W52P IP DECT Phone device profile. Define the device profile instance using the settings described in the following table.

  • Page 38: Configure Broadworks User

    Parameter Value Description/Notes Identity/Device Profile <device-profile-name> Select from the drop-down the Name device profile instance created in Example: Yealink-W52P-1 the previous section. BROADSOFT PARTNER CONFIGURATION GUIDE – YEALINK W52P IP DECT PHONE 20-BD5392-00 © 2013 YEALINK PAGE 38 OF 54...

  • Page 39: Configure Edge Device

    Enter the IP address as the value (edge device LAN IP address). Click OK to save the tag data. This Tag/Value will be applied to all Yealink W52P phones in the group using the modified Device Profile Type. BROADSOFT PARTNER CONFIGURATION GUIDE – YEALINK W52P IP DECT PHONE 20-BD5392-00 ©...

  • Page 40: Configure Yealink W52P Ip Dect Phone

    This section describes the steps necessary to configure the Yealink W52P to integrate with BroadWorks Device Management. Log in to the web user interface for the W52P IP DECT Phone (https://<phone-ip- address>). Go to the Phone → Auto Provision web page and set the following: ...

  • Page 41: Figure 12 Upgrade Screen

    Example Auto Provision web page: Figure 12 Upgrade Screen BROADSOFT PARTNER CONFIGURATION GUIDE – YEALINK W52P IP DECT PHONE 20-BD5392-00 © 2013 YEALINK PAGE 41 OF 54...

  • Page 42: Appendix A: Sample W52P Configuration Files

    NOTE: The following samples are examples and should be used as a reference only. DO NOT CUT AND PASTE THESE EXAMPLES TO GENERATE YOUR CONFIGURATION FILES. Use the configuration files obtained from Yealink with the specific release to generate your configuration files. System Default File: y000000000025.cfg NOTE: This is an example file and should be used for reference only.
  • Page 43 0-Disabled (default), 1-Enabled; auto_provision.repeat.enable = #Configure the interval (in minutes) the phone repeatedly checks the new configuration. The default is 1440. auto_provision.repeat.minutes = BROADSOFT PARTNER CONFIGURATION GUIDE – YEALINK W52P IP DECT PHONE 20-BD5392-00 © 2013 YEALINK PAGE 43 OF 54...
  • Page 44 #Enable or disable the transferee to display the missed call prompt when receiving a semi_attended transfer call; #0-Disabled, 1-Enabled (default); transfer.semi_attend_tran_enable = BROADSOFT PARTNER CONFIGURATION GUIDE – YEALINK W52P IP DECT PHONE 20-BD5392-00 © 2013 YEALINK PAGE 44 OF 54...
  • Page 45 #Configure the start time of DST. The default value is 1/1/0. #If the DST type is configured as By Date, the value format is Month/Day/Hour. For example, the value 5/20/10 means the start time is BROADSOFT PARTNER CONFIGURATION GUIDE – YEALINK W52P IP DECT PHONE 20-BD5392-00 ©...
  • Page 46 Phone Settings ####################################################################### #Configure the return code when activating DND; 404-No Found, 480- Temporarily not available (default), 486-Busy here; #features.dnd_refuse_code = 480 BROADSOFT PARTNER CONFIGURATION GUIDE – YEALINK W52P IP DECT PHONE 20-BD5392-00 © 2013 YEALINK PAGE 46 OF 54...
  • Page 47 #server_certificates.delete = http://localhost/all, delete the server certificate; server_certificates.delete = ####################################################################### Local Contact/DST Time/Replace Rule ####################################################################### auto_dst.url = http://%BWDEVICEACCESSFQDN%:%BWDEVICEACCESSPORT%/%BWDMSCONTEXT%/%BWDEVI CEACCESSURI%Autodst.xml dialplan_replace_rule.url = http://%BWDEVICEACCESSFQDN%:%BWDEVICEACCESSPORT%/%BWDMSCONTEXT%/%BWDEVI CEACCESSURI%DialPlan.xml blacklist.url = http://%BWDEVICEACCESSFQDN%:%BWDEVICEACCESSPORT%/%BWDMSCONTEXT%/%BWDEVI CEACCESSURI%blacklist.xml BROADSOFT PARTNER CONFIGURATION GUIDE – YEALINK W52P IP DECT PHONE 20-BD5392-00 © 2013 YEALINK PAGE 47 OF 54...
  • Page 48 = 0 bw_phonebook.update_interval = 1440 #Network Call Log bw_phonebook.call_log_enable = 0 ####################################################################### Tone ####################################################################### voice.tone.country = Custom voice.tone.ring = voice.tone.busy = voice.tone.callwaiting = BROADSOFT PARTNER CONFIGURATION GUIDE – YEALINK W52P IP DECT PHONE 20-BD5392-00 © 2013 YEALINK PAGE 48 OF 54...
  • Page 49 #Enable or disable the anonymous call feature; 0-Disabled (default), 1- Enabled; account.1.anonymous_call = #Configure the on code and off code of the anonymous call feature. BROADSOFT PARTNER CONFIGURATION GUIDE – YEALINK W52P IP DECT PHONE 20-BD5392-00 © 2013 YEALINK PAGE 49 OF 54...
  • Page 50 = #Configure the RTP packet time. The valid values are 0 (Disabled), 10, 20 (default), 30, 40, 50, 60. account.1.ptime = BROADSOFT PARTNER CONFIGURATION GUIDE – YEALINK W52P IP DECT PHONE 20-BD5392-00 © 2013 YEALINK PAGE 50 OF 54...
  • Page 51 #Configure the session timer (in seconds), the default values of T1, T2, T3 are 0.5, 4, 5. account.1.advanced.timer_t1 = account.1.advanced.timer_t2 = account.1.advanced.timer_t4 = account.1.codec.1.enable = 1 account.1.codec.1.payload_type = PCMA BROADSOFT PARTNER CONFIGURATION GUIDE – YEALINK W52P IP DECT PHONE 20-BD5392-00 © 2013 YEALINK PAGE 51 OF 54...
  • Page 52 = %BWFAC-CFA-DEACTIVATE-1% account.1.always_fwd.on_code = %BWFAC-CFA-ACTIVATE-1% #Enable or disable the busy forward, 0-Disabled(default), 1-Enabled; account.1.busy_fwd.enable = account.1.busy_fwd.target = account.1.busy_fwd.off_code = %BWFAC-CFB-DEACTIVATE-1% account.1.busy_fwd.on_code = %BWFAC-CFB-ACTIVATE-1% BROADSOFT PARTNER CONFIGURATION GUIDE – YEALINK W52P IP DECT PHONE 20-BD5392-00 © 2013 YEALINK PAGE 52 OF 54...
  • Page 53 #Configure the static IP address, submask, gateway and DNS server. #Require reboot; network.internet_port.ip = network.internet_port.mask = network.internet_port.gateway = network.primary_dns= %DNS_SERVER_1% network.secondary_dns = %DNS_SERVER_2% BROADSOFT PARTNER CONFIGURATION GUIDE – YEALINK W52P IP DECT PHONE 20-BD5392-00 © 2013 YEALINK PAGE 53 OF 54...

  • Page 54: References

    References [1] Yealink, Inc. 2013. Yealink W52P IP DECT Phone User Guide, Release 30. Available from Yealink at http://www.yealink.com/Support.aspx. [2] BroadSoft, Inc. 2013. BroadWorks Device Management Configuration Guide, Release 19.0. Available from BroadSoft at xchange.broadsoft.com. [3] BroadSoft, Inc. 2013. BroadWorks Redundancy Guide, Release 19.0. Available from BroadSoft at xchange.broadsoft.com.
