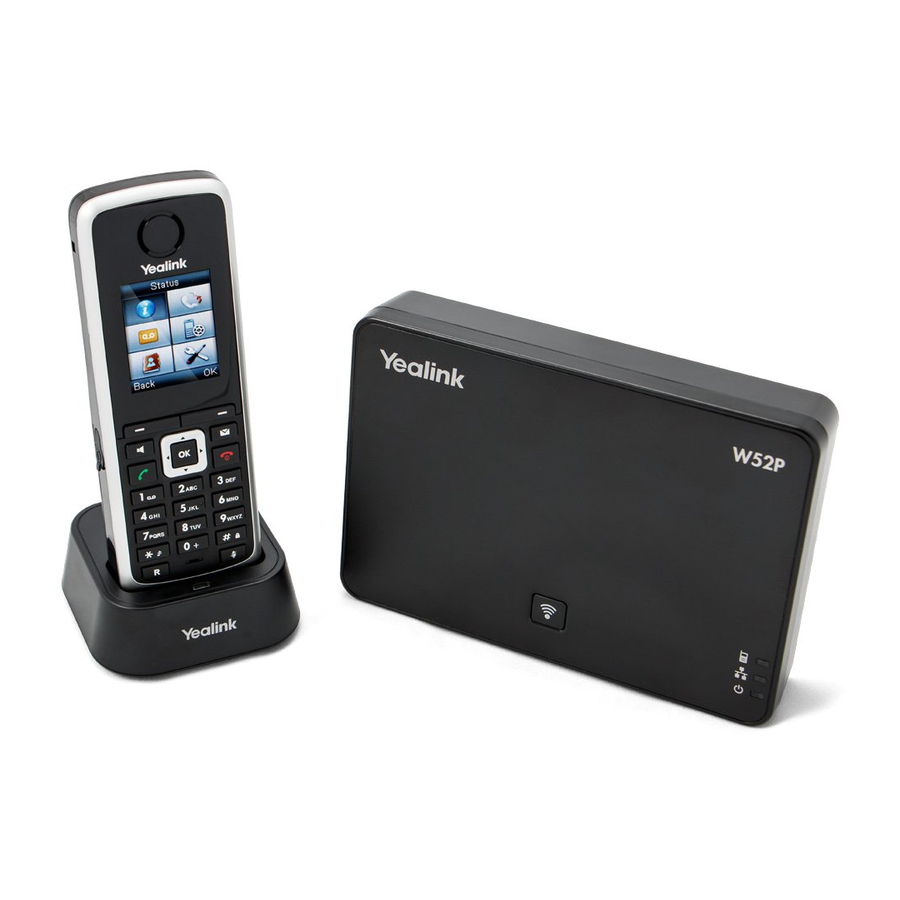

Yealink W52P, W52H IP DECT Phone Quick Installation Guide

Getting Started

Network Settings

You can configure the base station to obtain network settings in one of the following ways:

DHCP: By default, the base station attempts to contact a DHCP server in your network to obtain the valid network settings, e.g., IP address, subnet mask, gateway address and DNS address.
Static: If the base station cannot contact a DHCP server for any reason, you need to configure the IP address, subnet mask, gateway address, primary DNS address and secondary DNS address for the base station manually.

To configure the network parameters for the base station manually:

1. Press the OK key to enter the main menu, and select Settings-> System Settings -> Network.
2. Enter the system PIN (default: 0000), and press the Done soft key.
3. Select Static from the IP Address Type field.
4. Enter the valid values in the IP Address, Subnet Mask, Default Gateway,Primary DNS and Secondary DNS fields.
5. Press the Save soft key to accept the change.

Note: The wrong network settings may result in inaccessibility of your phone and may have an impact on the network performance. For more information on these parameters, contact your system administrator.

Handset Registration

The handset in the W52P package is pre-registered to the base station. Internal handset number and name display on the idle screen after turning the handset on. If your handset is not pre-registered to the base station, do one of the followings to register it manually:

• If the handset LCD screen prompts "Searching for Base", long press on the base station till the first LED flashes. Then press the OK key to enter the main menu, and select Settings->Registration->Register Handset to register the handset.
• If the handset LCD screen prompts "Press base pаge 2s then press OK", long press on the base station till the first LED flashes. Then press the OK soft key on the handset.

Shortcuts

This helps you get quick access to features by pressing the shortcut keys directly without having to scroll through the menu. You can press the following predefined shortcuts to access some frequently used features of your handset when the handset is idle:

• Press to access the call history.
• Press to check the line status.
• Press to place an internal call.
• Press to access the directory.
• Press to decrease the ringer volume.
• Press to increase the ringer volume.

Packaging Contents

The following items are included in your W52P package:

The following items are included in your W52H package:

Assembling the Phone

1. Connect the network and power for the base station in one of the following ways, as shown below:
   1. AC Power Option

   2. PoE (Power over Ethernet) Option

2. Connect the charger cradle, as shown below:

3. Insert the batteries into the handset, as shown below:

4. Charge the handset, as shown below:


Note: The charging status of the handset is indicated in the top right-hand corner of the LCD screen.

www.yealink.com

Copyright 2013 YEALINK NETWORK TECHNOLOGY CO.,LTD.c
