Sub-Zero ICBBI-36R Design Manual page 63

WINE STORAGE
Custom Panels—ICBWS-30
SIDE PANEL
The custom side panel must be a minimum of 610 mm deep
and 13 mm thick. Routing will be necessary for the side
panel to fit flush against the side of the unit. Refer to the
illustrations below.
When installing model ICBWS-30 with a custom side panel,
an accessory kit is required. Stainless steel and white
enamel side panels are available through an authorized Sub-
Zero dealer.
610 mm
FRONT
OF SIDE
PANEL
3 mm
ROUT TO
48 mm
25 mm 2134
mm
102 mm
OPTIONAL
67 mm
TOE KICK
CUT-OUT

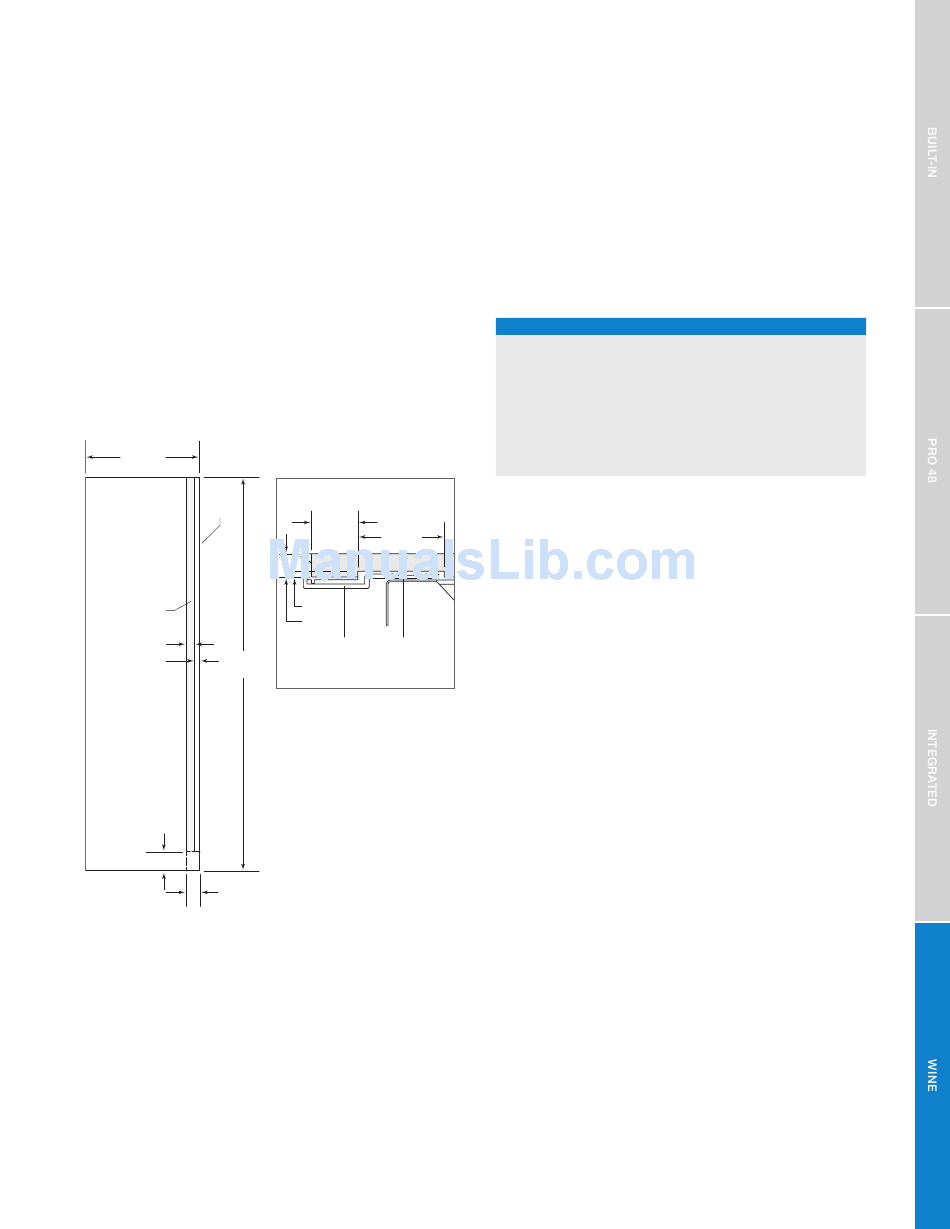

Side panel dimensions.
25 mm
48 mm
3 mm
13 mm
MAIN SIDE PANEL
FRAME ROUTING
Routing detail.
Standard Handles
Optional stainless steel tubular and pro handles are avail-
able through an authorized Sub-Zero dealer.
Refer to the chart below for standard handle lengths for
wine storage models.
HANDLE LENGTH
WINE STORAGE
ICB424G Door
ICBIW-18 Door
ICBIW-24 Door
ICBIW-30 Door
ICBIW-30R Door
ICBIW-30R Drawer
ICBWS-30 Door
TUBULAR PRO
616 mm 572 mm
1273 mm 1229 mm
1273 mm 1229 mm
1273 mm 1229 mm
845 mm 800 mm
616 mm 572 mm
1622 mm 1147 mm
|
