  • Page 1 BUILT-IN DESIGN GUIDE...

  • Page 2: Table Of Contents

    Model Specifications Side Panels Check our website, subzero.com, for the most up-to-date Planning Information Dual Installations specifications. Overlay Panels Accessories Flush Inset Panels Full-Scale Templates ® SUB-ZERO is a registered trademark of Sub-Zero, Inc.
  • Page 3 Built-In Refrigeration subzerotrade.com Introducing New Built-In Refrigeration. Beginning in Fall, 2008, you will have a new line of built-in refrigeration to offer your clients. We have re-engineered—exterior and interior—our built-in product line to offer you the best in design options, and your clients the best in food preservation. The 600 series as you understand it now will be gone and the new offering will take its place.

  • Page 4: Built-In Design Options

    Built-In Design Options Built-In Design Options. A design classic is now even better. Three distinct design approaches provide limitless flexibility for creating a beautiful kitchen. New lower profile hinges enable the new built-in units to merge more seamlessly with surrounding cabinetry. Three handle options coordinate with Wolf cooking products. Overlay.

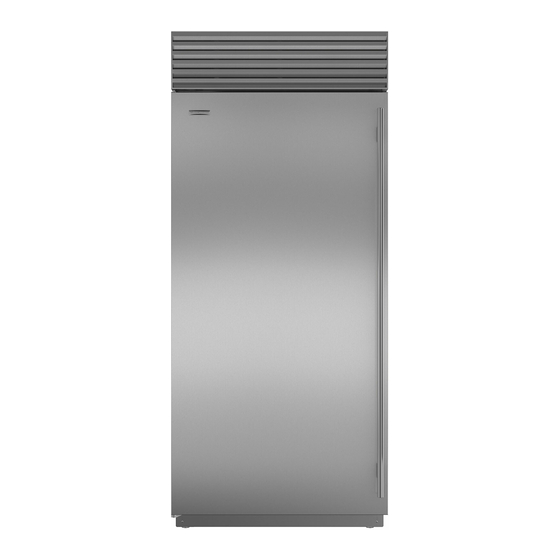

  • Page 5 Built-In Design Options subzerotrade.com Stainless Steel. For a professional look, classic stainless is standard and requires no customization. To compliment the look of Wolf ranges, choose the pro handle option shown here.

  • Page 6: Model Specifications

    Model Specifications All Refrigerator / All Freezer Models IMPORTANT NOTE: The heights of the All Refrigerator / All Freezer Models have increased from 1854 mm to 2134 mm. 2134 Model ICBBI-36R Model ICBBI-36RG Model ICBBI-36F ALL REFRIGERATOR ALL REFRIGERATOR ALL FREEZER SIDE VIEW GLASS DOOR Over-and-Under Models...
  • Page 7 Model Specifications subzerotrade.com Side-by-Side Models 2134 1067 1067 Model ICBBI-36S Model ICBBI-42S Model ICBBI-42SD SIDE VIEW WITH DISPENSER Models are shown in the stainless steel design. 2134 1219 1219 Model ICBBI-48S Model ICBBI-48SD WITH DISPENSER SIDE VIEW...

  • Page 8: Door Clearance

    Model Specifications Door Clearance BEHIND BEHIND BEHIND FRAME FRAME FRAME All Refrigerator / All Freezer Models Over-and-Under Models Side-by-Side Models The doors of all built-in models open to a maximum of 110°. Door Clearance A 90° door stop is shipped with all units. For additional ALL REFRIGERATOR / ALL FREEZER information, refer to the full-scale templates at the end of this ICBBI-36R, ICBBI-36RG, ICBBI-36F...

  • Page 9: Planning Information

    Planning Information subzerotrade.com Standard Installation Opening Dimensions Overlay and Classic Stainless Steel Models TOP VIEW OPENING DEPTH OUTLINE OF UNIT WITH mm PANEL OPENING DEPTH 2127 OPENING OPENING WIDTH HEIGHT 2108 SIDE VIEW FRONT VIEW IMPORTANT NOTE: If two units are installed side by side, Opening Width refer to pages 24–25 for dual standard installations.
  • Page 10 Planning Information Electrical Requirements. A 220-240 V AC, 50/60 Hz, 10 amp circuit breaker and electrical supply are required. A separate circuit, servicing only this appliance is required. All built-in models are equipped with a power supply cord with a 3-prong grounding plug which must be plugged into a mating 3-prong grounding-type wall receptacle.
  • Page 11 Do not use self-piercing valves. A saddle valve kit (4200880) is available from your TOP VIEW Sub-Zero dealer. The water line must not interfere with installation of the anti-tip brackets. FRONT VIEW IMPORTANT NOTE: A reverse osmosis system can be used provided there is constant water pressure of 30 psi (2.1 bar) to 100 psi (6.9 bar) supplied to the unit at all...

  • Page 12: Overlay Panels

    Overlay Panels Overlay Panels. If you and your client have ordered an overlay model, you will be adding panels and handles to give the unit a more custom look. The overlay panel design option is available for all built-in overlay models. For exact door panel dimensions, refer to overlay panel specifications on the following pages.
  • Page 13 24–25 for dual standard installations. Be aware that rough opening dimensions are different for this application. Do not exceed the overlay decorative panel dimen- sions. Exceeding dimensions could cause damage to the panels and the Sub-Zero unit.
  • Page 14 Overlay Panels Overlay Panel Specifications ICBBI-36R ICBBI-36RG ICBBI-30U ICBBI-30UG ICBBI-36F ICBBI-36U ICBBI-36UG Models ICBBI-36R, ICBBI-36RG and ICBBI-36F Models ICBBI-36U and ICBBI-36UG REFRIGERATOR/FREEZER REFRIGERATOR Overlay Panel 1772 Overlay Panel 1273 Spacer Panel 1751 Spacer Panel 1253 Backer Panel 1767 Backer Panel 1268 GRILLE FREEZER...
  • Page 15 Overlay Panels subzerotrade.com Overlay Panel Specifications ICBBI-36S / ICBBI-42S ICBBI-42SD ICBBI-48S ICBBI-48SD Model ICBBI-36S Models ICBBI-48S and ICBBI-48SD REFRIGERATOR REFRIGERATOR Overlay Panel 1772 Overlay Panel 1772 Spacer Panel 1751 Spacer Panel 1751 Backer Panel 1767 Backer Panel 1767 FREEZER FREEZER Overlay Panel 1772 Overlay Panel...
  • Page 16 Flush Inset Application Flush Inset Application. It is necessary to consider the following points when planning for a flush inset application: • The flush inset depth is 56 mm deeper than the standard opening. • The flush inset width is 64 mm wider than the standard opening.
  • Page 17 Flush Inset Application subzerotrade.com Flush Inset Installation Opening Dimensions TOP VIEW TOP VIEW FLUSH DEPTH FLUSH OPENING INSET TO CLEAT INSET DEPTH DEPTH CLEAT OUTLINE DEPTH TO CLEAT OF UNIT WITH CLEAT mm PANEL typical DETAIL A CLEAT Detail A DEPTH TO CLEAT FLUSH INSET DEPTH mm typical...
  • Page 18 Exceeding dimensions could cause overlay models. For exact panel dimensions, refer to flush damage to the panels and the Sub-Zero unit. inset panel specifications on the following pages. The flush inset design allows decorative panels to cover...
  • Page 19 Flush Inset Panels subzerotrade.com Flush Inset Panels. Illustrations A–F provide panel TOP VIEW TOP VIEW offsets and reveals for all built-in models in a flush inset DOOR / DRAWER / GRILLE application. Refer to the chart below for reference to the illustrations relating to your specific model.
  • Page 20 Flush Inset Panels Flush Inset Panel Specifications ICBBI-36R ICBBI-36RG ICBBI-30U ICBBI-30UG ICBBI-36F ICBBI-36U ICBBI-36UG Models ICBBI-36R, ICBBI-36RG and ICBBI-36F Models ICBBI-36U and ICBBI-36UG REFRIGERATOR/FREEZER REFRIGERATOR Flush Inset Panel 1772 Flush Inset Panel 1273 Spacer Panel 1751 Spacer Panel 1253 Backer Panel 1767 Backer Panel 1268...
  • Page 21 Flush Inset Panels subzerotrade.com Flush Inset Panel Specifications ICBBI-36S / ICBBI-42S ICBBI-42SD ICBBI-48S ICBBI-48SD Model ICBBI-36S Models ICBBI-48S and ICBBI-48SD REFRIGERATOR REFRIGERATOR Flush Inset Panel 1772 Flush Inset Panel 1772 Spacer Panel 1751 Spacer Panel 1751 Backer Panel 1767 Backer Panel 1767 FREEZER FREEZER...

  • Page 22: Dispenser Specifications

    Dispenser Specifications Dispenser Area. For Models ICBBI-42SD and ICBBI-48SD, the refrigerator door panel must include a cut-out to accommodate the dispenser glasswell and bezel. The thickness of the panel in this area can range from 6 mm to a maximum of 29 mm. IMPORTANT NOTE: Regardless of the thickness of the panel for Model ICBBI-42SD or ICBBI-48SD, you must plan for a flat landing area for the decorative bezel...

  • Page 23: Side Panels

    (7003407) is required. Classic stainless Routing Detail. steel and white enamel side panels are also available through your Sub-Zero dealer. The side panel will need to be a minimum of 610 mm deep and 13 mm thick. Refer to the side panel dimen- ROUT TO sions illustration for additional specifications.

  • Page 24: Dual Installations

    Some dual standard installations will require a dual installation kit, available through your Sub-Zero dealer. If you are installing two units side by side in a flush inset application refer to page 27.
  • Page 25 Dual Installations subzerotrade.com Dual Standard Installation Opening Dimensions Overlay and Classic Stainless Steel Models TOP VIEW OPENING DEPTH OUTLINE OF TWO UNITS WITH mm PANEL OPENING DEPTH 2127 OPENING OPENING WIDTH HEIGHT 2108 SIDE VIEW FRONT VIEW IMPORTANT NOTE: A dual installation kit will be required for Opening Widths this installation.

  • Page 26: Flush Inset Panels

    Dual flush inset panels and dual installation kits are avail- able through your Sub-Zero dealer. Refer to pages 28–29 Dual Flush Inset Installation for dual flush inset panel specifications and page 30 for information on dual installation accessory kits.
  • Page 27 Dual Installations subzerotrade.com Dual Flush Inset Installation Opening Dimensions TOP VIEW FLUSH DEPTH TOP VIEW INSET TO CLEAT FLUSH OPENING DEPTH OUTLINE OF INSET DEPTH CLEAT TWO UNITS WITH CLEAT DEPTH TO CLEAT mm PANEL typical DETAIL A CLEAT Detail A DEPTH TO CLEAT FLUSH INSET DEPTH mm typical...
  • Page 28 Grille Bottom / Door Top Door Bottom / Drawer Top Drawer Bottom SIDE VIEW SIDE VIEW Illus. E Illus. F Do not exceed the flush inset decorative panel dimensions. Exceeding dimensions could cause damage to the panels and the Sub-Zero unit.
  • Page 29 Dual Installations subzerotrade.com Flush Inset Panel Specifications—Dual Installation ICBBI-36R ICBBI-36RG ICBBI-30U ICBBI-30UG ICBBI-36F ICBBI-36U ICBBI-36UG Models ICBBI-36R, ICBBI-36RG and ICBBI-36F Models ICBBI-36U and ICBBI-36UG REFRIGERATOR/FREEZER REFRIGERATOR Flush Inset Panel 1772 Flush Inset Panel 1273 Spacer Panel 1751 Spacer Panel 1253 Backer Panel 1767 Backer Panel...
  • Page 30 Dual Installations Dual Installation Kit with Dual Wide Grille. Dual Installation Kit. This kit is available for those This kit will replace the existing grilles that ship with the who choose to utilize the individual grilles that ship with units and span the entire width of both units. The kit each unit.

  • Page 31: Accessories

    These optional accessories are available for built-in models. Be aware that some accessories can not be used with every model. Accessories are available through your Sub-Zero dealer. To obtain local dealer information, visit the Showroom Locator section of our website, subzero.com.

  • Page 32: Full-Scale Templates

    Panel Thickness and Handle Profile This full-scale template shows handle placement and panel thickness for overlay and flush inset applications. IMPORTANT NOTE: Panel thick- ness does not include the 6 mm DEPTH OF TUBULAR, CURVED AND PRO HANDLES backer panel and 3 mm spacer panel.
  • Page 33 Overlay Panel Application—90° Door Opening subzerotrade.com SUB-ZERO UNIT OVERALL WIDTH TO REAR OF UNIT OF UNIT MAIN FRAME DOOR CLOSED TOP VIEW APPROX THICKNESS OF WRAPPED STAINLESS STEEL DOOR This full-scale template shows what considerations you need to make for...
  • Page 34 Flush Inset Panel Application—110° Door Opening CABINETRY SUB-ZERO UNIT This full-scale template TO BACK WALL shows what considerations you need to make for flush inset panel applications and how they may interact with adjacent cabinets and MAIN FRAME countertops. IMPORTANT NOTE: For flush inset panels thicker than 19 mm, a 90˚...
  • Page 35 51 mm filler strip at mm THICK 110˚ door opening. (TYPICAL) Interference of door panels with handles at maximum door opening may require the use of an optional 90˚ door stop available through your Sub-Zero dealer. DOOR OPEN 110˚...
  • Page 36 SUB-ZERO, INC. P O BOX 44130 MADISON, WI 53744 USA SUBZERO.COM 12/2008...
