INTEGRATED REFRIGERATION
Custom Panels

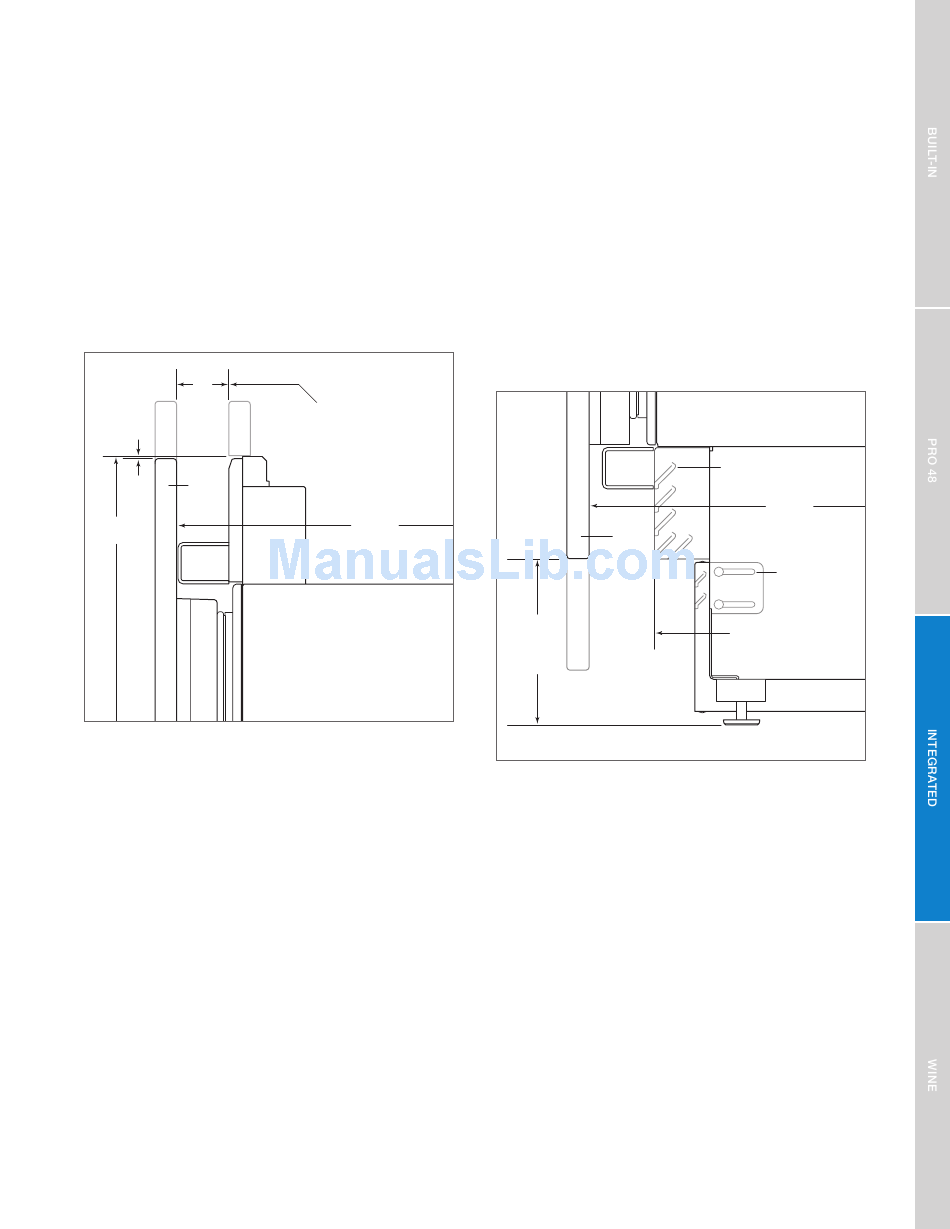

DOOR PANEL HEIGHT
The height of the custom door panel can extend beyond the
typical panel height, provided it does not exceed the weight
limit. Refer to the illustration below.
45
mm
3 mm
DOOR
PANEL
2134
mm
HINGE
Upper valance (column and tall)—side view.
TOE KICK CLEARANCE
The height of the toe kick area can extend beyond the
typical toe kick height, provided it does not exceed the
dimensions in the illustration below. Toe kick heights from
51 mm to 98 mm require a reduced toe kick accessory
available through an authorized Sub-Zero dealer.
A DECORATIVE VALANCE
CANNOT EXTEND
BEYOND THIS PLANE
610 mm
TO BACK OF UNIT
Toe kick—side view.
HINGE
DOOR
PANEL
51 mm*
TO
152 mm
FROM
FLOOR
*51 mm to 98 mm requires sales accessory.
VENTED
LOUVERS
610 mm
TO BACK OF UNIT
29 mm
MAX
TOE KICK
ADJUSTMENT
A DECORATIVE TOE KICK
CANNOT EXTEND
BEYOND THIS PLANE
|
