Sub-Zero ICBBI-36R Design Manual page 26

Hide thumbs Also See for ICBBI-36R:
Table of Contents

Advertisement

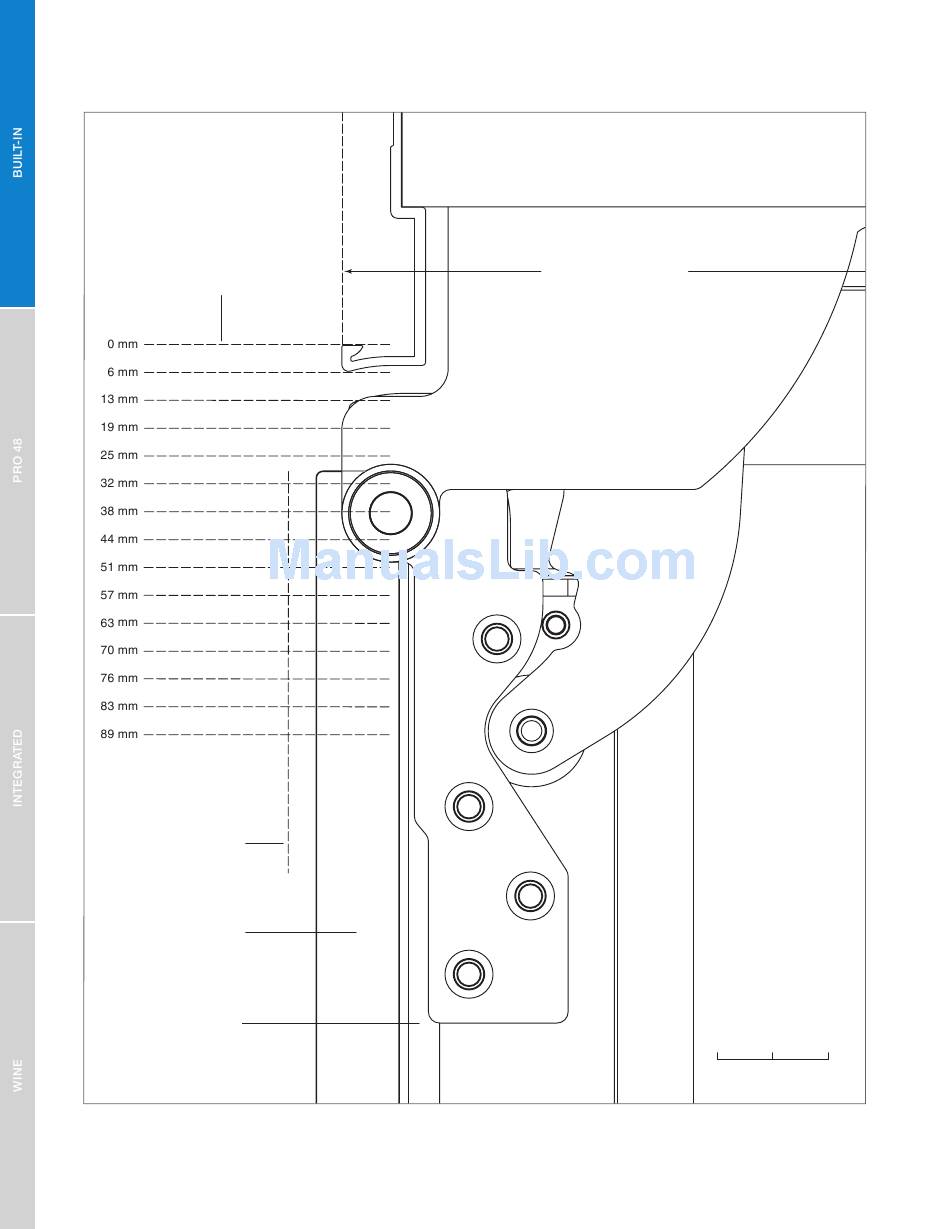

BUILT-IN REFRIGERATION
Overlay Application
FULL-SCALE TEMPLATE
606 mm
TO REAR OF UNIT
25 mm
THICK PANEL
19 mm
THICK OVERLAY PANEL
(TYPICAL)
6 mm
BACKER PANEL
90° door opening (top view).
|
26
English
OVERALL WIDTH OF UNIT
0
25 mm
SCALE
