BUILT-IN REFRIGERATION
Custom Panels
FLUSH INSET PANELS
The flush inset application is an overlay model with flush
inset panels. It is not a separate model.
The flush inset design allows custom panels to be installed
flush with adjacent cabinets. Similar to overlay, flush inset
panels are typically created by combining a 19 mm custom
panel, a 3 mm spacer panel and a 6 mm backer panel. Refer
to the illustrations for overlay panels.
For flush inset panels thicker than 19 mm, a 90° door stop
may be required to prevent interference with adjacent
cabinets. Refer to the full-scale templates at the end of this
guide.
When installing two units side by side, refer to page 11 for
dual flush inset installations.
|
14 English

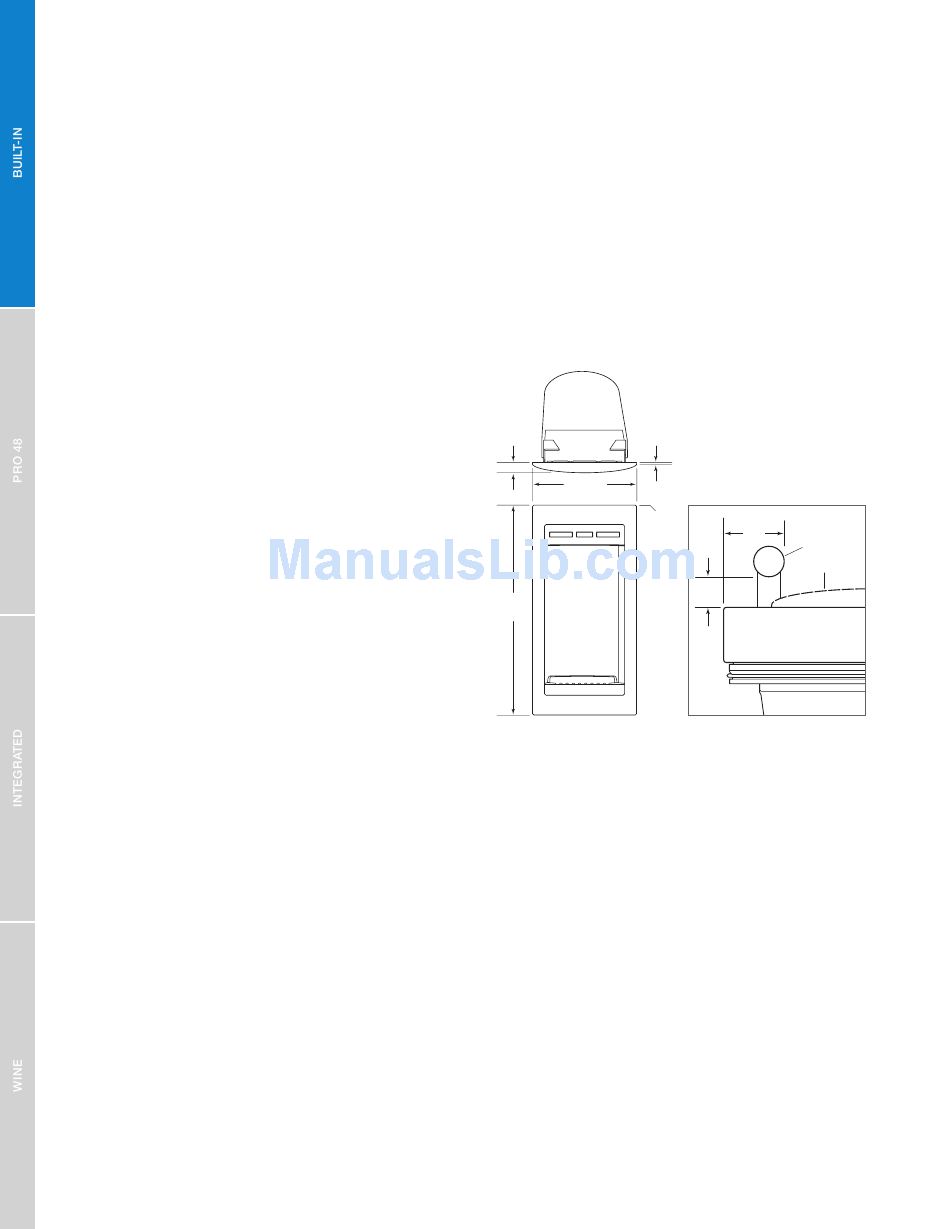

ICE AND WATER DISPENSER
For models ICBBI-42SD and BI-48SD, the refrigerator door
panel must include a cut-out to accommodate the external
dispenser. The thickness of the panel in this area can range
from 6 mm to a maximum of 29 mm. Refer to the illustra-
tions below.
16 mm 2 mm
160 mm
3 mm
RADIUS
327
mm
Dispenser dimensions.
51
mm
HANDLE
GLASSWELL
25
mm
Handle placement.
