BUILT-IN REFRIGERATION

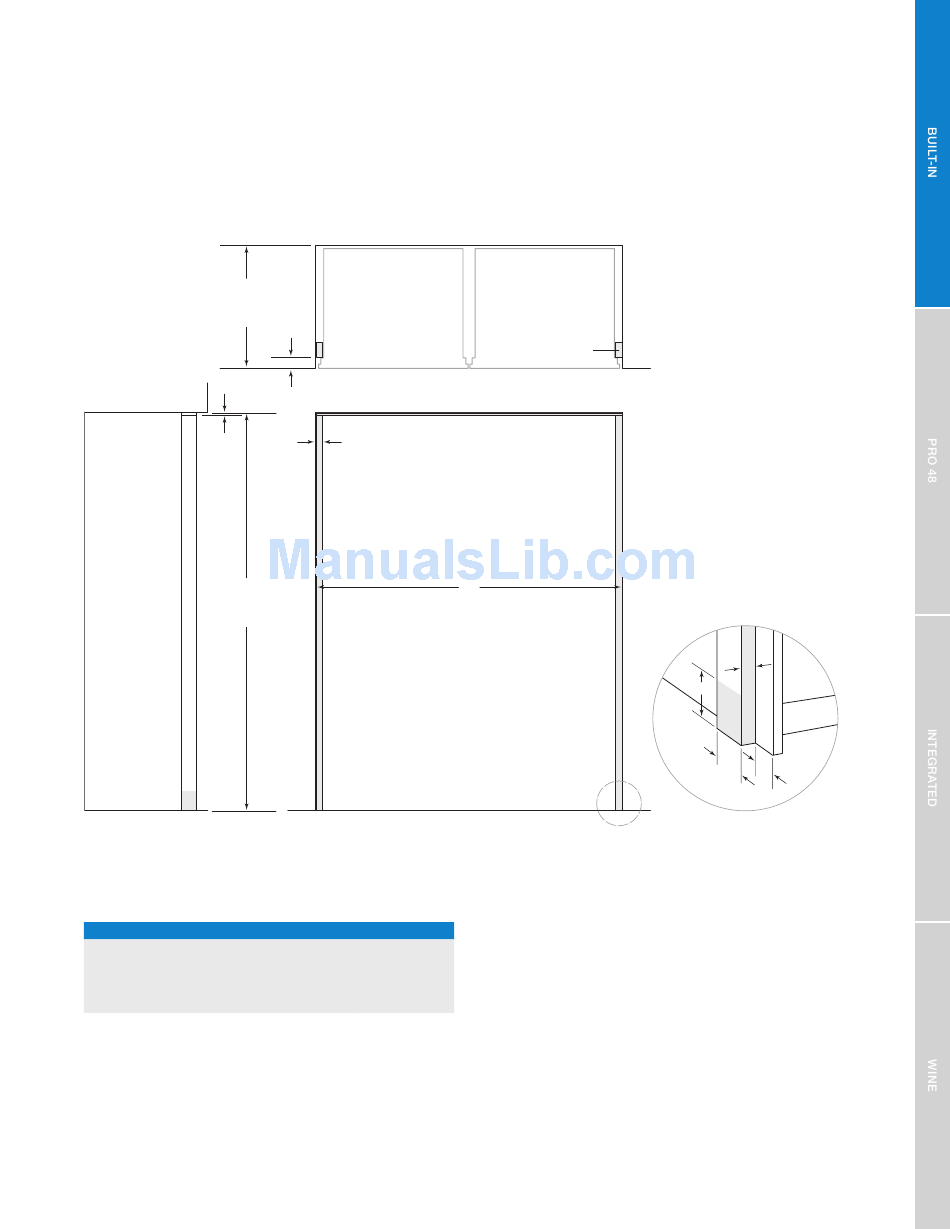

Opening Dimensions
DUAL FLUSH INSET INSTALLATION
665 mm
FLUSH
INSET
DEPTH
6 mm
2134 mm
FLUSH
INSET
HEIGHT
SIDE VIEW
*76 mm typical depth. Shaded areas will be visible and should be finished to match cabinetry.
NOTE: Shaded line represents profile of unit with 19 mm panel.
FLUSH INSET WIDTH
MODELS
Two 762 mm Models
762 mm Model and 914 mm Model
Two 914 mm Models
56
mm
TOP VIEW
32 mm
FLUSH INSET WIDTH
FRONT VIEW
W
1581 mm
1734 mm
1886 mm
FINISHED
CLEATS*
W
Dimensions assume a 19 mm panel thickness. A dual instal-
lation kit will be required for this installation.
32
mm
102 mm
76 56
mm
mm*
TYPICAL
|
